2 Advanced Menu | 13
A68N-5745 / A68N-5545 / A68N-5600

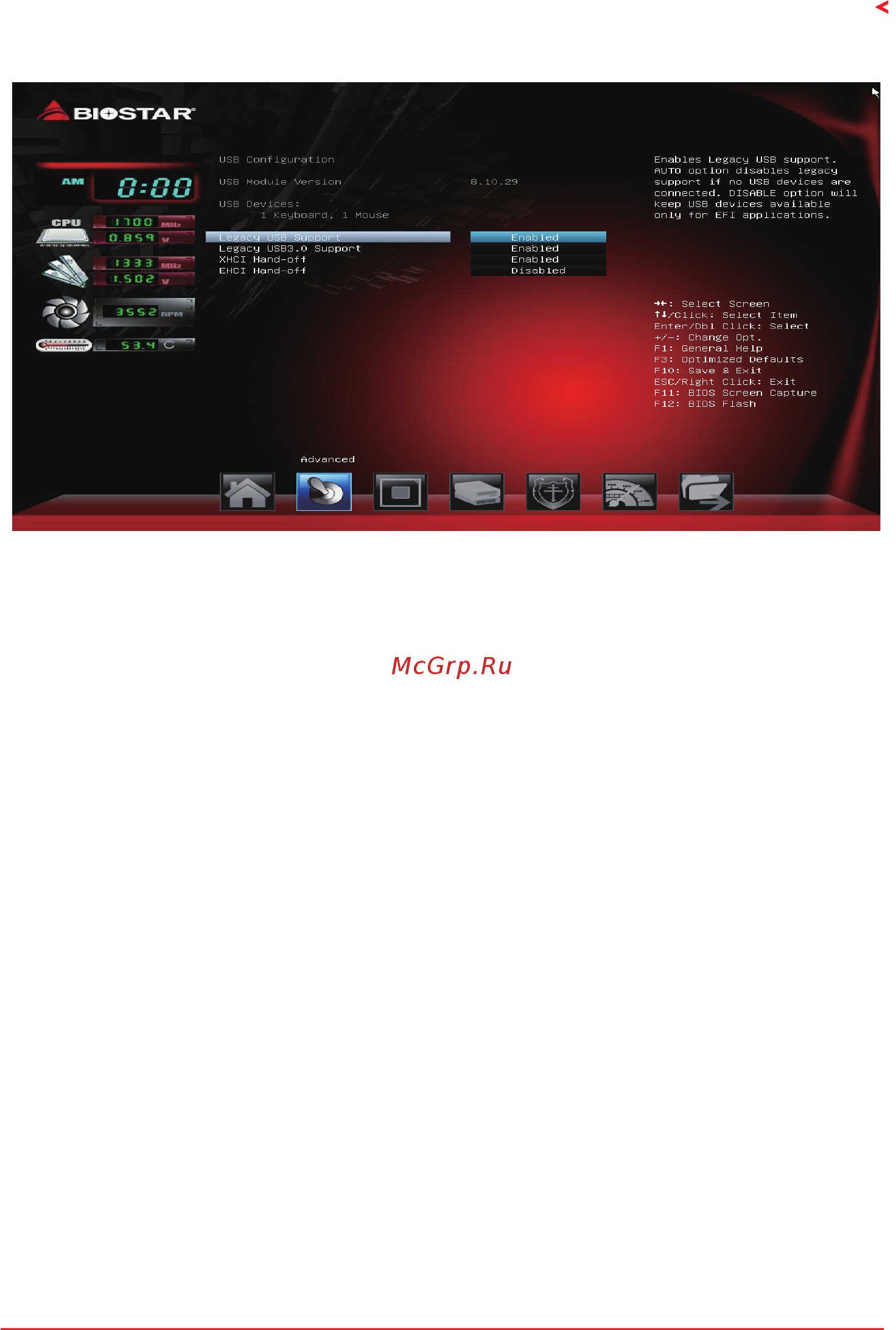

USB Configuration
Legacy USB Support
The item allows you to enable Legacy USB support. AUTO opon disables legacy support if no USB
devices are connected. DISABLE opon will keep USB devices available only for EFI applicaons.
Opons: Enabled (Default) / Disabled / Auto
Legacy USB3.0 Support
The item allows you to enable or disable Legacy USB3.0 (XHCI) Controller support.
Opons: Enabled (Default) / Disabled
XHCI Hand-O
This is a workaround for OSes without XHCI hand-o support. The XHCI ownership change should
be claimed by XHCI driver.
Opons: Enabled (Default) / Disabled
EHCI Hand-O
This is a workaround for OSes without EHCI hand-o support. The EHCI ownership change should
be claimed by EHCI driver.
Opons: Disabled (Default) / Enabled
