6 Performance Menu | 31

A68N-5745 / A68N-5545 / A68N-5600

PWM Core Load Line Control

This item allows you to set PWM Core Load Line Control

Opons: 0% (Default) / Disabled / -40% / -20% / +20% / +40% / +60% / +80%

PWM NB Load Line Control

This item allows you to set PWM NB Load Line Control

Opons: 0% (Default) / Disabled / -40% / -20% / +20% / +40% / +60% / +80%

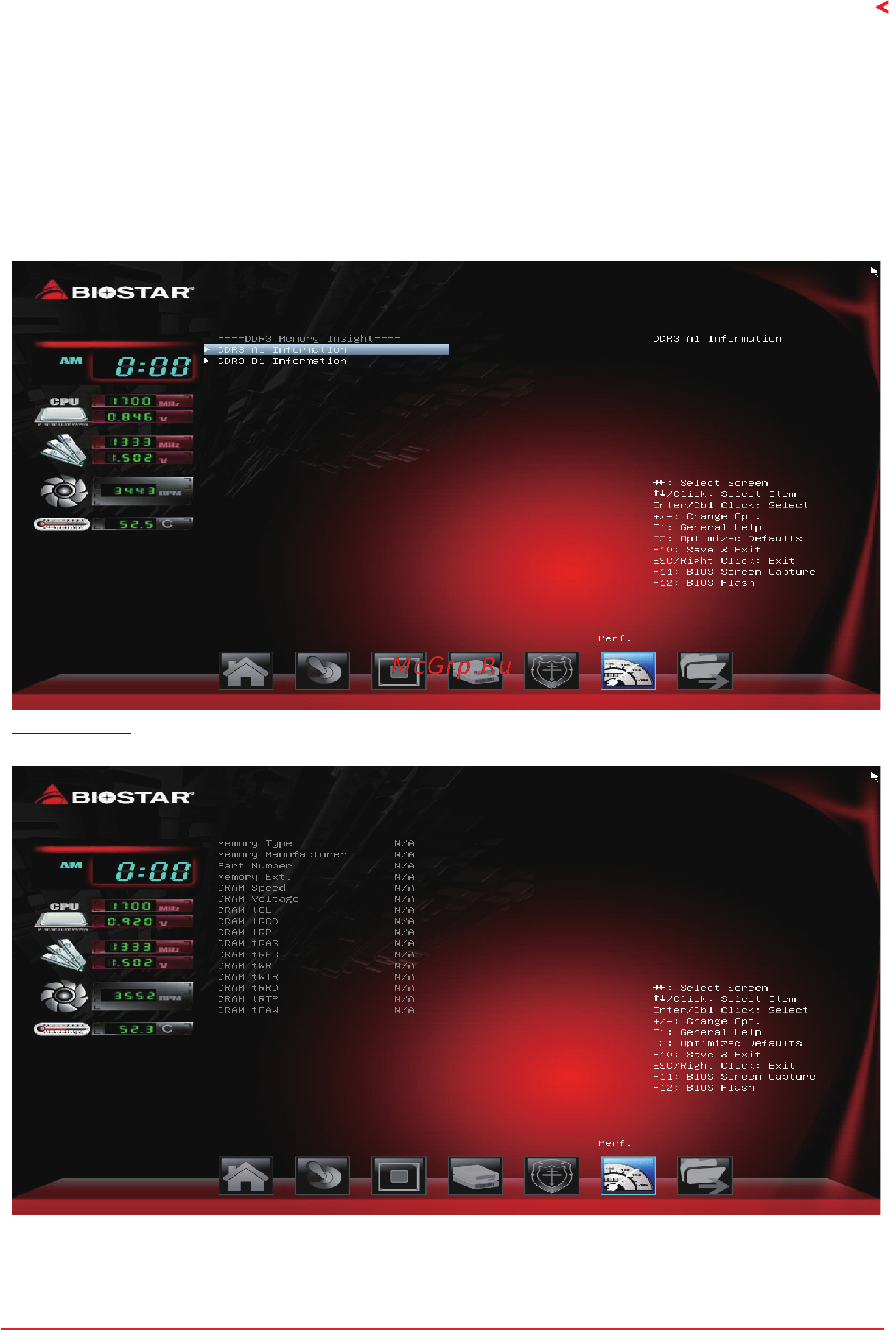

BIOSTAR Memory Insight

DDR3_A1/B1

These items display SPD informaon of DDR3 memory.
