4 Boot Menu | 25
A68N-5745 / A68N-5545 / A68N-5600

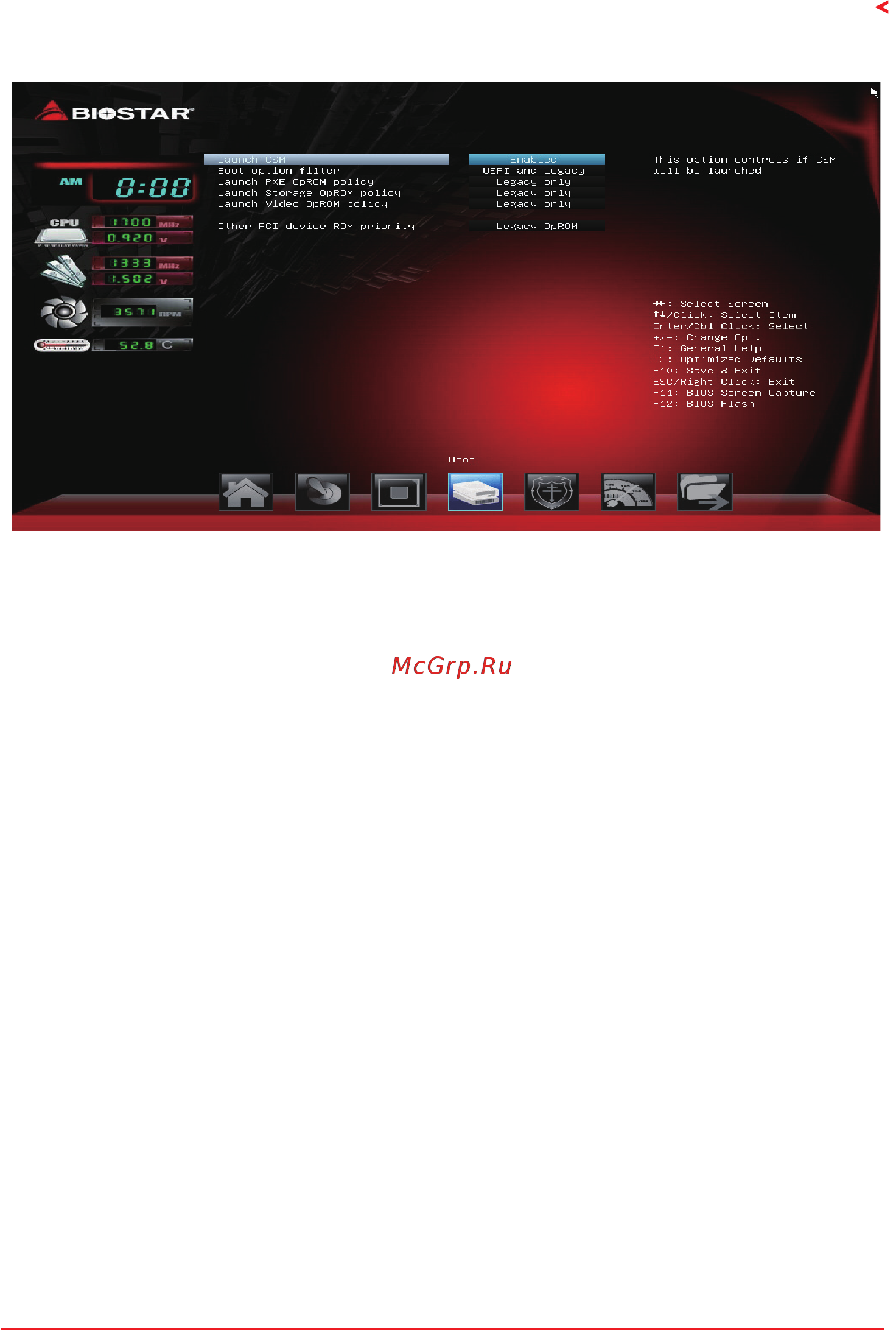

CSM parameters
Launch CSM
This opon controls if CSM will be launched.
Opons: Enabled (Default) / Disabled
Boot opon lter
This opon controls what devices system can boot to.
Opons: UEFI and Legacy (Default) / Legacy only / UEFI only
Launch PXE OpROM policy
This item controls the execuon of UEFI and Legacy PXE OpROM
Opons: Legacy only (Default) / UEFI only / Do not launch
Launch Storage OpROM policy
This item controls the execuon of UEFI and Legacy Storage OpROM
Opons: Legacy only (Default) / UEFI only / Do not launch
Launch Video OpROM policy
This item controls the execuon of UEFI and Legacy Video OpROM
Opons: Legacy only (Default) / UEFI only / Do not launch
Other PCI device ROM priority
For PCI devices other than Network, Mass storage or Video denes which OpROM to launch
Opons: Legacy OpROM (Default) / UEFI OpROM
