UEFI BIOS Setup | 5

A68N-5745 / A68N-5545 / A68N-5600

6. Aer the BIOS Update process is nished, click

on “OK” to reboot the system.

7. While the system boots up and the full screen logo shows up, press <DEL> key to enter BIOS

setup.

Aer entering the BIOS setup, please go to the <Save & Exit>, using the <Restore Defaults>

funcon to load Opmized Defaults, and select <Save Changes and Reset> to restart the

computer. Then, the BIOS Update is completed.

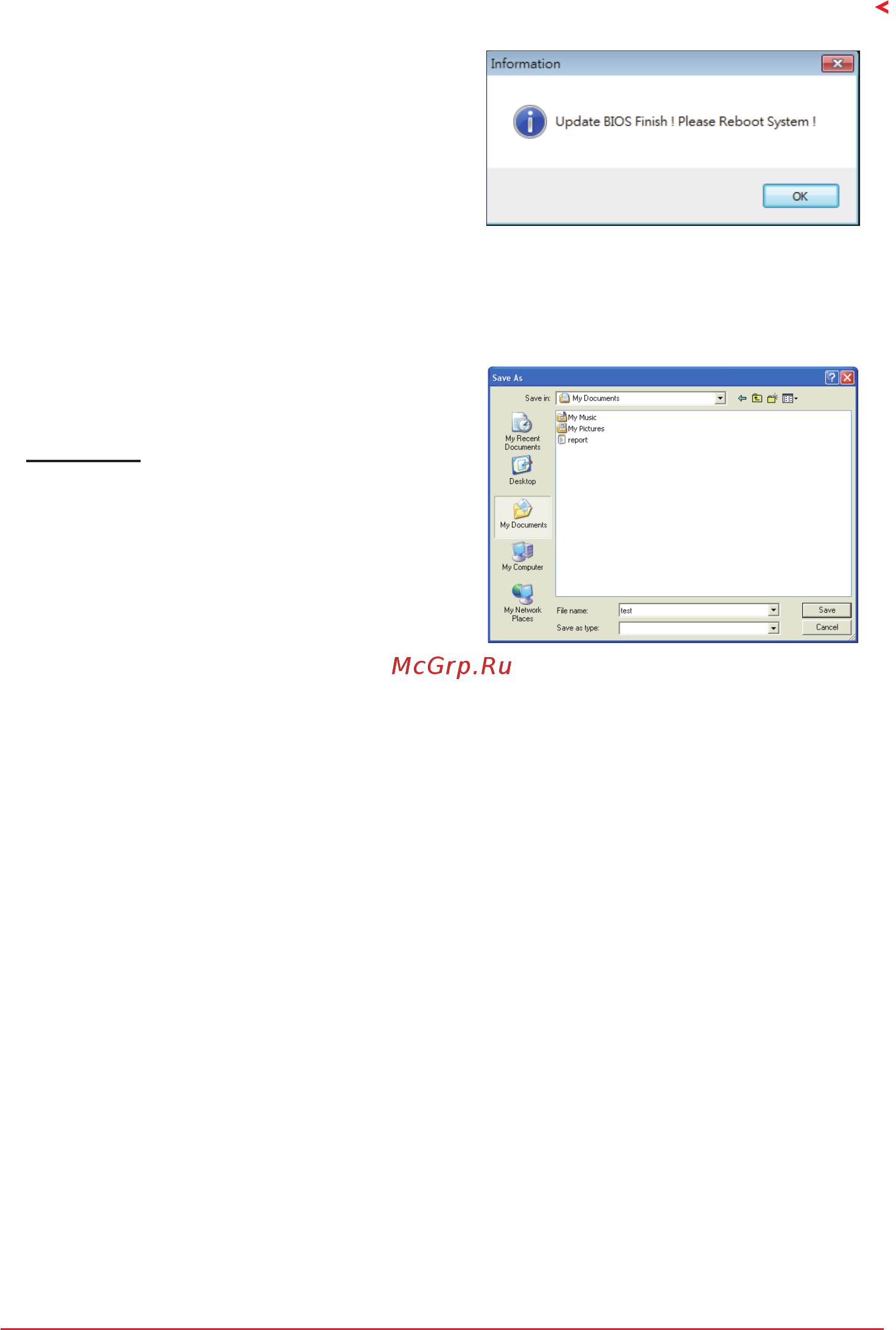

Backup BIOS

Click the Backup BIOS buon on the main screen

for the backup of BIOS, and select a proper

locaon for your backup BIOS le in the system,

and click “Save”.
