Инструкция по эксплуатации Страница: 10

Planet ISW-802M [10/60] Led indications

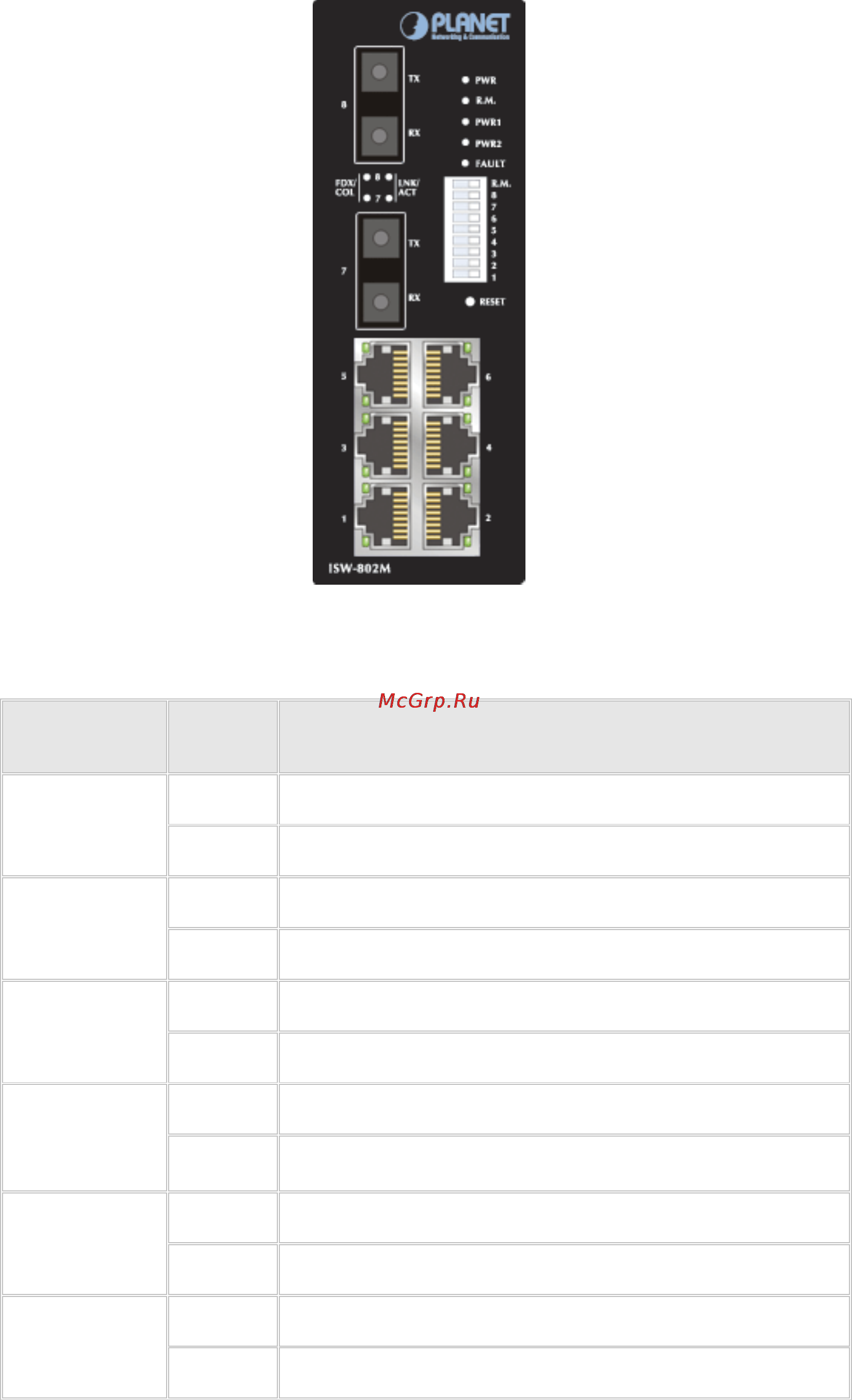

Figure 2-1 ISW-802M Front Panel

2.1.3 LED Indications

LED Status Meaning

Green The switch unit is power on.

Power

Off The switch unit is no power input.

Green Power on

Power 1

Off No power inputs

Green Power on

Power 2

Off No power inputs

Yellow Power failure or UTP port failure or Fiber port failure

Fault

Off No Power failure or UTP port failure or Fiber port failure occurs

Green The industrial switch is the master of redundant ring group.

R. M.

(Ring Master)

Off The industrial switch is not a ring master in redundant ring group.

Green The port is linking.

LNK/ACT

(Port 7 & 8)

Blinks The port is transmitting or receiving packets from the TX device.
