Planet ISW-802M [53/60] Save configuration
![Planet ISW-802M [53/60] Save configuration](/views2/1071785/page53/bg35.png)

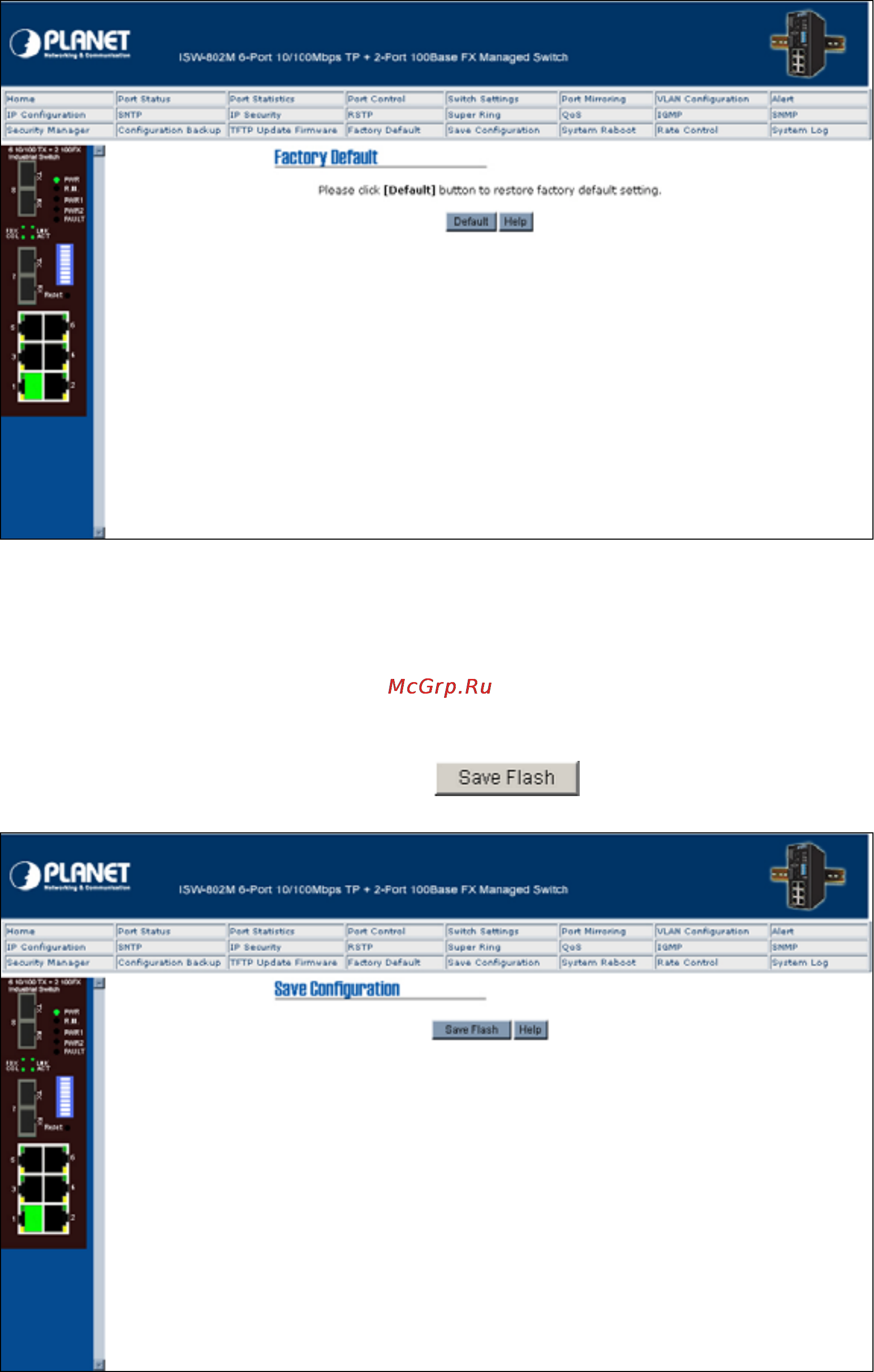

Factory Default interface
4.23 Save Configuration
Save the industrial switch configuration to the flash memory. Power off the industrial switch without the
saving, all changed configuration will lost. Click the
button the save the configuration.
Save Configuration interface
