Planet ISW-802M [49/60] Security manager
![Planet ISW-802M [49/60] Security manager](/views2/1071785/page49/bg31.png)

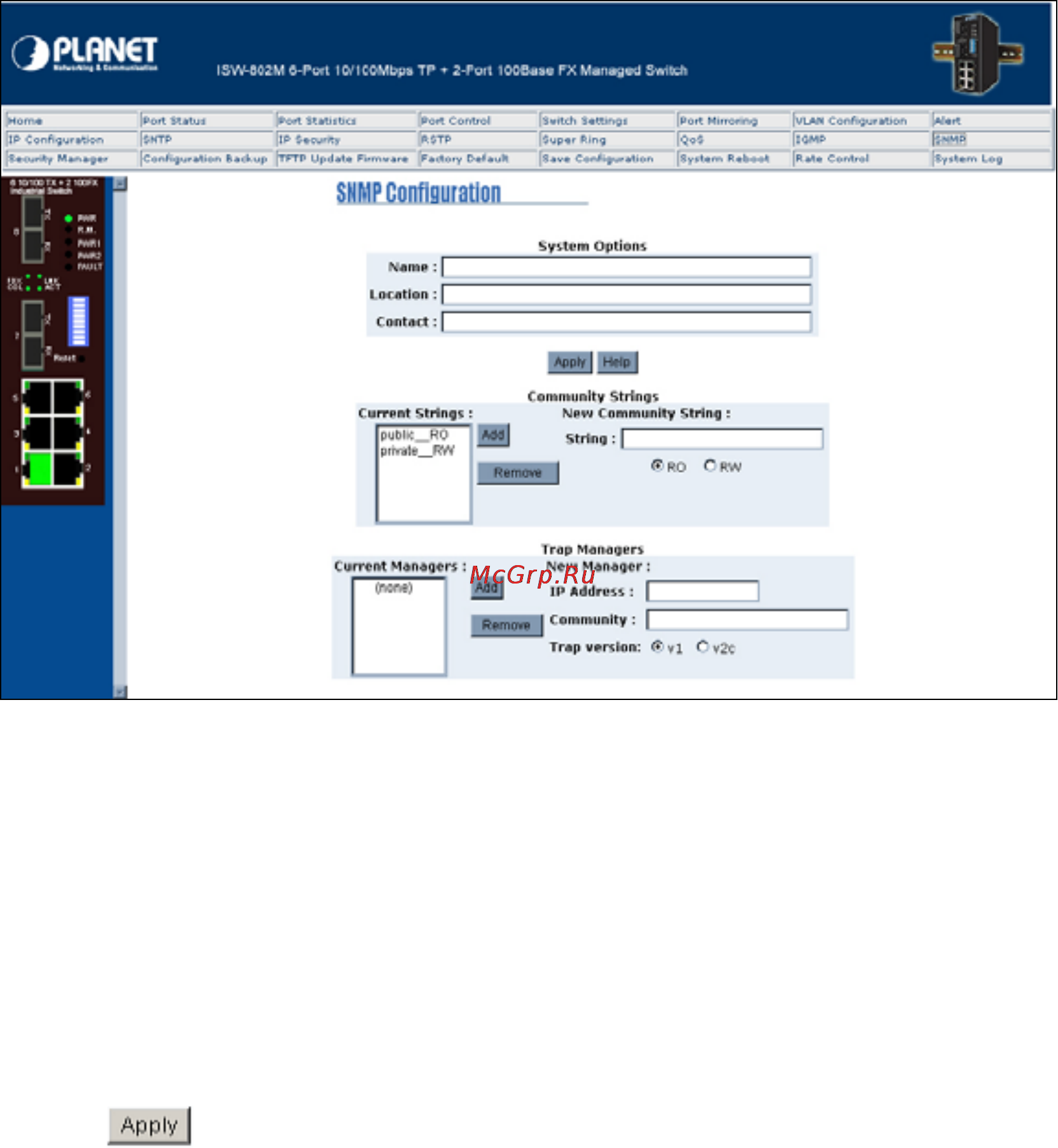

SNMP Management interface
4.20 Security Manager
You can change web management login user name and password for the management security issue.
1. User name: type the new user name. The default is "root".
2. Password: type the new password. The default is "root".
3. Confirm password: retype the new password.
4. Click
.
[NOTE] Remember to execute the "Save Configuration" action, otherwise the new configuration will lose
when the switch power off.
