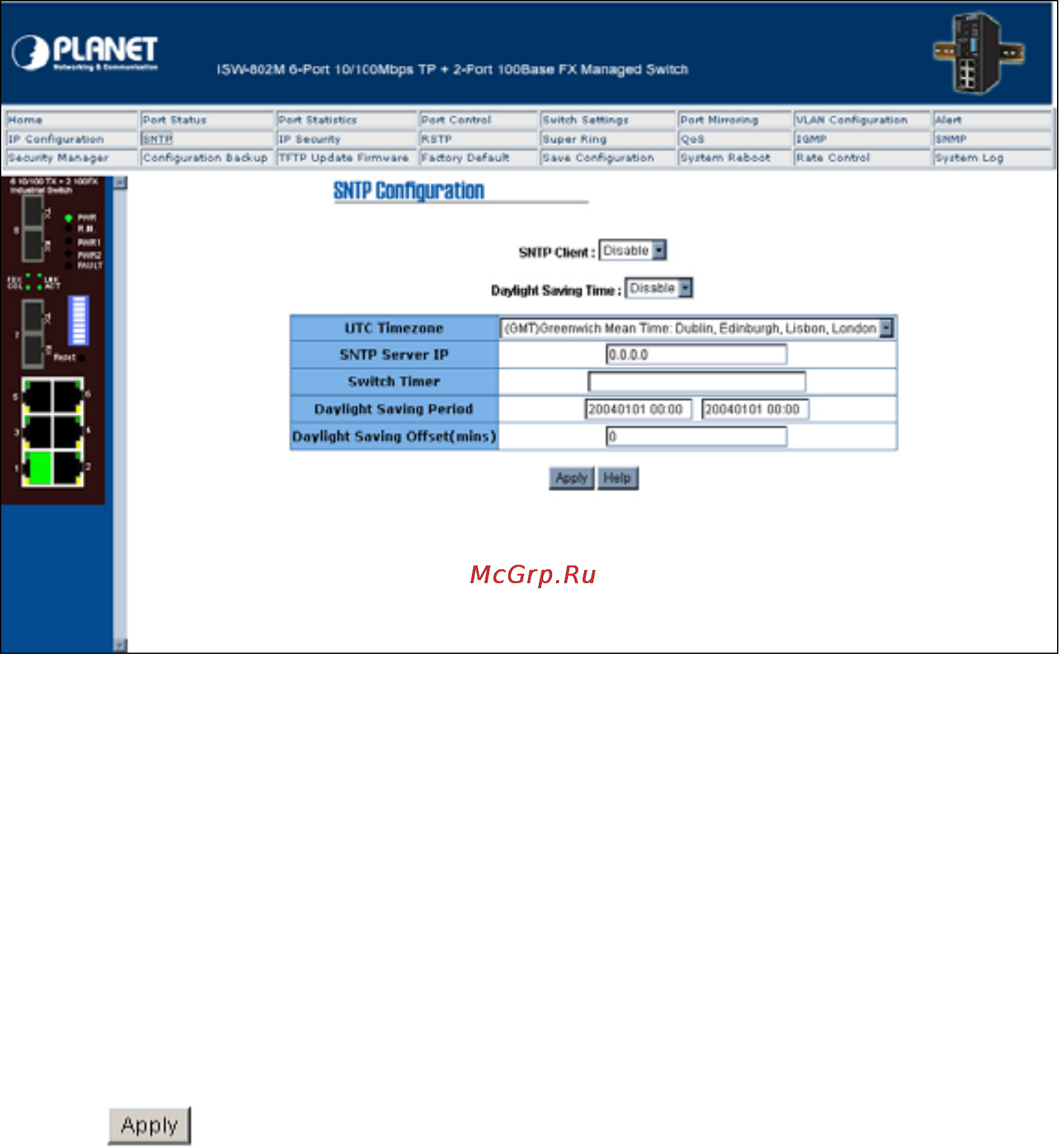

SNTP Configuration

4.14 IP Security

IP security function allows you to assign 10 specific IP addresses that have permission to access the

switch through the web browser for the securing switch management.

1. Enable the IP Security: mark the check box to enable the IP security function.

2. Security IP 1 ~ 10: you can assign up to 4 specific IP address. Only these 4 IP address can access

and manage the switch through the Web browser.

3. Click

button to apply the configuration.

[NOTE] Remember to execute the "Save Configuration" action, otherwise the new configuration will lose

when the switch power off.
