Planet ISW-802M [28/60] Port based vlan

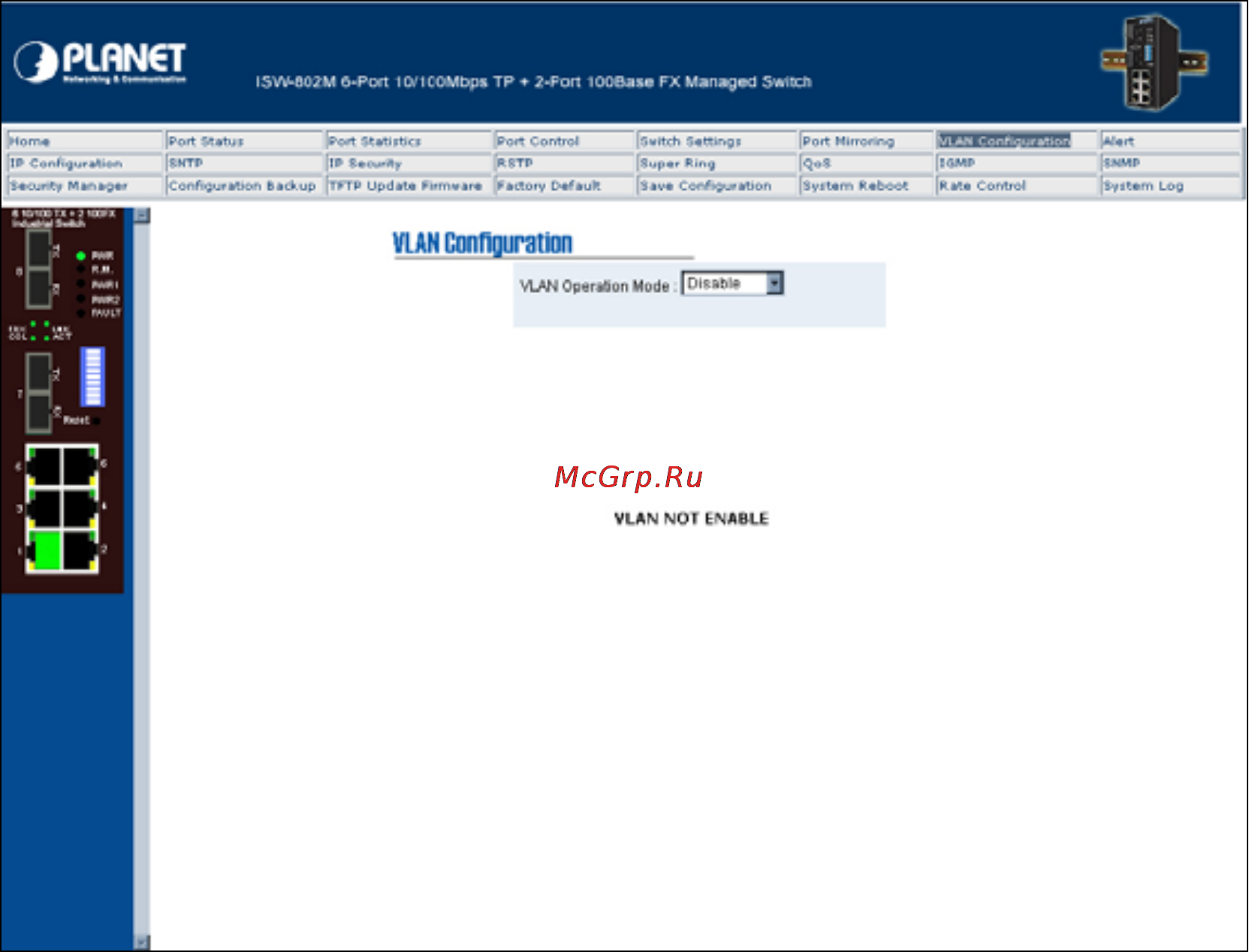

VLAN Configuration interface

4.10.1 Port-based VLAN

Packets can go among only members of the same VLAN group. Note all unselected ports are treated as

belonging to another single VLAN. If the port-based VLAN enabled, the VLAN-tagging is ignored.

In order for an end station to send packets to different VLANs, it itself has to be either capable of tagging

packets it sends with VLAN tags or attached to a VLAN-aware bridge that is capable of classifying and

tagging the packet with different VLAN ID based on not only default PVID but also other information

about the packet, such as the protocol.
