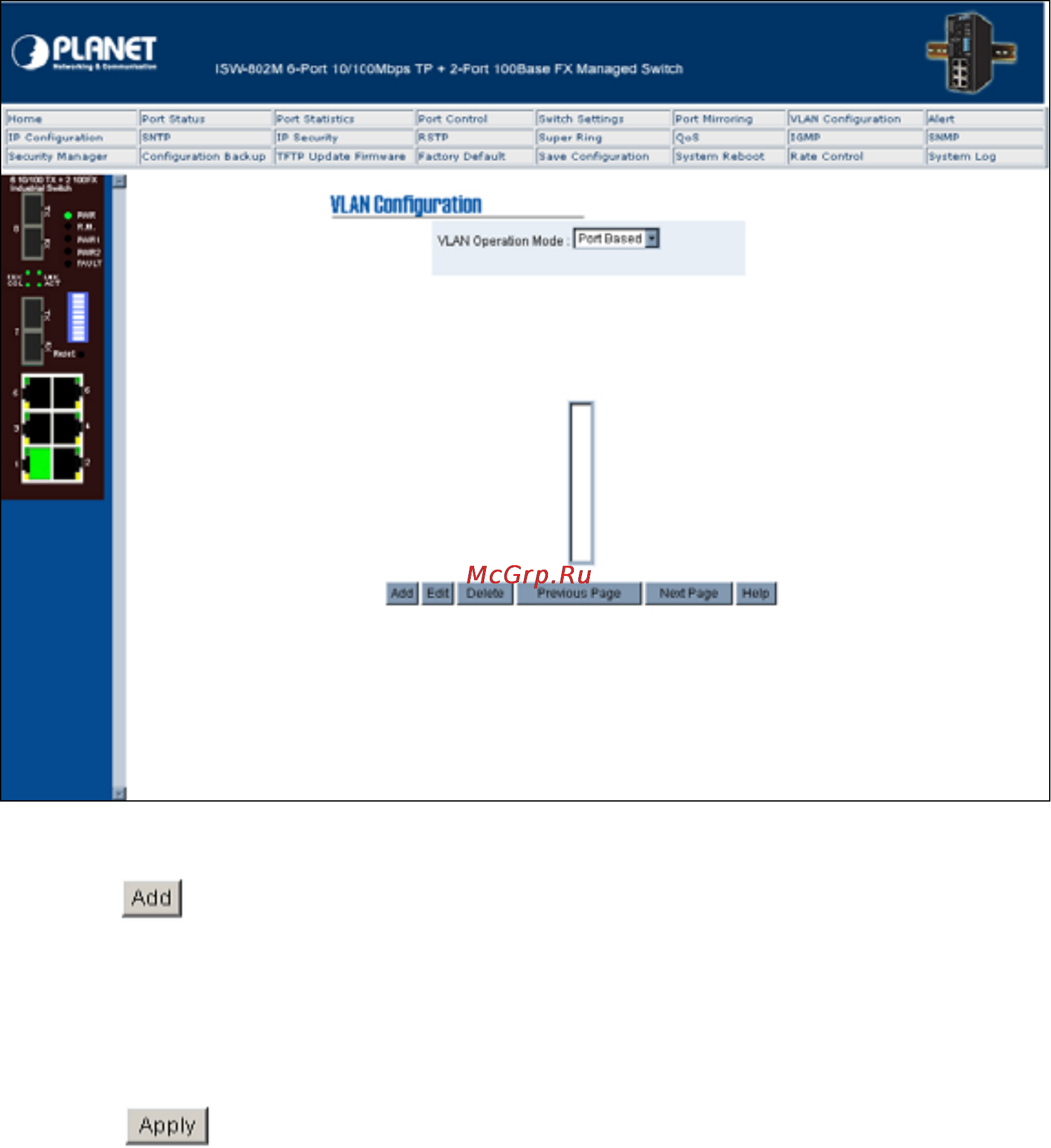

VLAN – Port-based interface
1. Click
to add a new VLAN group. The maximum VLAN group is up to 64 VLAN groups.
2. Group Name: assign the VLAN group name, ex: VLAN001.
3. VLAN ID: assign the VLAN ID (between 1 and 4094).
4. Select the members of VLAN group.
5. Click
.
