Planet ISW-802M [47/60] Snmp configuration
![Planet ISW-802M [47/60] Snmp configuration](/views2/1071785/page47/bg2f.png)
Message Description
Query
A message sent from the querier (IGMP router or switch) asking for a response
from each host belonging to the multicast group.
Report
A message sent by a host to the querier to indicate that the host wants to be or
is a member of a given group indicated in the report message.
Leave Group
A message sent by a host to the querier to indicate that the host has quit to be a
member of a specific multicast group.
You can enable IGMP protocol and IGMP Query function in here. You will see the IGMP snooping
information in this section -- difference multicast group VID and member port, and IP multicast addresses
range from 224.0.0.0 through 239.255.255.255.
[NOTE] Remember to execute the "Save Configuration" action, otherwise the new configuration will lose
when the switch power off.

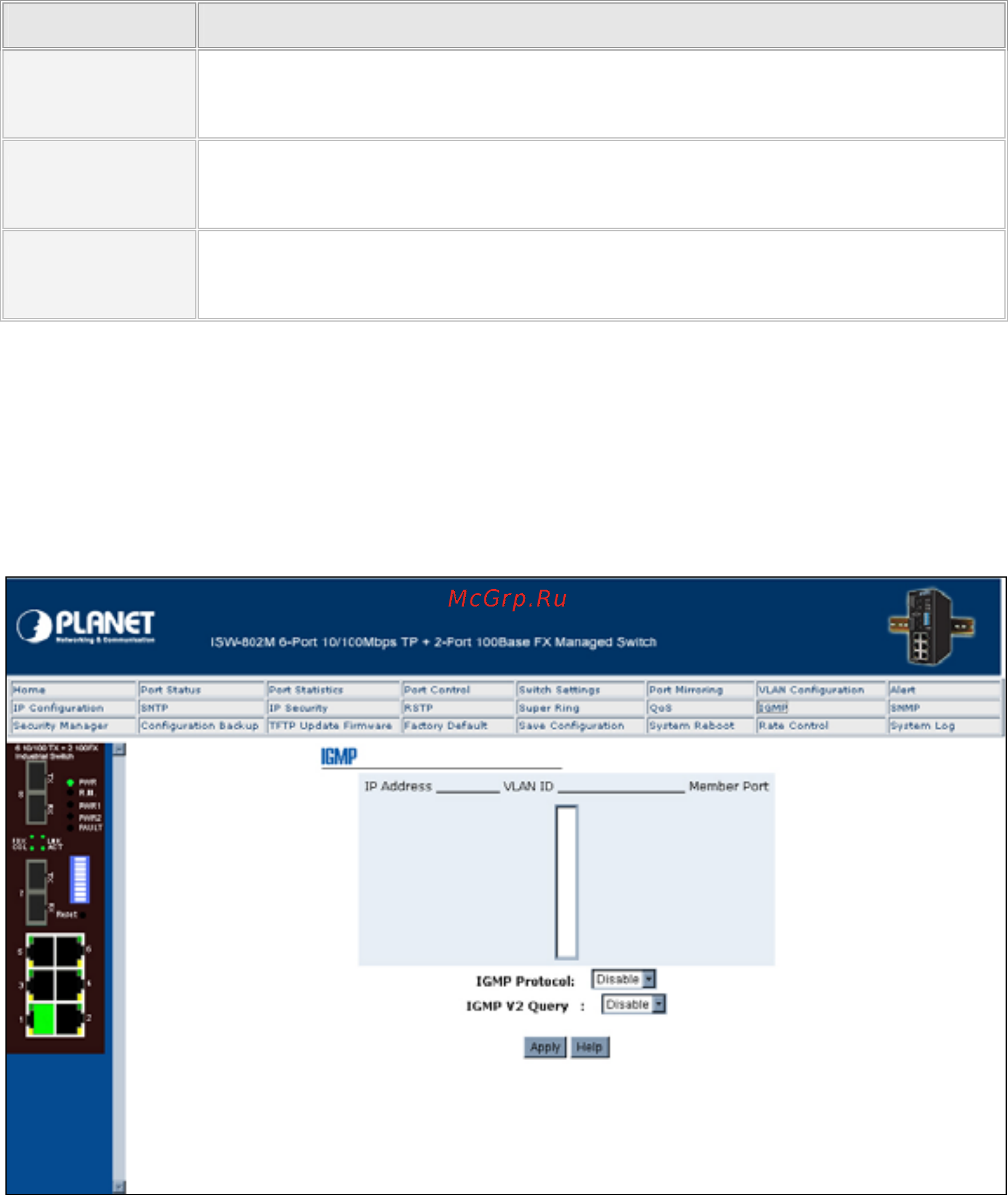

IGMP Snooping interface
4.19 SNMP Configuration
The SNMP is a Protocol that governs the transfer of information between management and agent. The
switch supports SNMP V1.
You can define management stations as trap managers and to enter SNMP community strings. You also
can define a name, location, and contact person for the switch. Fill in the system options data, and then
click Apply to update the
