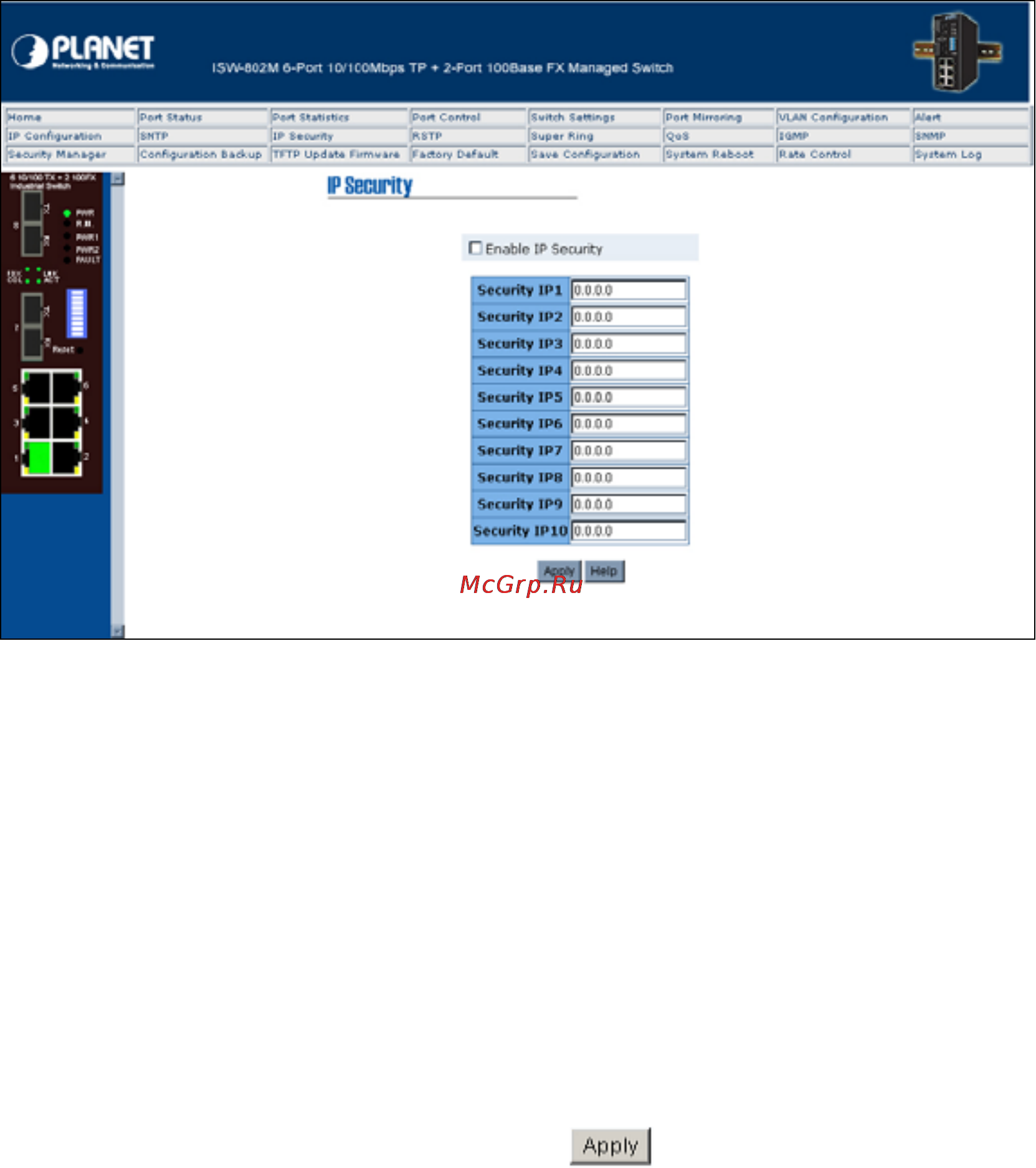

IP Security interface

4.15 RSTP Configuration

The Rapid Spanning Tree Protocol (RSTP) is an evolution of the Spanning Tree Protocol and provides for

faster spanning tree convergence after a topology change. The system also supports STP and the

system will auto detect the connected device that is running STP or RSTP protocol.

4.15.1 System Configuration

1. You can view spanning tree information about the Root Bridge.

2. You can modify RSTP state. After modification, click

button.

■ RSTP mode: you must enable or disable RSTP function before configure the related

parameters.

■ Priority (0-61440): a value used to identify the root bridge. The bridge with the lowest value

has the highest priority and is selected as the root. If you change the value, you must reboot

the switch assign path priority number. The value must be multiple of 4096 according to the

protocol standard rule.

■ Max Age (6-40): the number of seconds a bridge waits without receiving Spanning-tree

Protocol configuration messages before attempting a reconfiguration. Enter a value between 6

through 40.

■ Hello Time (1-10): the time that controls switch sends out the BPDU packet to check RSTP

current status. Enter a value between 1 through 10.
