Planet ISW-802M [20/60] Dual homing application

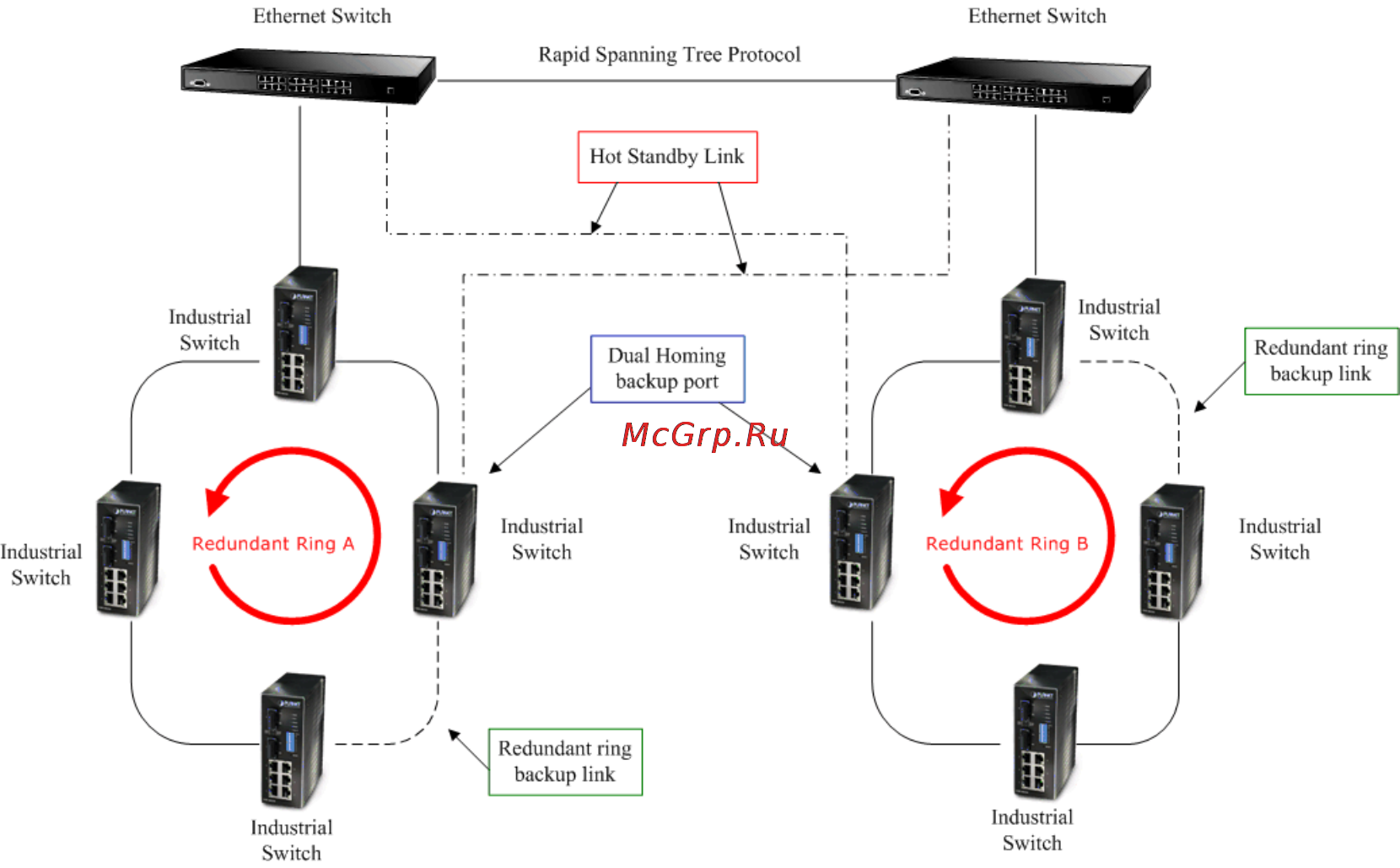

3.5 Dual Homing Application

Dual Homing function is to prevent the connection lose between redundant ring group and upper

level/core switch. Assign two ports to be the Dual Homing ports that one is working port and one is

backup port in the redundant ring group. The backup port that has smaller MAC address value will be

selected by switch automatically. The Dual Homing function only work when the redundant ring function

is active. The maximum Dual Homing port is two in a redundant ring group. And each switch only can

assign one Dual Homing port.
