Planet ISW-802M Инструкция по эксплуатации онлайн [16/60] 66291
![Planet ISW-802M Инструкция по эксплуатации онлайн [16/60] 66291](/views2/1071785/page16/bg10.png)

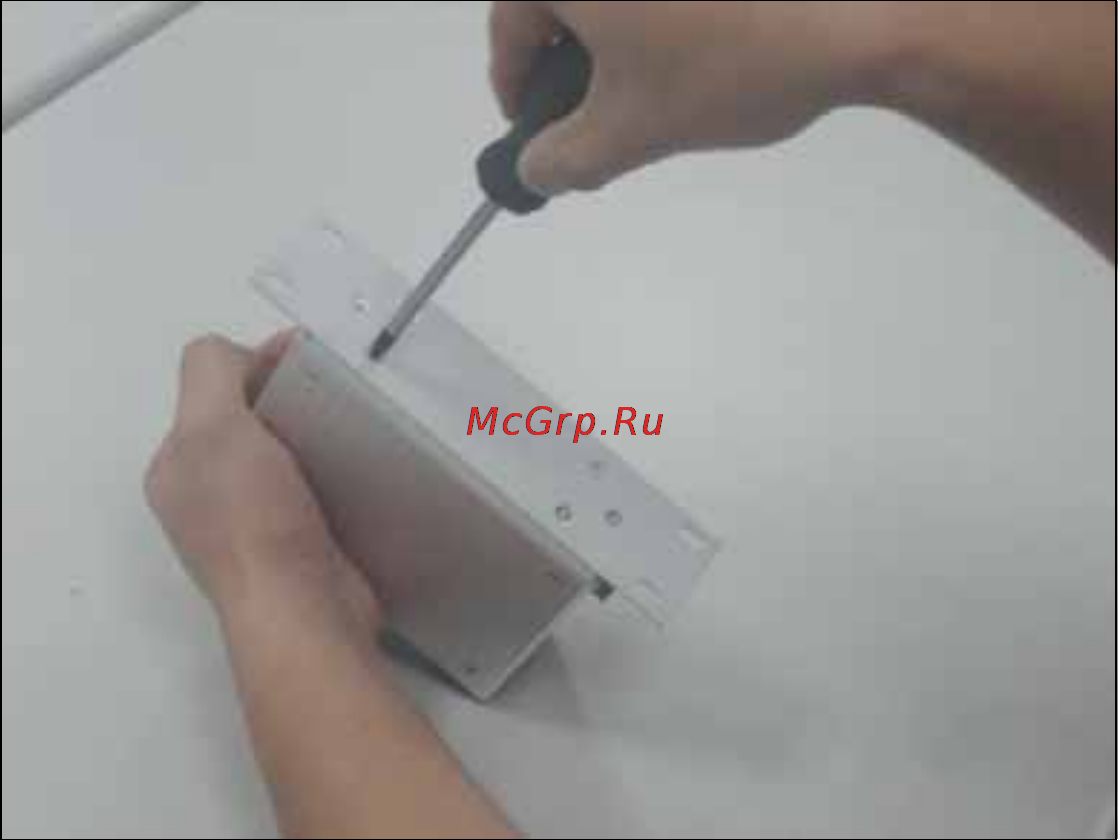

Step3: Use the screws to screw the wall mount plate on the industrial switch.
Step4: Use the hook holes at the corners of the wall mount plate to hang the industrial switch on the wall.
Step5: To remove the wall mount plate, reverse steps above.
