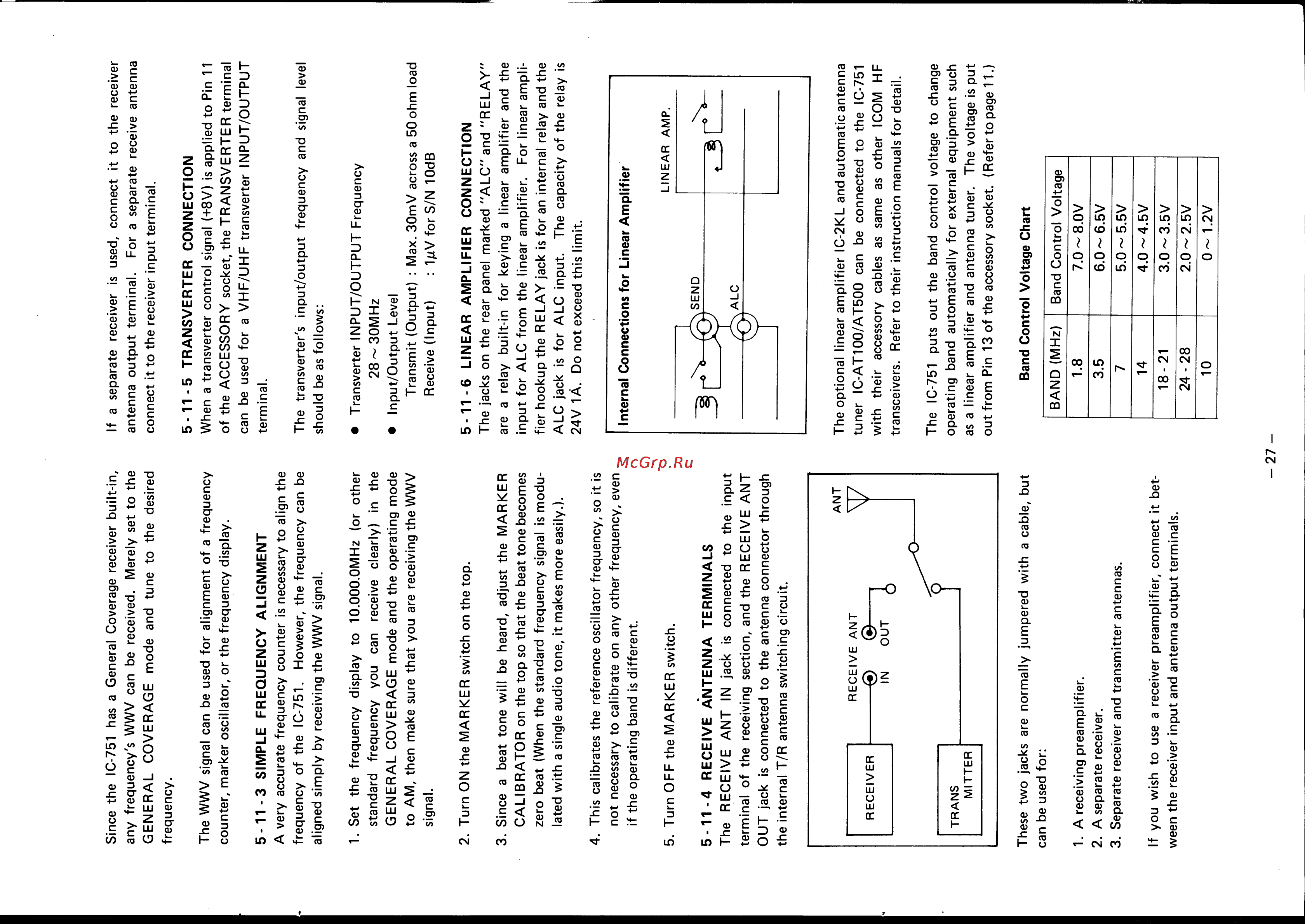

Since the IC 751 has a General Coverage receiver built in any frequency s WWV can be received Merely set to the GENERAL COVERAGE mode and tune to the desired frequency If a separate receiver is used connect it to the receiver antenna output terminal For a separate receive antenna connect it to the receiver input terminal 5 11 5 TRANSVERTER CONNECTION When a transverter control signal 8V is applied to Pin 11 of the ACCESSORY socket the TRANSVERTER terminal can be used for a VHF UHF transverter INPUT OUTPUT terminal The WWV signal can be used for alignment of a frequency counter marker oscillator or the frequency display 5 11 3 SIMPLE FREQUENCY ALIGNMENT A very accurate frequency counter is necessary to align the frequency of the IC 751 However the frequency can be aligned simply by receiving the WWV signal The transverter s input output frequency and signal level should be as follows 1 Set the frequency display to 10 000 0MHz or other standard frequency you can receive clearly in the GENERAL COVERAGE mode and the operating mode to AM then make sure that you are receiving the WWV signal Transverter INPUT OUTPUT Frequency 28 30MHz Input Output Level Transmit Output Max 30mV across a 50 ohm load Receive Input 1 juV for S N 10dB 2 Turn ON the MARKER switch on the top 5 11 6 LINEAR AMPLIFIER CONNECTION The jacks on the rear panel marked ALC and RELAY are a relay built in for keying a linear amplifier and the input for ALC from the linear amplifier For linear ampli fier hookup the RELAY jack is for an internal relay and the ALC jack is for ALC input The capacity of the relay is 24V 1 A Do not exceed this limit 3 Since a beat tone will be heard adjust the MARKER CALIBRATOR on the top so that the beat tone becomes zero beat When the standard frequency signal is modu lated with a single audio tone it makes more easily 4 This calibrates the reference oscillator frequency so it is not necessary to calibrate on any other frequency even if the operating band is different 5 Turn OFF the MARKER switch 5 11 4 RECEIVE ANTENNA TERMINALS The RECEIVE ANT IN jack is connected to the input terminal of the receiving section and the RECEIVE ANT OUT jack is connected to the antenna connector through the internal T R antenna switching circuit The optional linear amplifier IC 2KL and automatic antenna tuner IC AT100 AT500 can be connected to the IC 751 with their accessory cables as same as other ICOM HF transceivers Refer to their instruction manuals for detail The IC 751 puts out the band control voltage to change operating band automatically for external equipment such as a linear amplifier and antenna tuner The voltage is put out from Pin 13 of the accessory socket Refer to page 11 These two jacks are normally jumpered with a cable but can be used for Band Control Voltage Chart 1 A receiving preamplifier 2 A separate receiver 3 Separate receiver and transmitter antennas BAND MHz Band Control Voltage 1 8 7 0 8 0V 3 5 If you wish to use a receiver preamplifier connect it bet ween the receiver input and antenna output terminals 5 0 5 5V 14 4 0 4 5V 18 21 3 0 3 5V 24 28 2 0 2 5V 10 27 6 0 6 5V 7 0 1 2V
