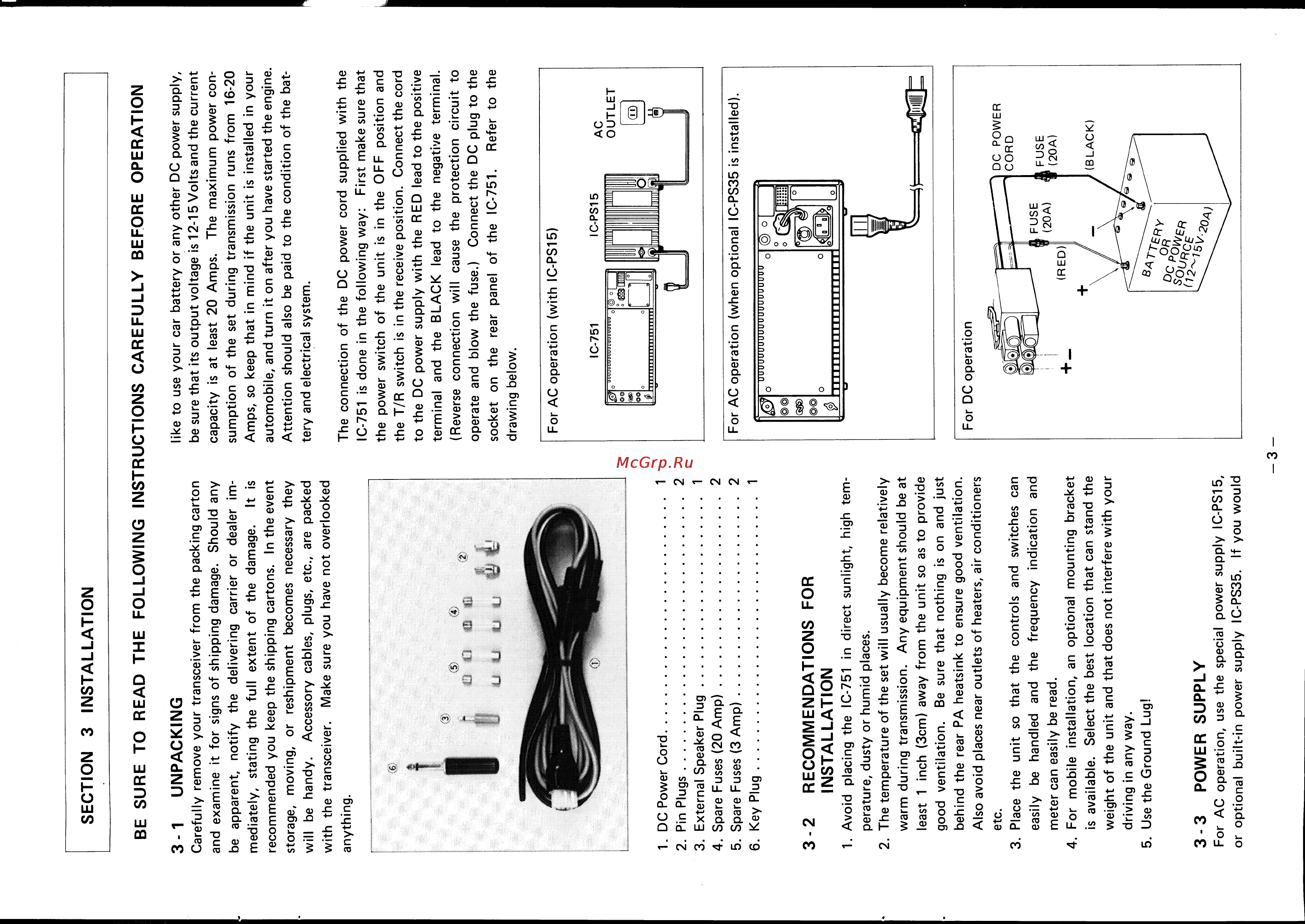

SECTION 3 INSTALLATION BE SURE TO READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE OPERATION like to use your car battery or any other DC power supply be sure that its output voltage is 12 15 Voltsand the current capacity is at least 20 Amps The maximum power con sumption of the set during transmission runs from 16 20 Amps so keep that in mind if the unit is installed in your automobile and turn it on after you have started the engine Attention should also be paid to the condition of the bat tery and electrical system 3 1 UNPACKING Carefully remove your transceiver from the packing carton and examine it for signs of shipping damage Should any be apparent notify the delivering carrier or dealer im mediately stating the full extent of the damage It is recommended you keep the shipping cartons In the event storage moving or reshipment becomes necessary they will be handy Accessory cables plugs etc are packed with the transceiver Make sure you have not overlooked The connection of the DC power cord supplied with the IC 751 is done in the following way First make sure that the power switch of the unit is in the OFF position and the T R switch is in the receive position Connect the cord to the DC power supply with the RED lead to the positive terminal and the BLACK lead to the negative terminal Reverse connection will cause the protection circuit to operate and blow the fuse Connect the DC plug to the socket on the rear panel of the IC 751 Refer to the drawing below anything 1 DC Power Cord 1 2 Pin Plugs 2 3 External Speaker Plug 1 4 Spare Fuses 20 Amp 2 5 Spare Fuses 3 Amp 2 6 Key Plug 1 3 2 RECOMMENDATIONS FOR INSTALLATION 1 Avoid placing the IC 751 in direct sunlight high tem perature dusty or humid places 2 The temperature of the set will usually become relatively warm during transmission Any equipment should be at least 1 inch 3cm away from the unit so as to provide good ventilation Be sure that nothing is on and just behind the rear PA heatsink to ensure good ventilation Also avoid places near outlets of heaters air conditioners etc 3 Place the unit so that the controls and switches can easily be handled and the frequency indication and meter can easily be read 4 For mobile installation an optional mounting bracket is available Select the best location that can stand the weight of the unit and that does not interfere with your driving in any way 5 Use the Ground Lug 3 3 POWER SUPPLY For AC operation use the special power supply IC PS15 or optional built in power supply IC PS35 If you would 3
