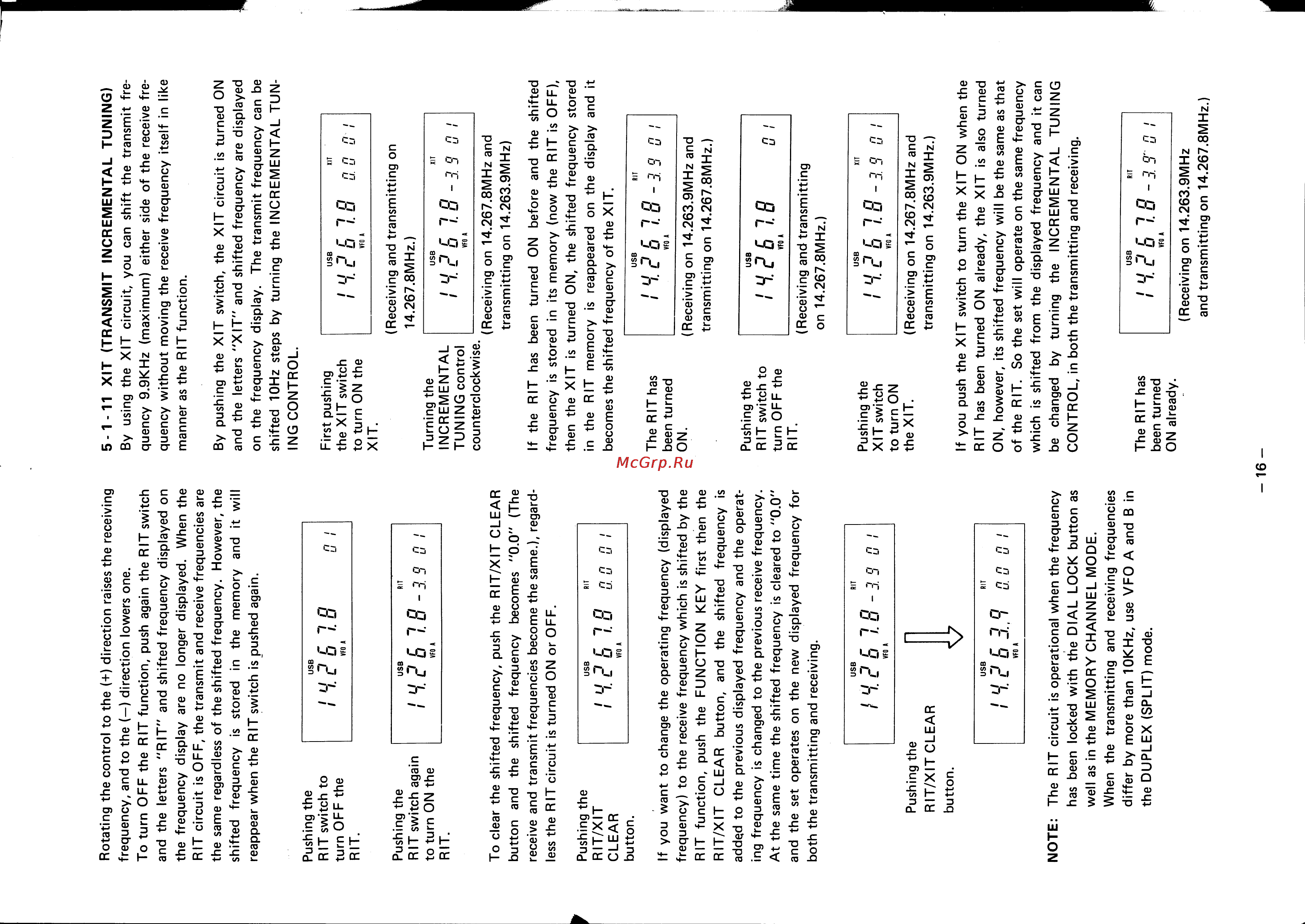

Rotating the control to the direction raises the receiving frequency and to the direction lowers one To turn OFF the RIT function push again the RIT switch and the letters RIT and shifted frequency displayed on the frequency display are no longer displayed When the RIT circuit is OFF the transmit and receive frequencies are the same regardless of the shifted frequency However the shifted frequency is stored in the memory and it will reappear when the RIT switch is pushed again Pushing the RIT switch to turn OFF the RIT 5 1 11 XIT TRANSMIT INCREMENTAL TUNING By using the XIT circuit you can shift the transmit fre quency 9 9KHz maximum either side of the receive fre quency without moving the receive frequency itself in like manner as the RIT function By pushing the XIT switch the XIT circuit is turned ON and the letters XIT and shifted frequency are displayed on the frequency display The transmit frequency can be shifted 10Hz steps by turning the INCREMENTAL TUN ING CONTROL USB 1 UJCTÜ 1 L LI 1 LI First pushing the XIT switch to turn ON the XIT ri 1 LI 1 VFO A l L 6 T a n LI 1 LI n LI ri 1 LI 1 VFO A Receiving and transmitting on 14 267 8MHz Pushing the RIT switch again to turn ON the RIT Turning the INCREMENTAL TUNING control counterclockwise To clear the shifted frequency push the RIT XIT CLEAR button and the shifted frequency becomes 0 0 The receive and transmit frequencies become the same regard less the RIT circuit is turned ON or OFF Pushing the RIT XIT CLEAR button XIT USB USB U I LI ri n u u n u XIT TO 1 LI _ J ci Cl LI J J 1 1 WO A Receiving on 14 267 8MHz and transmitting on 14 263 9MHz If the RIT has been turned ON before and the shifted frequency is stored in its memory now the RIT is OFF then the XIT is turned ON the shifted frequency stored in the RIT memory is reappeared on the display and it becomes the shifted frequency of the XIT RIT I UJL I I L LI USB 1UJC 1 I LU i i VFO A USB The RIT has been turned If you want to change the operating frequency displayed frequency to the receive frequency which is shifted by the RIT function push the FUNCTION KEY first then the RIT XIT CLEAR button and the shifted frequency is added to the previous displayed frequency and the operat ing frequency is changed to the previous receive frequency At the same time the shifted frequency is cleared to 0 0 and the set operates on the new displayed frequency for both the transmitting and receiving Pushing the RIT switch to turn OFF the RIT Pushing the RIT XIT CLEAR button n 7 1 I LI n n 1 LI LI ci LI i 1 VFO A USB 1 Wb 1 8 o i VFO A Receiving and transmitting on 14 267 8MHz USB XIT O 1 U J C l i i L o i a J 3 u inn VFO A Receiving on 14 267 8MHz and transmitting on 14 263 9MHz If you push the XIT switch to turn the XIT ON when the RIT has been turned ON already the XIT is also turned ON however its shifted frequency will be the same as that of the RIT So the set will operate on the same frequency which is shifted from the displayed frequency and it can be changed by turning the INCREMENTAL TUNING CONTROL in both the transmitting and receiving RIT I h I L LI Zi Ü J J Receiving on 14 263 9MHz and transmitting on 14 267 8MHz Pushing the XIT switch to turn ON the XIT USB RIT U3C1n I 1 C Ci 1 0 I VFO A NOTE The RIT circuit is operational when the frequency has been locked with the DIAL LOCK button as well as in the MEMORY CHANNEL MODE When the transmitting and receiving frequencies differ by more than 10KHz use VFO A and B in the DUPLEX SPLIT mode USB The RIT has been turned ON already RIT 18 8 6 18 19 s VFO A Receiving on 14 263 9MHz and transmitting on 14 267 8MHz 16
