ASUS RS720-E9-RS8/RS8-G
1-3

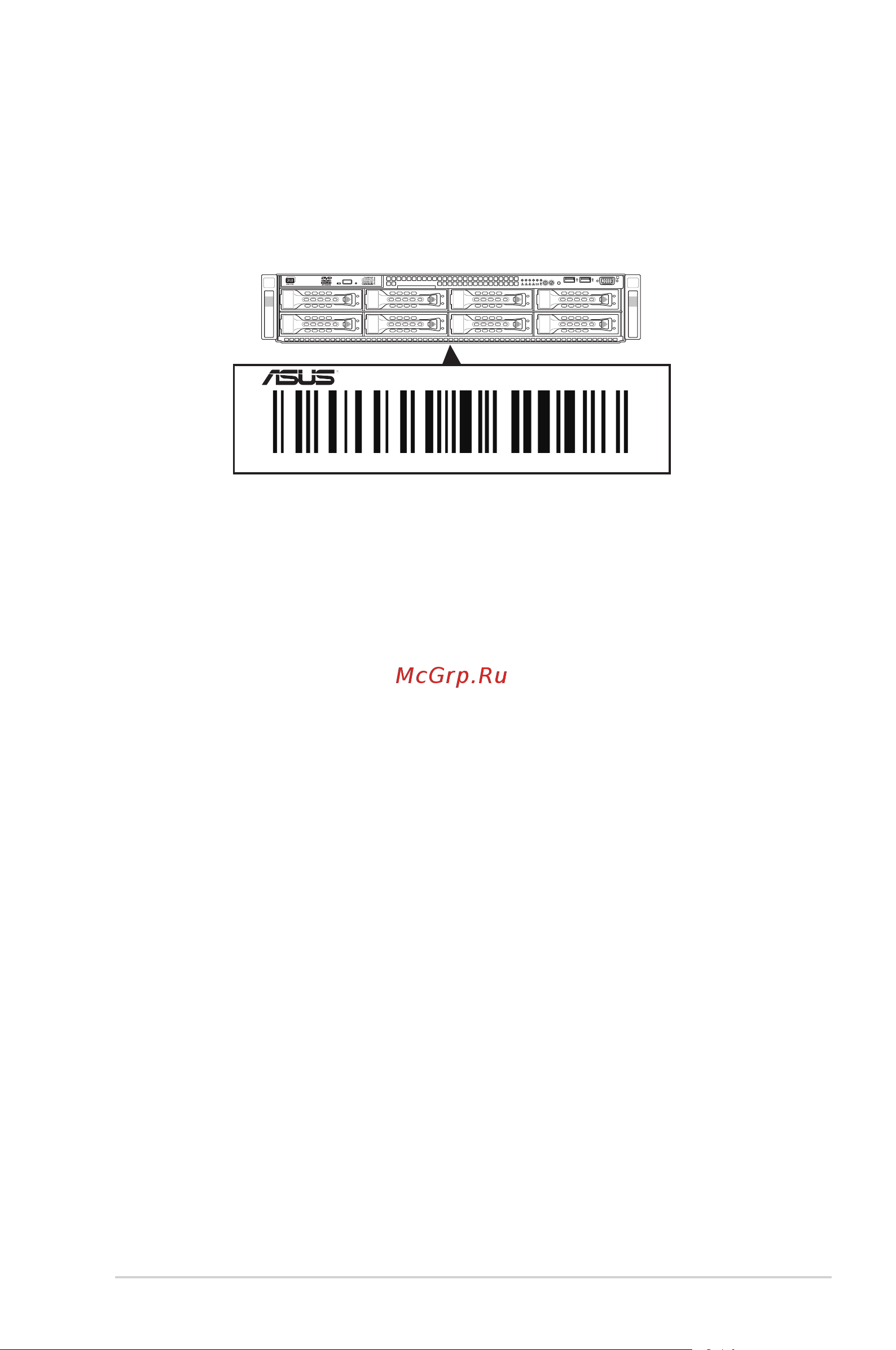

1.2 Serial number label
The product’s serial number contains 12 characters such as xxS0xxxxxxxx and printed on the
sticker at the server's front cover.
The correct serial number of the product is required if you need to request for support from
the ASUS Technical Support team.
1234
RESET
xxS0xxxxxxxx
RS720-E9-RS8/RS8-G
