Asus RS720-E9-RS8-G [182/206] Virtual raid on cpu in bios

6-18

Chapter 6: RAID Conguration

6.4 Intel

Virtual Raid on CPU in BIOS

This feature allows you to do CPU RAID functions with Intel

CPU RSTe.

• Due to chipset behavior, enabling the Intel

RSTe CPU RAID functions requires an

Intel

VROC hardware key module.

• Refer to section 4.4 Internal connectors for the location of the VROC_KEY1

connector.

• The KEY module is purchased separately.

To enter the Intel

Virtual Raid on CPU in BIOS:

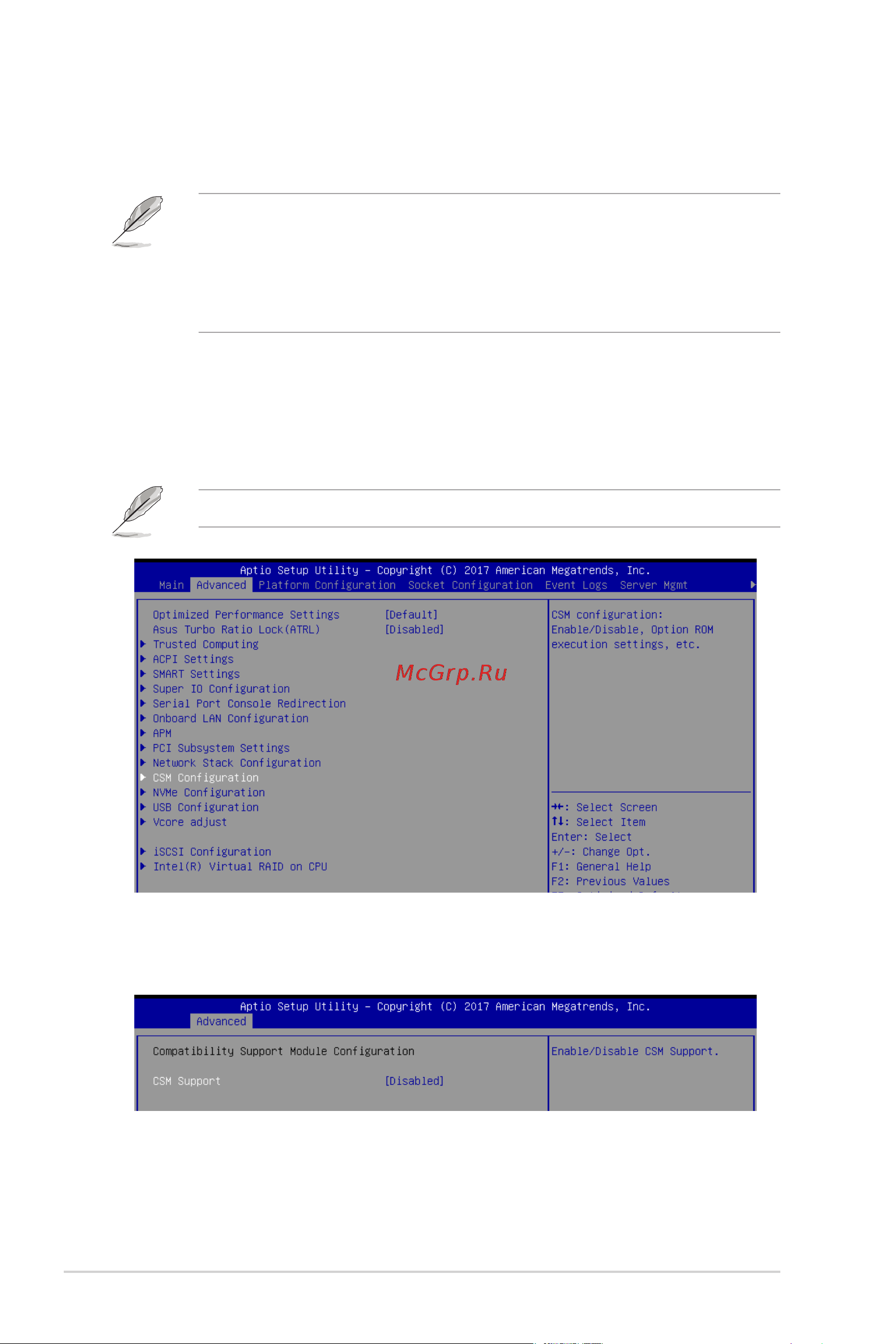

1. Enter the BIOS Setup during POST.

2. Go to the Advanced menu > CSMConguration, then press <Enter> to display the

CSM Conguration menu.

3. Select the [Disabled] option for the CSM Support option in the CSM Conguration

menu.

Refer to Chapter 5 for details on entering and navigating through the BIOS Setup.
