2-53
ASUS RS720-E9-RS8/RS8-G
2.5.12 Installing M.2 (NGFF) cards
ToinstallanM.2(NGFF)card:
2. Remove the top screw and the
stand from the motherboard.
3. Select an appropriate screw hole
on the motherboard for your M.2
card, then secure the stand to the
motherboard.

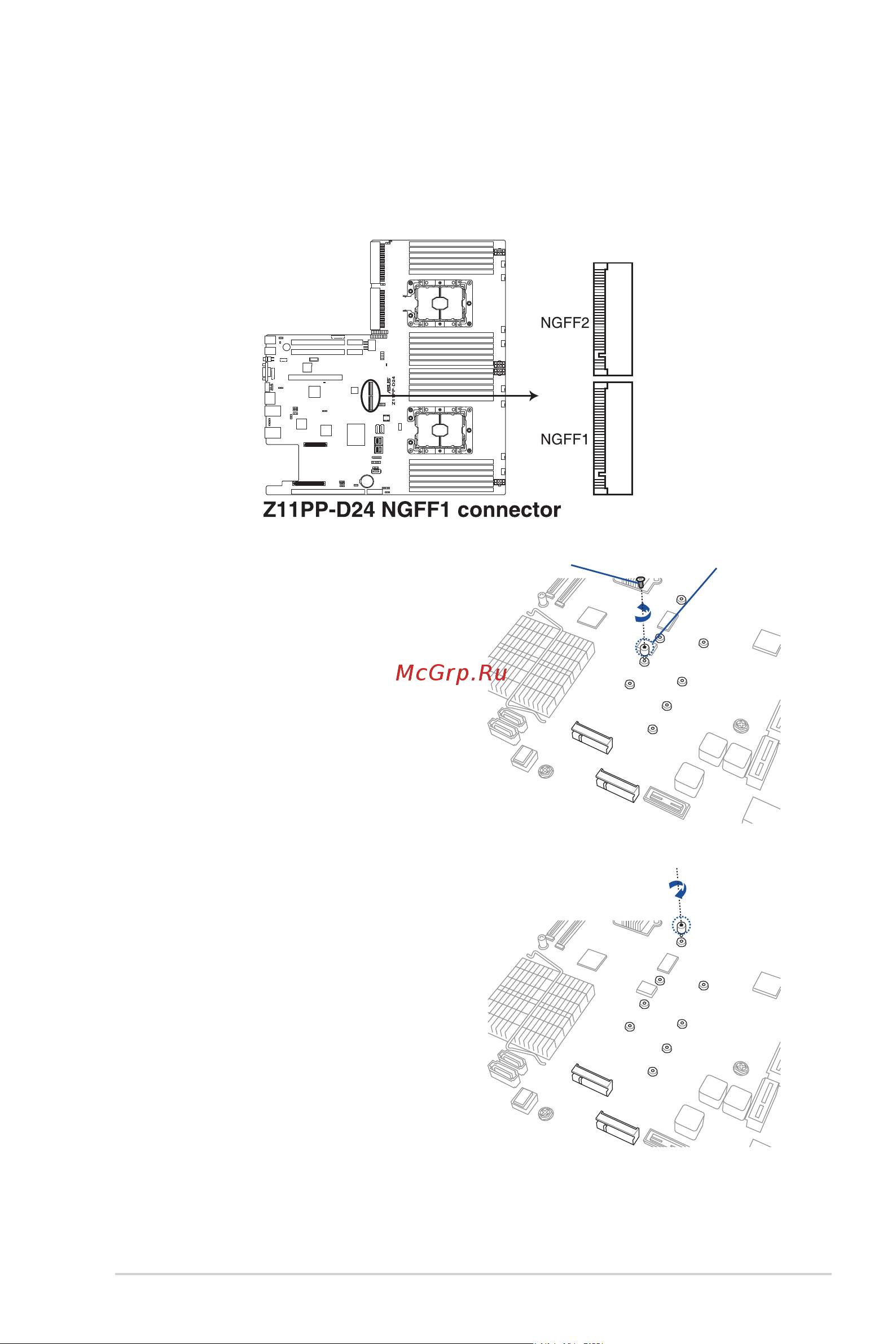

1. LocatetheM.2(NGFF)connectorsonyourmotherboard.
Top screw
Stand screw
