5-25
ASUS RS720-E9-RS8/RS8-G

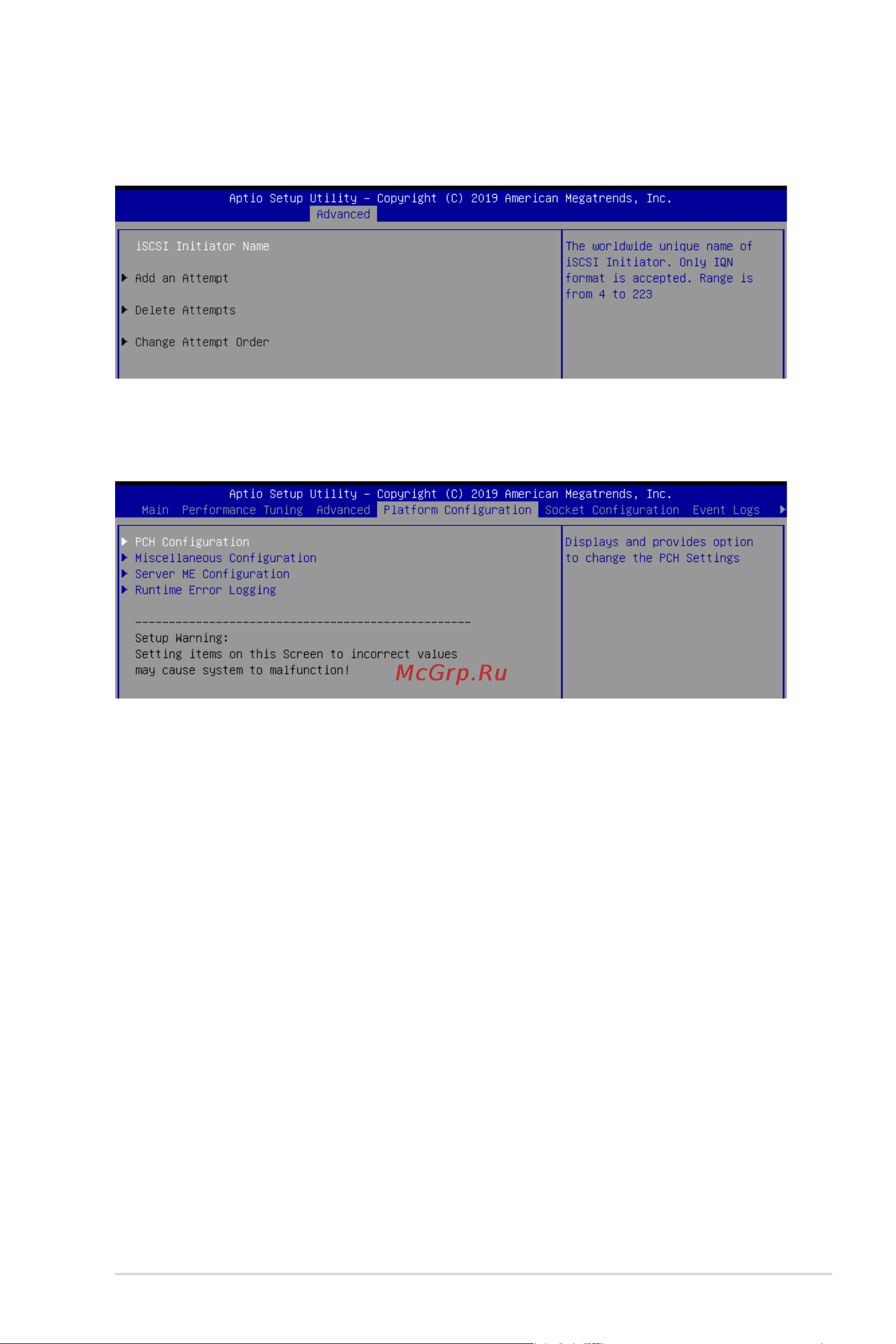

5.5.14 iSCSIConguration
AllowsyoutoconguretheiSCSiparameters.
5.6 PlatformCongurationmenu
The IntelRCSetup menu items allow you to change the platform settings.
