Chapter 2: Hardware Information
2-26
2.5.2 Installing an expansion card to riser card bracket 2

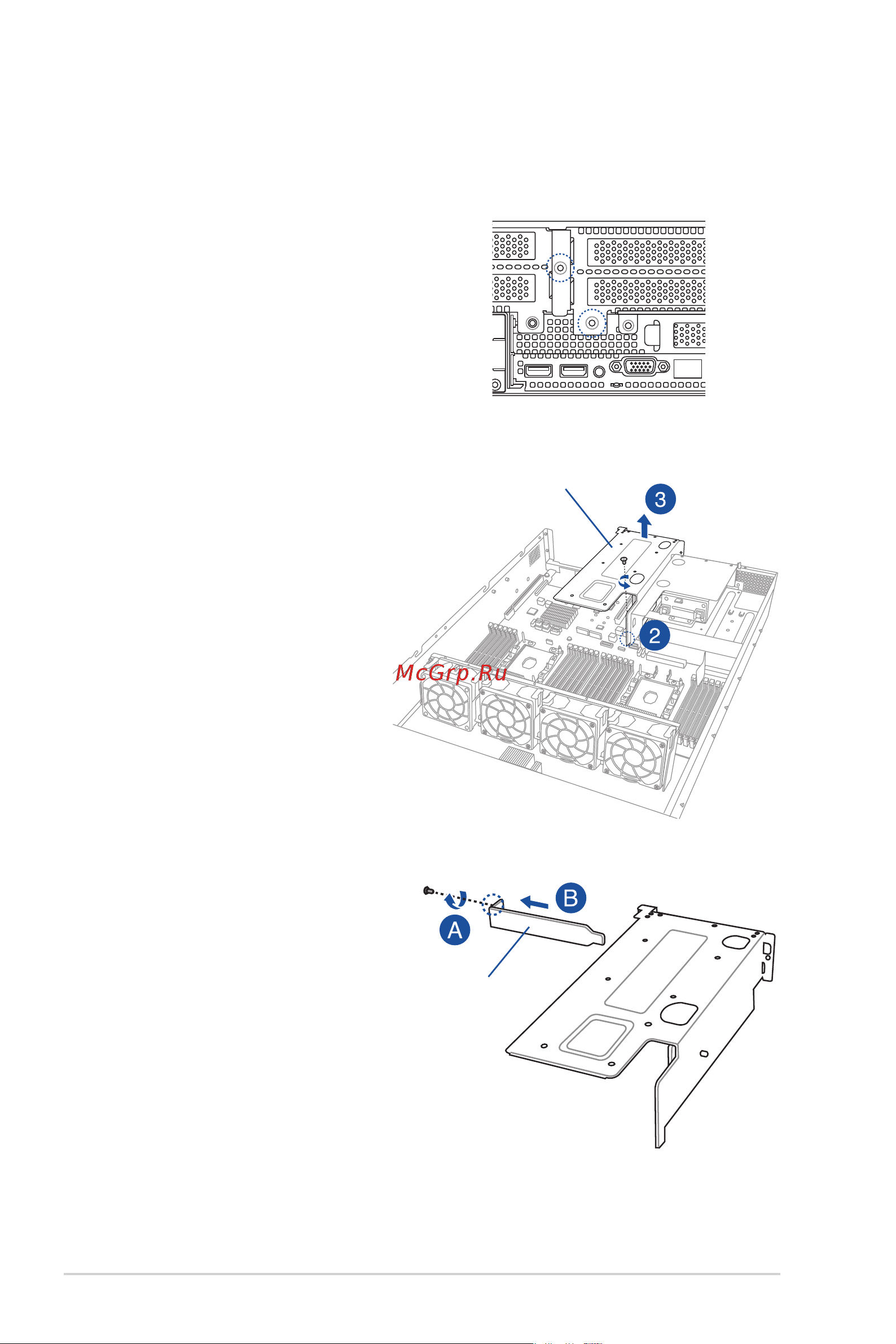

To install an expansion card to the riser card bracket 2:
2. Remove the screw that secures
the riser card bracket 2 to the
motherboard.
3. Firmly hold the riser card bracket
2, then pull it up to detach it
from the PCIE3 slot on the
motherboard.
1. Remove the two screws that
secure the riser card bracket 2 to
the chassis.
4. Remove the screw from the
metal cover (A), then remove the
metal cover (B) from the riser
card bracket 2.
Metal cover
Riser card bracket 2
