Asus RS720-E9-RS8-G [148/206] Miscellaneousconfiguration
![Asus RS720-E9-RS8-G [148/206] Miscellaneousconfiguration](/views2/1771511/page148/bg94.png)
5-28
Chapter 5: BIOS Setup
The following items appears only when the USB Per-Connector Disable is set to [Enabled].
USB_1-8 [Enabled]
Congurationoptions:[Disabled][Enabled]
USB3_1-5 [Enabled]
Congurationoptions:[Disabled][Enabled]
SecurityConguration
SMM BIOS Write Protect [Enabled]
AllowsyoutoenableordisableSMMBIOSWriteProtect.
Congurationoptions:[Disabled][Enabled]

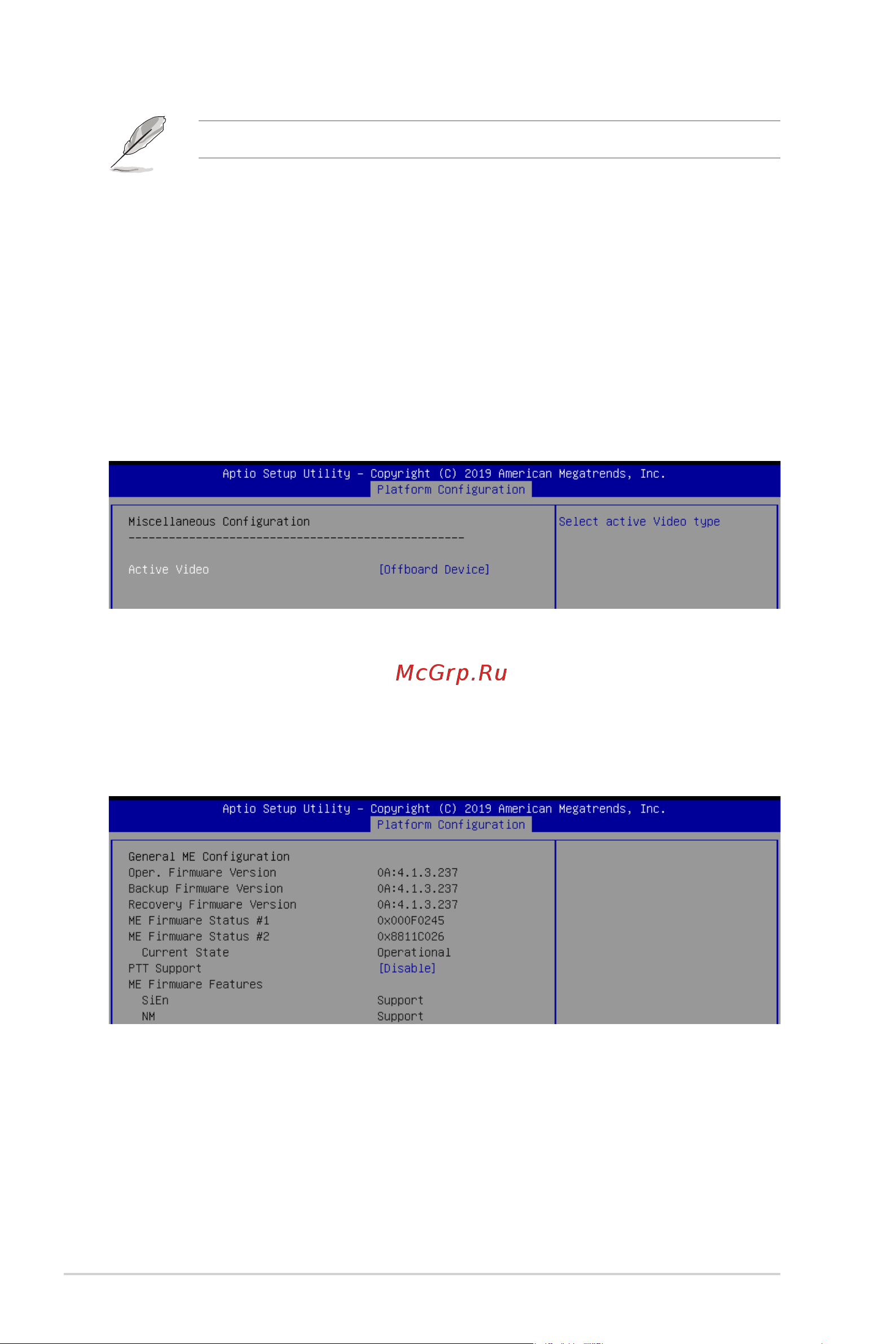

5.6.2 MiscellaneousConguration
Active Video [Offboard Device]
Allows you to select the video type.
Congurationoptions:[Auto][OnboardDevice][OffboardDevice]
5.6.3 ServerMEConguration
Displays the Server ME Technology parameters on your system.
