Chapter 2: Hardware Information
2-44
2.5.8 Installing an ASUS PCIE-NVME4-OCuLink card
ToinstallanASUSPCIE-NVME4-OCuLink
card to the riser card bracket 1:

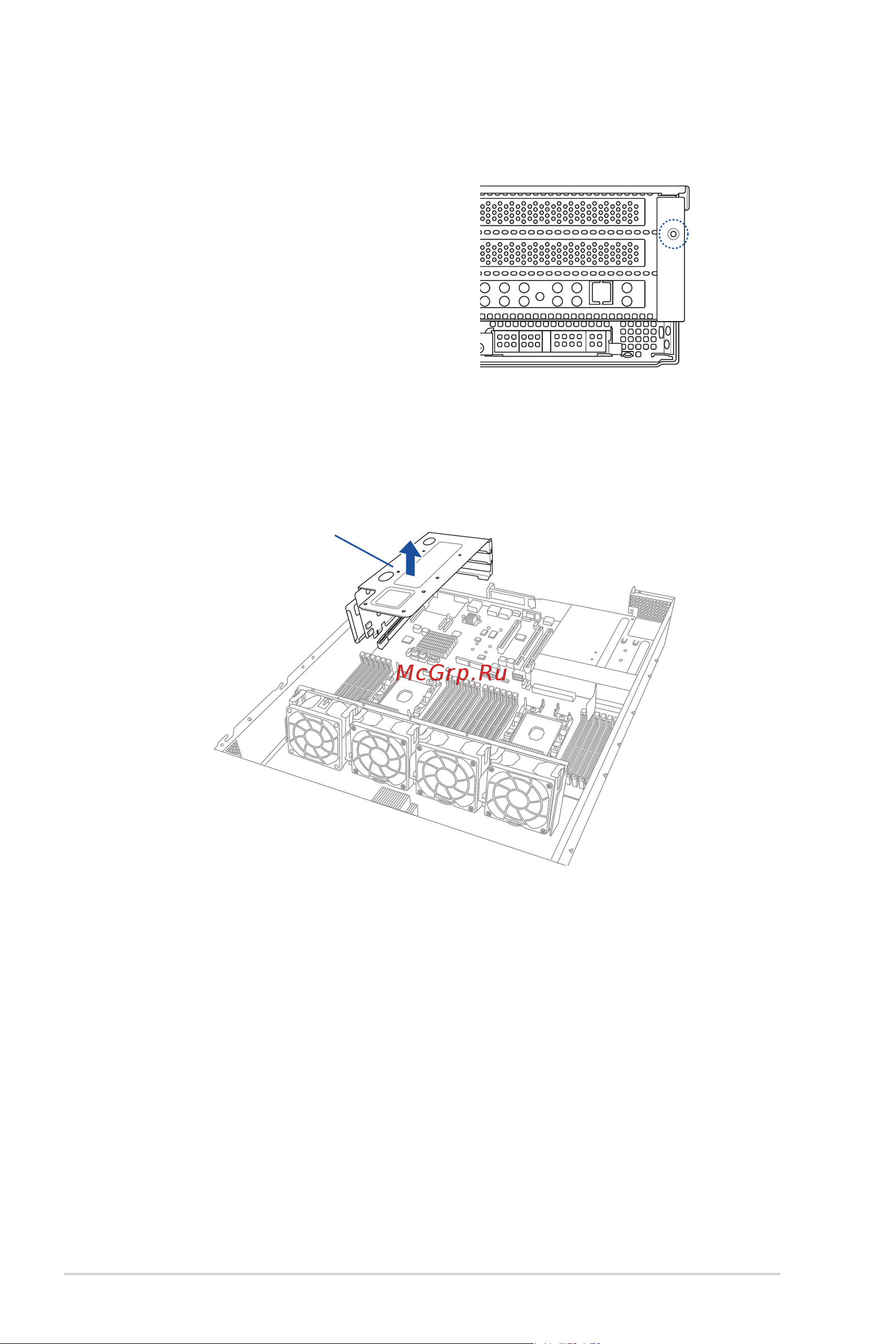

1. Remove the screw that secures the
riser card bracket 1 to the chassis.
2. Firmly hold the riser card bracket 1, then pull it up to detach it from the PCIE1 slot on
the motherboard.
Riser card bracket 1
