2-43
ASUS RS720-E9-RS8/RS8-G

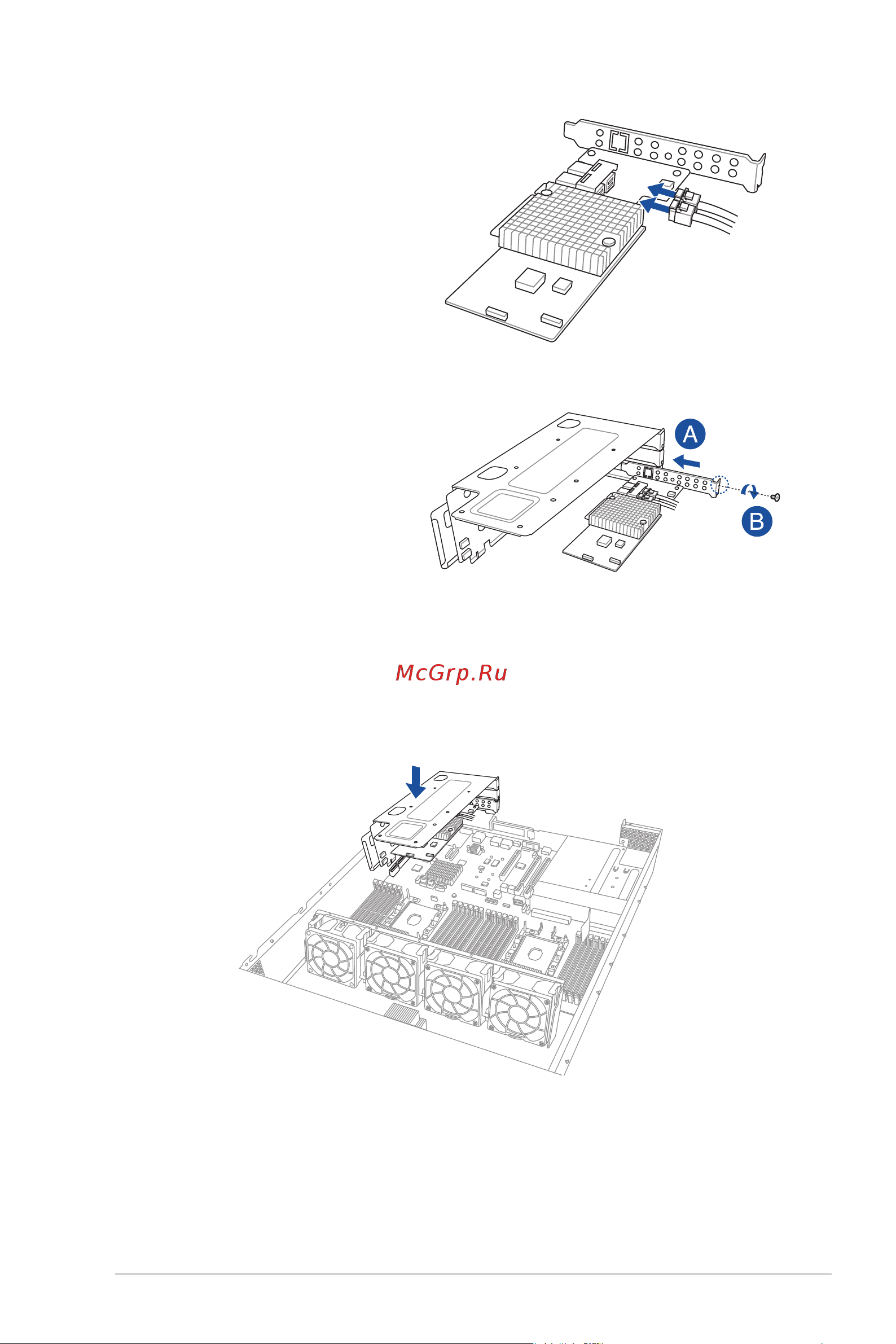

4. Prepare the ASUS PIKE II card.
5. Removethemini-SASHDcables
from the motherboard.
6. Reconnectthemini-SASHD
cables to the ASUS PIKE II card
as shown.
7. Install the ASUS PIKE II card into
the riser card bracket 1 (A), then
secure it with the screw removed
in step 3 (B).
8. Install the riser card bracket 1 and the ASUS PIKE II card assembly into the PCIE1 slot
on the motherboard. Ensure that the golden connectors of the riser card bracket 1 is
rmlyseatedinplace.
9. Secure the riser card bracket 1 to the chassis with the screw removed in step 1.
