Chapter 2: Hardware Information

2-4

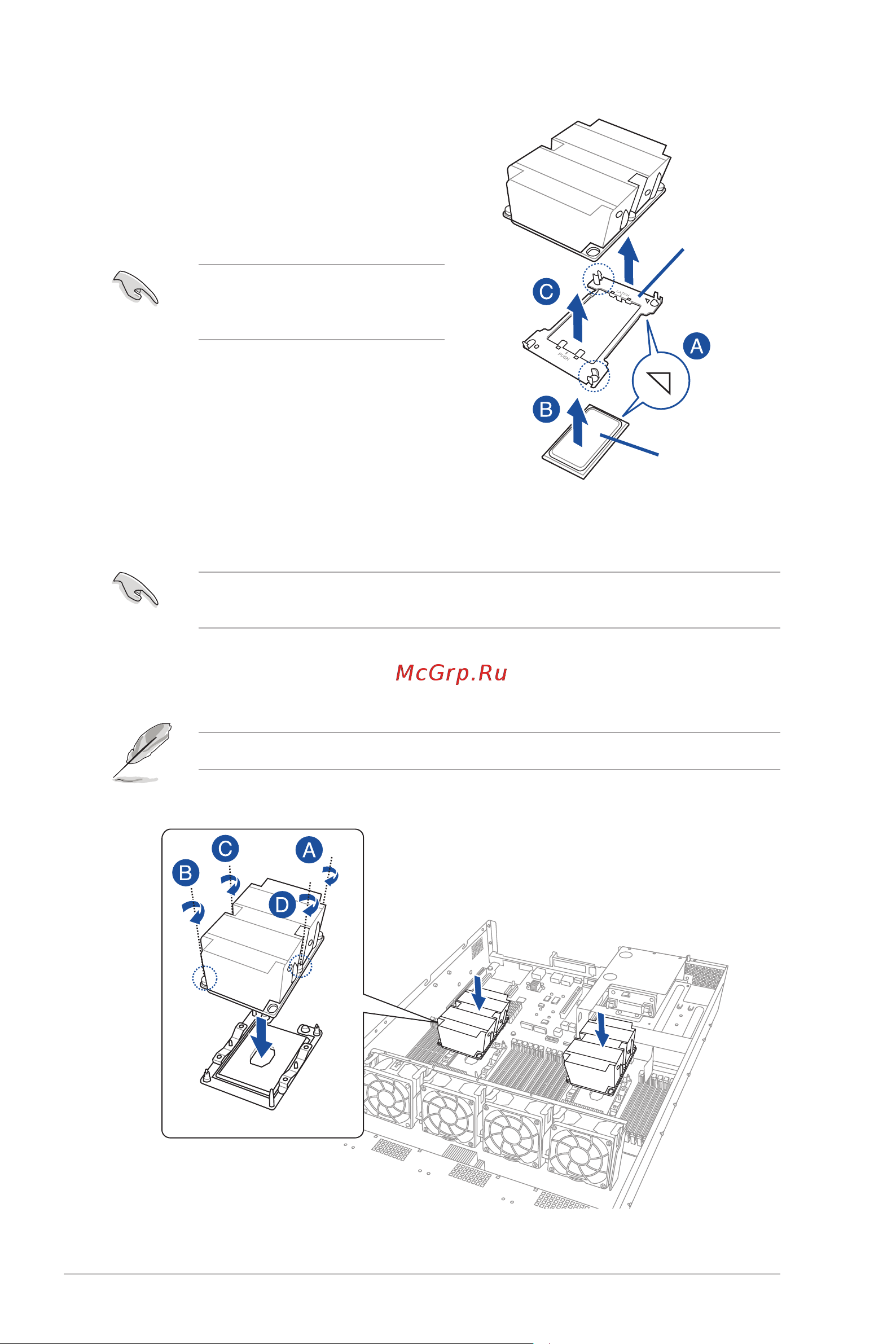

4. Align the CPU and CPU Carrier in the correct orientation, and then place the heatsinks

on top of the CPU sockets.

TheCPUandCPUCarriertsinonlyonecorrectorientation.DONOTforcetheCPUand

CPU Carrier into the socket to prevent damaging the CPU pins on the socket.

5. Twist each of the four screws with a screwdriver just enough to attach the heatsink to

the motherboard. When the four screws are attached, tighten them one by one in a

diagonal sequence to completely secure the heatsink.

The heatsink screws are T30 models. A torque value of 12 inch-lbf is recommended.

3. Align the triangle mark on the CPU with

the triangle mark on the CPU Carrier

(A), then install the CPU into the CPU

Carrieruntilitclicksrmlyintoplace(B),

and then install the CPU Carrier into the

heatsinkuntilitclicksrmlyinplace(C).

Ensure that the triangle mark on the

CPU matches the triangle mark on

the CPU Carrier.

CPU Carrier

CPU

Triangle mark
