ASUS RS540-E8-RS36-ECP
5-37

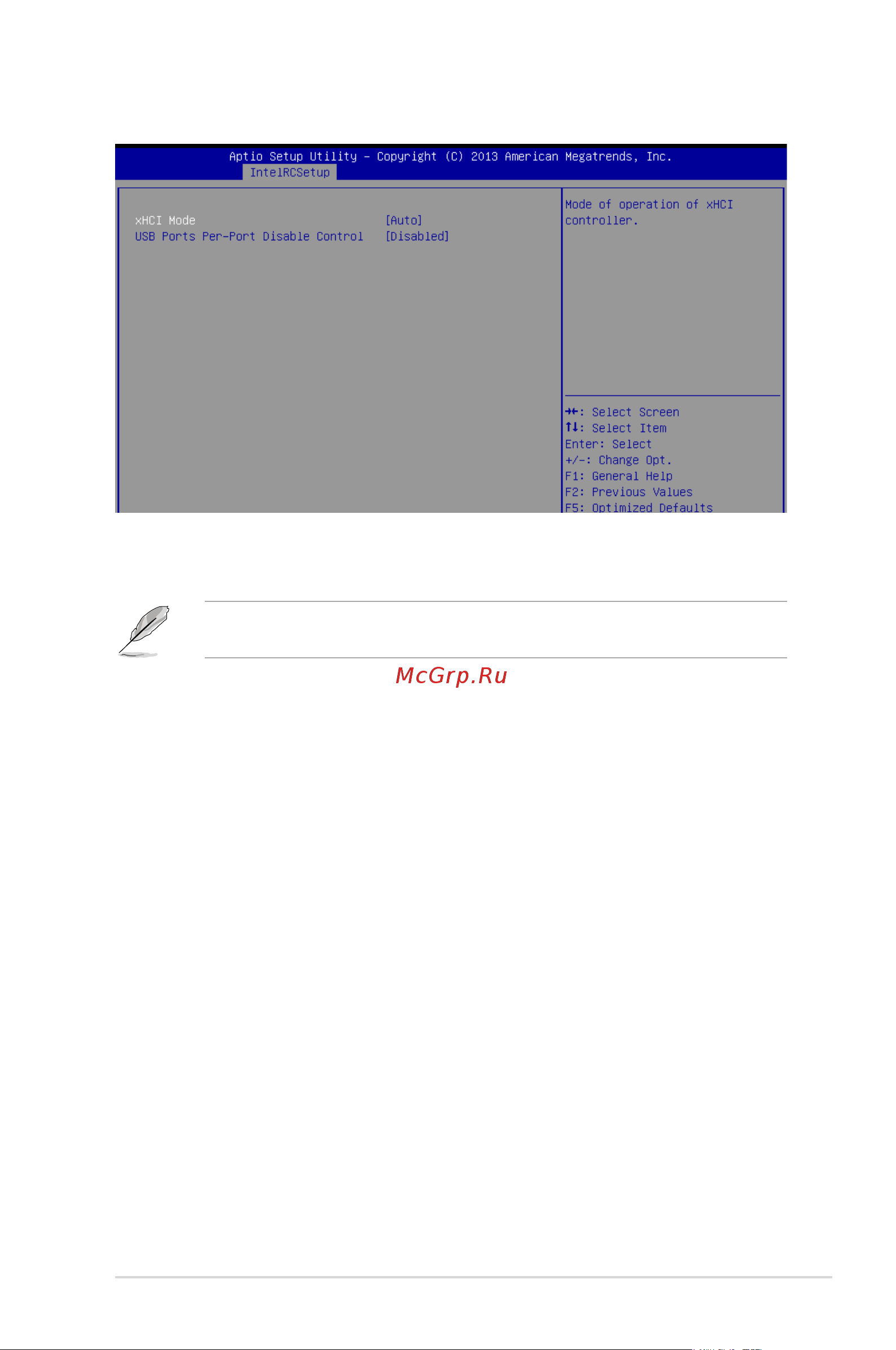

USB Ports Per-Port Disable Control [Disabled]
AllowsyoutocontroleachoftheUSBports1to8disabling.
Congurationoptions:[Disabled][Enabled]
The following items appears only when the USB Ports Per‑Port Disable Control is set to
[Enabled].
USB Port #1/ #2/ #3/ #4 [Enabled]
Congurationoptions:[Disabled][Enabled]
USB 3.0 Port #1/ #2 [Enabled]
Congurationoptions:[Disabled][Enabled]
Platform Thermal Configuration
PCH Thermal Device [Auto]
Allows you to enable or disable the PCH Thermal Device (D31:F6).
Congurationoptions:[Auto][Disabled][Enabled]
