Chapter 2: Hardware Information
2-14
2.4 Hard disk drives
The system supports 36 hot-swap 3.5-inch SATAII/SAS hard disk drives. Two hot-swap 2.5-
inch hard disk drives are supported on the rear panel of RS540-E8-RS36-ECP. The hard disk
drive installed on the drive tray connects to the motherboard SATAII/SAS ports via SATAII/
SAS backplane.
3. Slide the HDD into the drive tray with the SATA port facing towards the back of the
expansion slot.
Ensure that the screw holes on the HDD matches the screw holes on the tray.

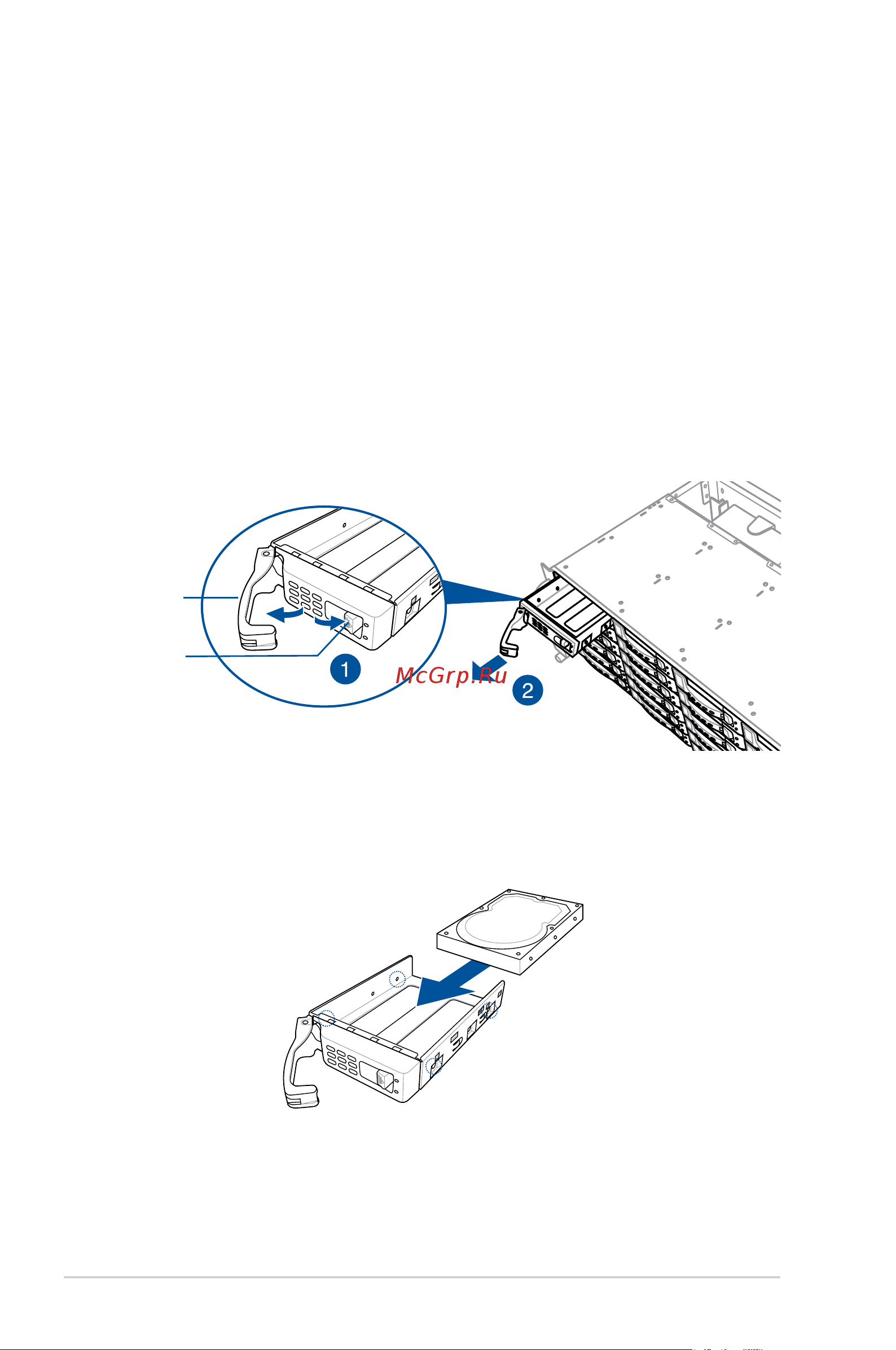

2.4.1 Installing a 3.5-inch HDD
To install a 3.5-inch HDD:
1. Press the spring lock to release the tray lever and to partially eject the tray from the
bay.
2. Firmly hold the tray lever and carefully pull the drive tray out of the bay. Place the drive
tray in a clean and at surface.
spring lock
tray lever
