Chapter 1: Product Introduction
1-8

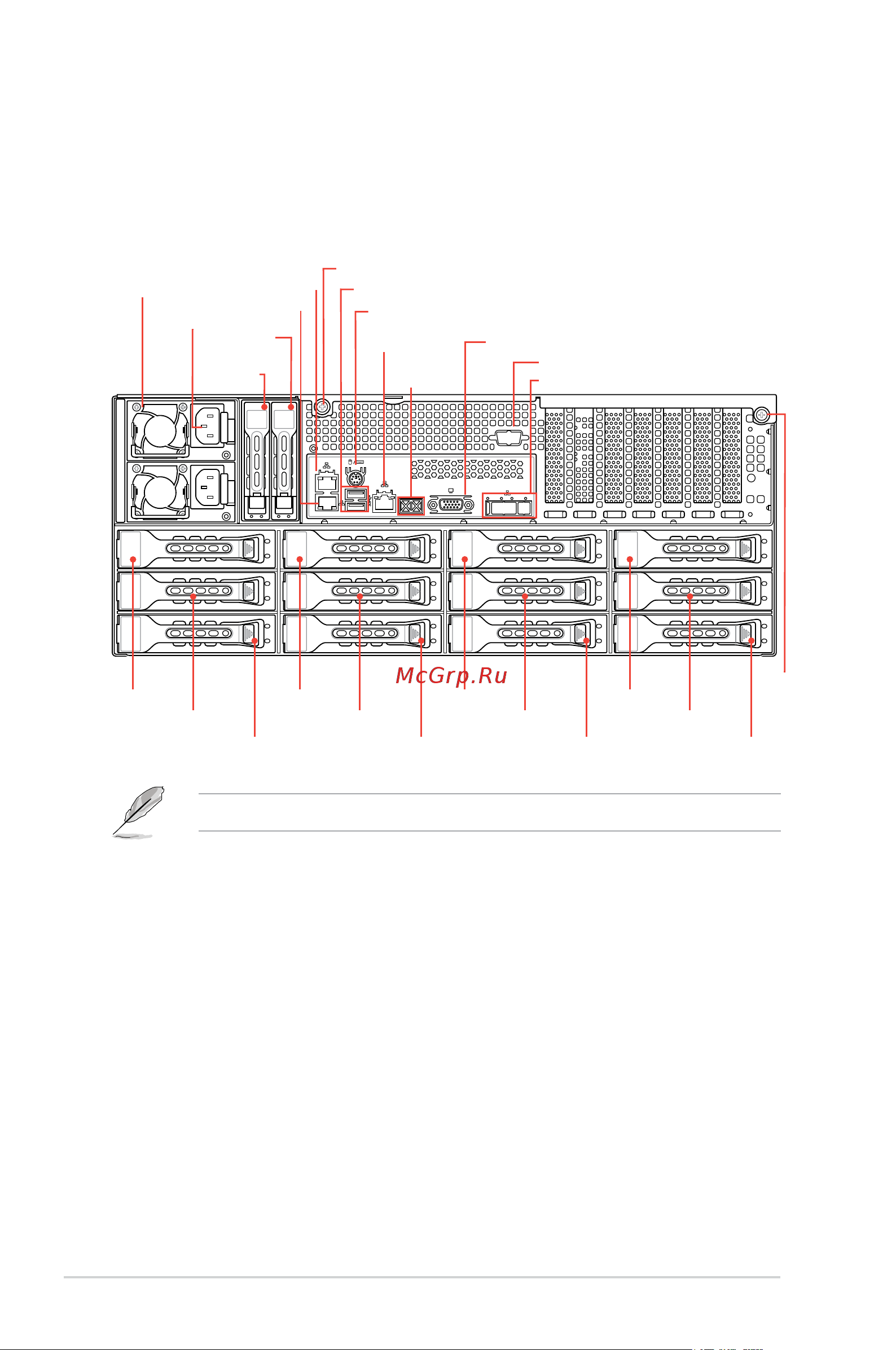

1.5 Rear panel features
The rear panel includes the expansion slots, system power sockets, and rear fans. The I/O
shields with openings for the rear panel connectors on the motherboard are also placed in the
rear panel.
* This port is for ASUS ASMB8-iKVM controller and for technicians only.
PS/2 keyboard/mouse combo port
Power connector
Redundant Power
Supply
LAN port 1
LAN port 2
Rear Thumb Screw
Rear
Thumb
Screw
2 x USB 3.0 ports
DM management
LAN port*
Mezzanine 10G dual-port LAN card (optional)
VGA port
Q Code/
Port 80
Serial port (optional)
2.5-inch
SSD Bay 1
2.5-inch
SSD Bay 2
HDD Bay 1
HDD Bay 2 HDD Bay 3 HDD Bay 4
HDD Bay 5
HDD Bay 6 HDD Bay 7 HDD Bay 8
HDD Bay 9
HDD Bay 10 HDD Bay 11 HDD Bay 12
