ASUS RS540-E8-RS36-ECP
1-7

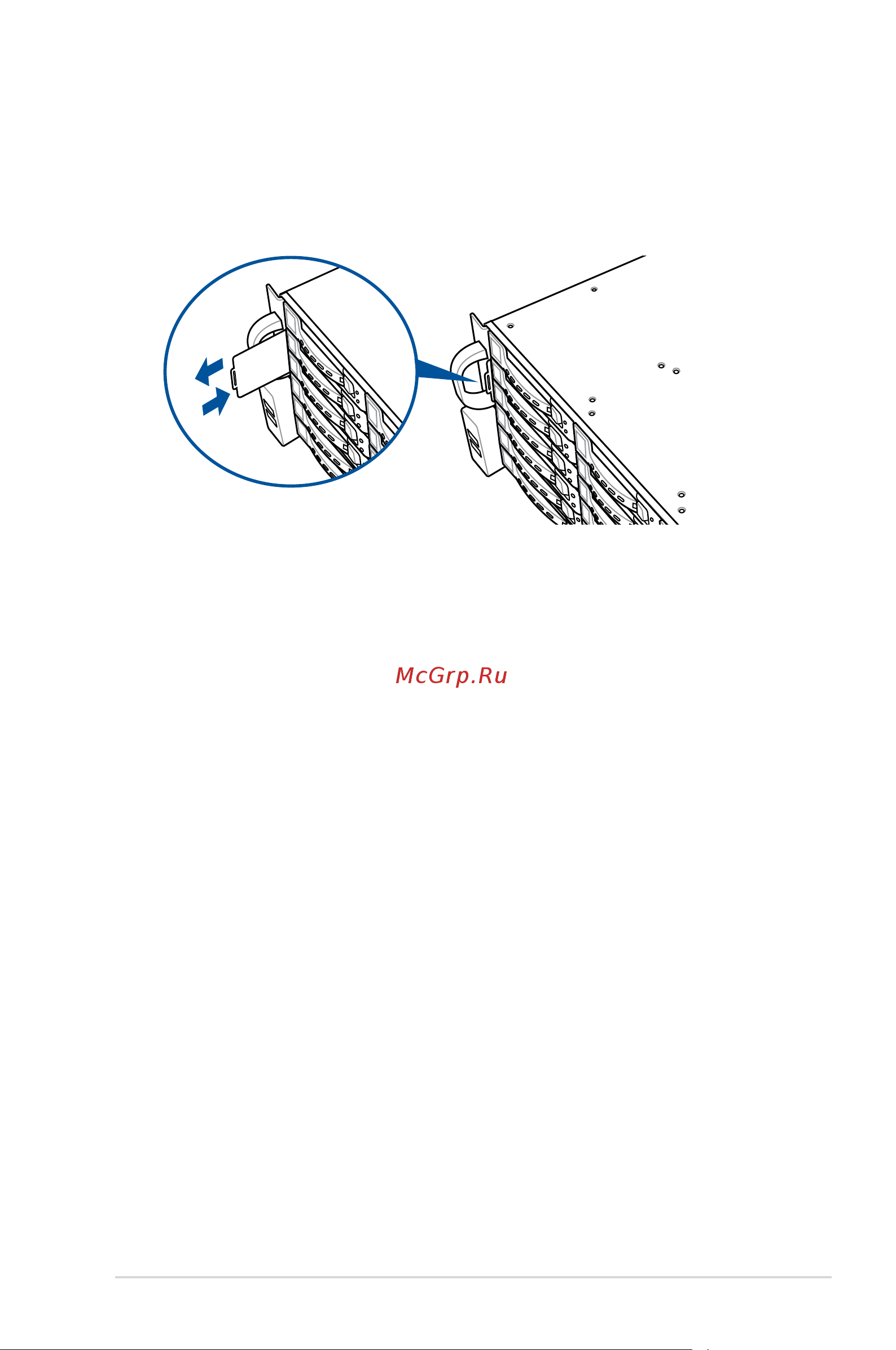

1.4.2 Asset tag
The Asset tag is a simple but useful device that is conveniently located on the front panel of
the server that you can pull out or easily slide back in. It has a piece of paper that allows you
to write down important information about the server.
1
2
