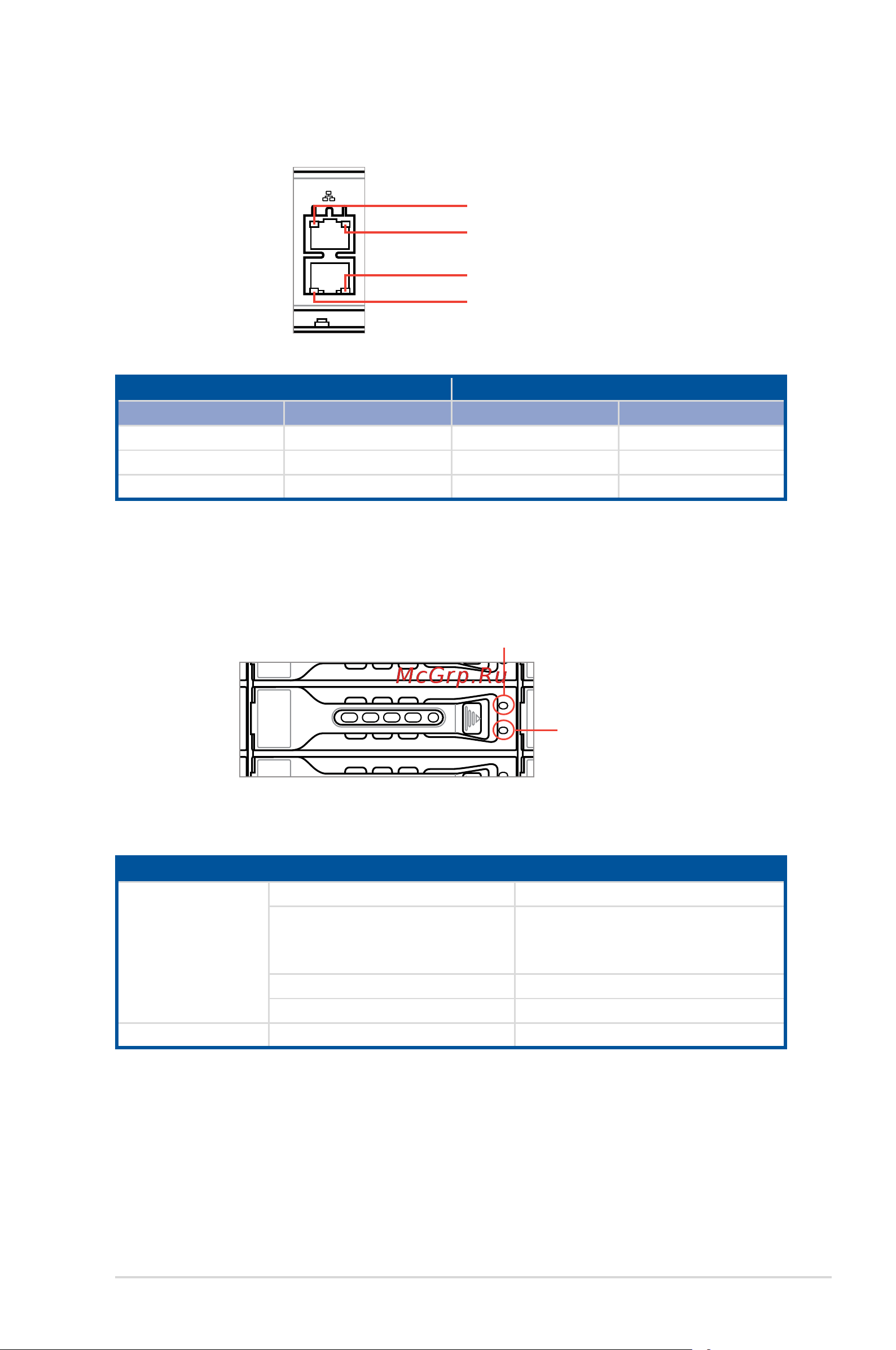

ASUS RS540-E8-RS36-ECP
1-11
1.7.2 LAN (RJ-45) LEDs
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
GREEN Linked ORANGE 100 Mbps connection
BLINKING Data activity GREEN 1 Gbps connection
1.7.3 HDD status LED
HDD activity LED
HDD status LED
HDD LED Description
HDD Status LED
GREEN Power ON (HDD detected)
RED
RAID disk has failed and should
be swapped immediately (Error
detected in the installed HDD)
Blinking GREEN/RED RAID rebuilding
OFF No HDD installed
HDD Activity LED Blinking GREEN Read/write data from/to HDD
SPEED LED
ACT/LINK LED
SPEED LED
ACT/LINK LED
1234
