ASUS RS540-E8-RS36-ECP
5-13

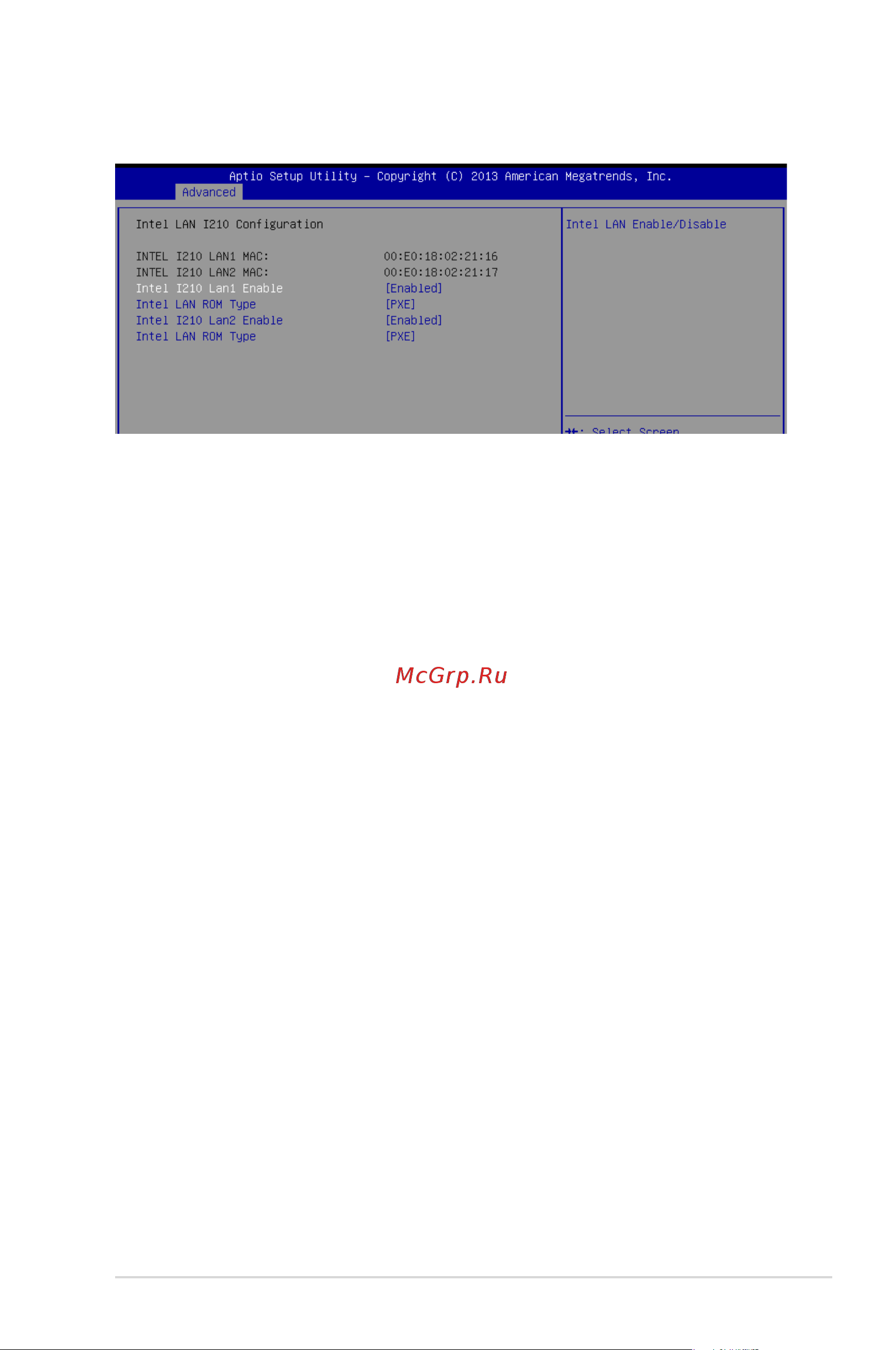

Intel I210 Lan1 Enable/ Intel I210 Lan2 Enable [Enabled]
Allows you to enable or disable the Intel LAN.
Congurationoptions:[Disabled][Enabled]
Intel LAN ROM Type [PXE]
Allows you to select the Intel LAN ROM type.
Congurationoptions:[Disabled][PXE][iSCSI]
