2-3
ASUS RS540-E8-RS36-ECP
2.1.2 Air Duct
The RS540-E8-RS36-ECP server system comes with a motherboard fan air duct to enable
better air ow inside the motherboard while the system is running.
Removing the air duct
To remove the air duct:
1. Remove the chassis cover. Refer to section
2.1.1 Removing the rear cover
for the
instructions.

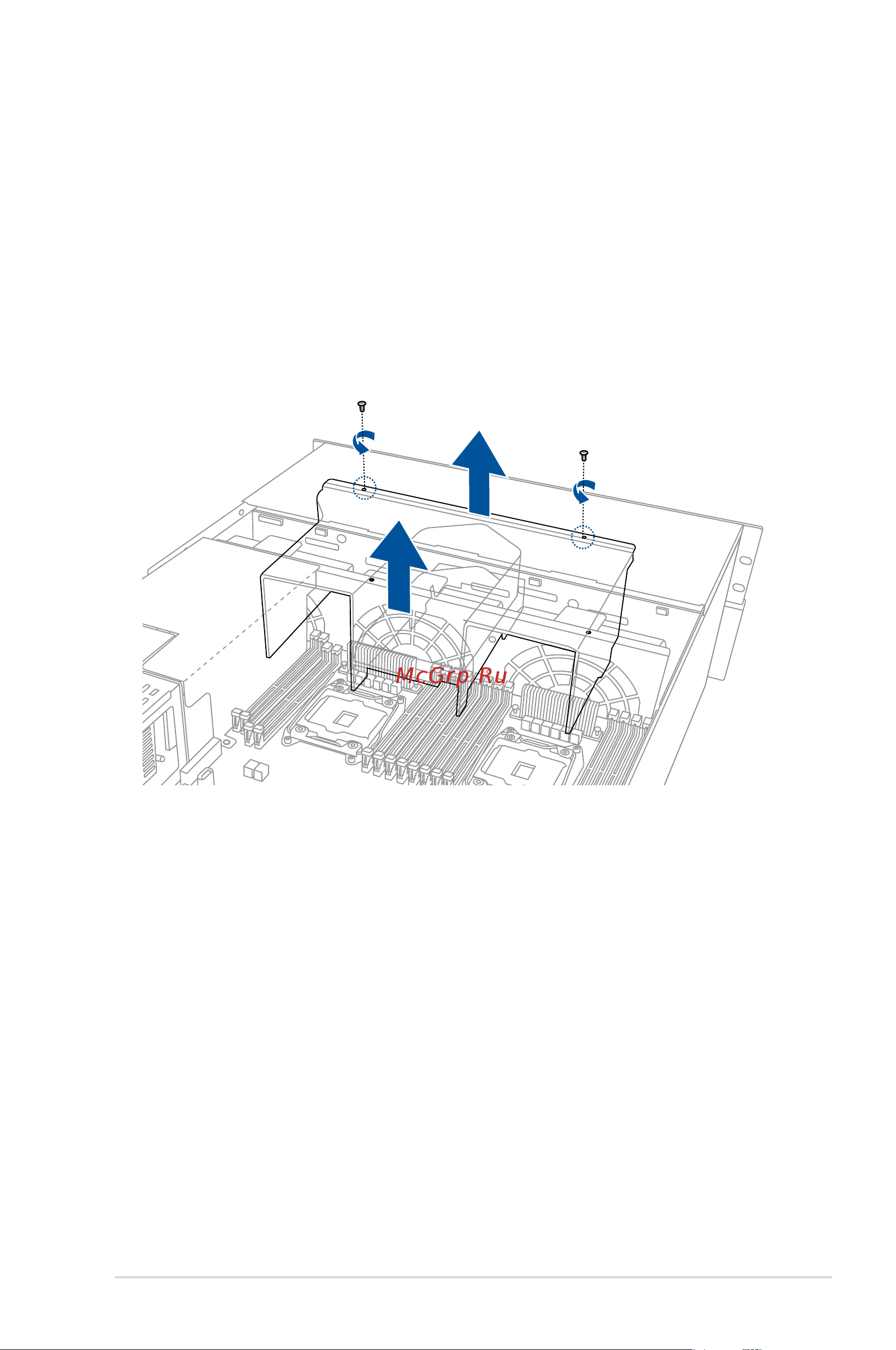

2. Remove the screws as shown in the illustration below securing the air duct with a
Philip screw driver and then remove the air duct.
