Chapter 4: Motherboard Information
4-18
2. Baseboard Management Controller LED (BMCLED1)
ThegreenheartbeatLEDblinkspersecondtoindicatethattheASMB8isworking
normally.
TheheartbeatLEDfunctionsonlywhenyouinstalltheASUSASMB8.

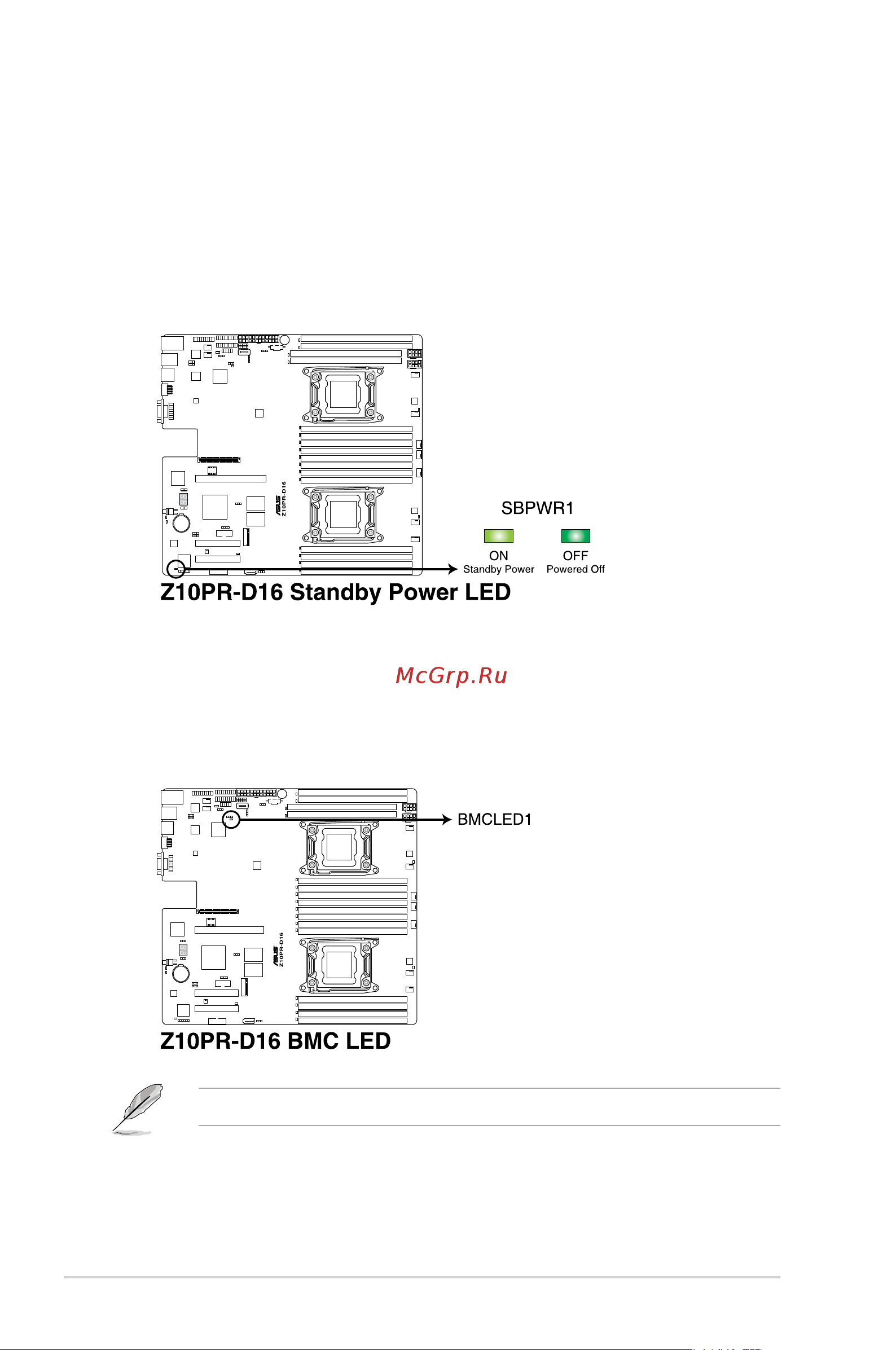

4.4 Onboard LEDs
1. Standby Power LED (SBPWR1)
ThemotherboardcomeswithastandbypowerLED.ThegreenLEDlightsupto
indicate that the standby mode of the system is ON, the system is in sleep mode,
orthesystemisinsoft-offmode.Thisisareminderthatyoushouldshutdownthe
systemandunplugthepowercablebeforeremovingorplugginginanymotherboard
component.TheillustrationbelowshowsthelocationoftheonboardLED.
