ASUS RS540-E8-RS36-ECP
4-19

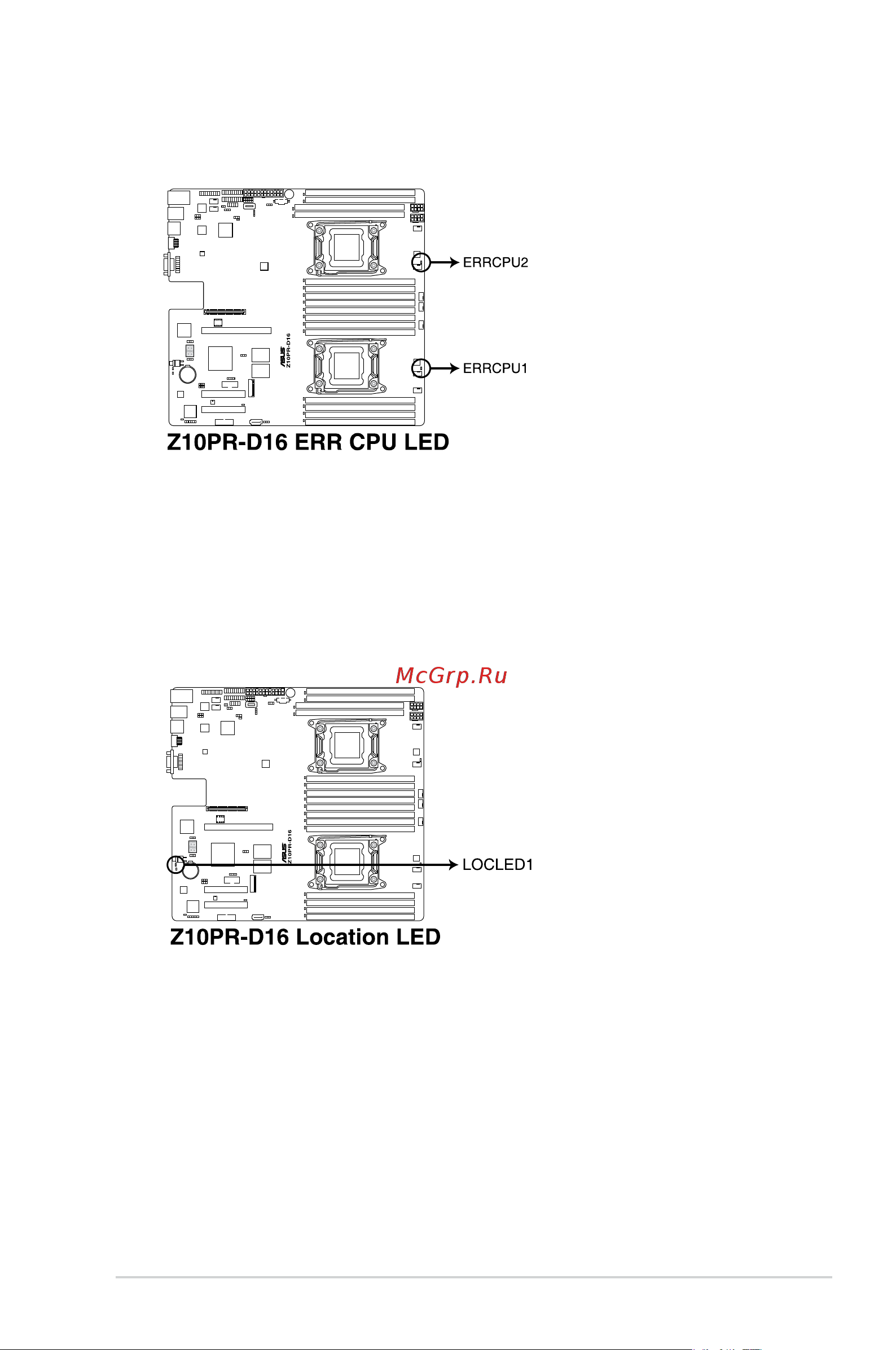

3. CPU Warning LED (ERRCPU1, ERRCPU2)
TheCPUwarningLEDslightuptoindicatefailureoneitherCPU1,CPU2,orboth.
4. Location LED (LOCLED1)
ThisonboardLEDlightsupwhentheLocationbuttonontheserverispressedorwhen
triggeredbyasystemmanagementsoftware.TheLocationLEDhelpsvisuallylocate
andquicklyidentifytheserverinerroronaserverrack.
