2-19
ASUS RS540-E8-RS36-ECP

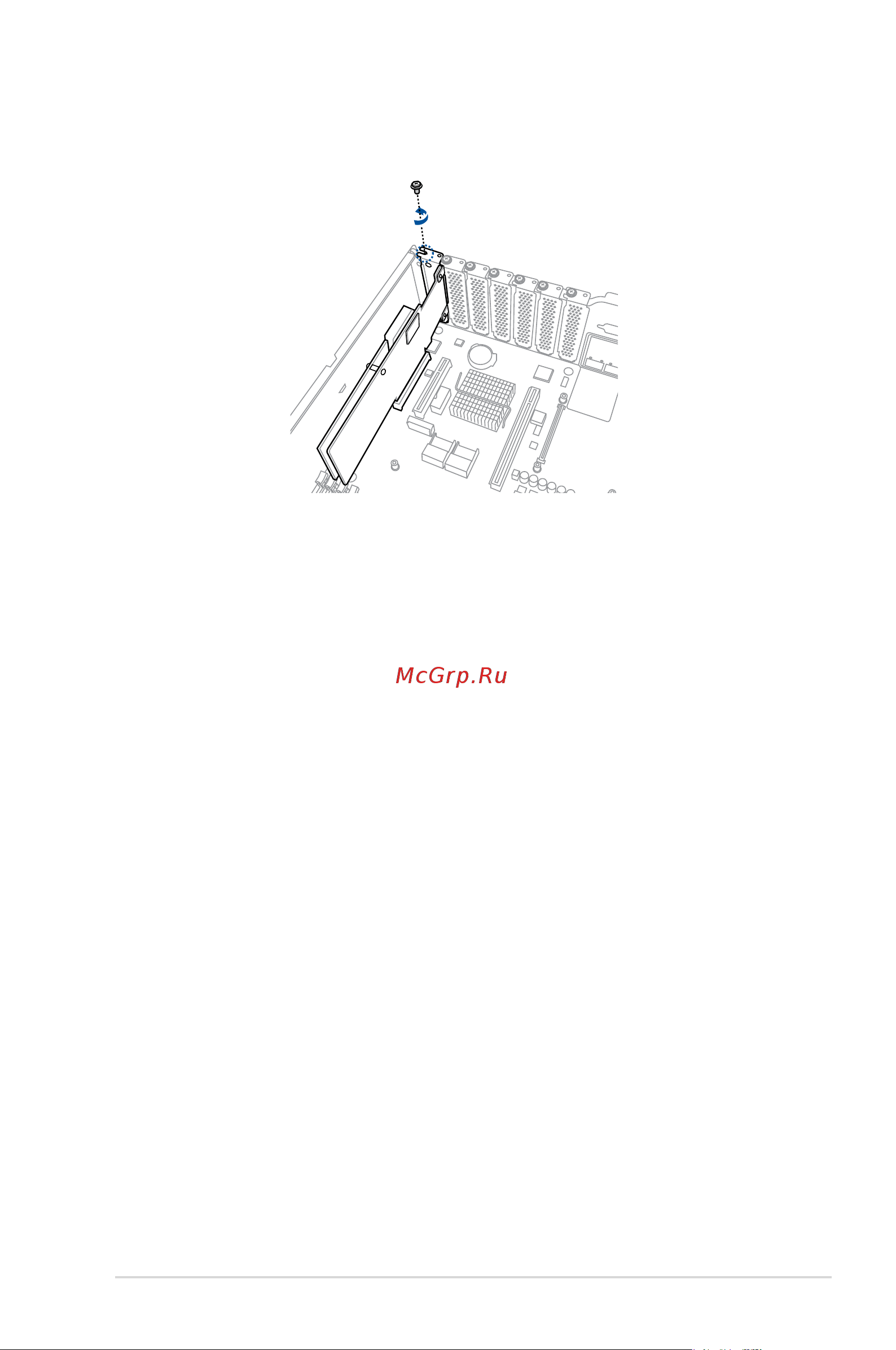

3. Insert the expansion card into the PCI-E slot. Ensure that the golden ngers are totally
inserted into the slot. Secure it with the screws removed before.
