Chapter 4: Motherboard Information
4-16

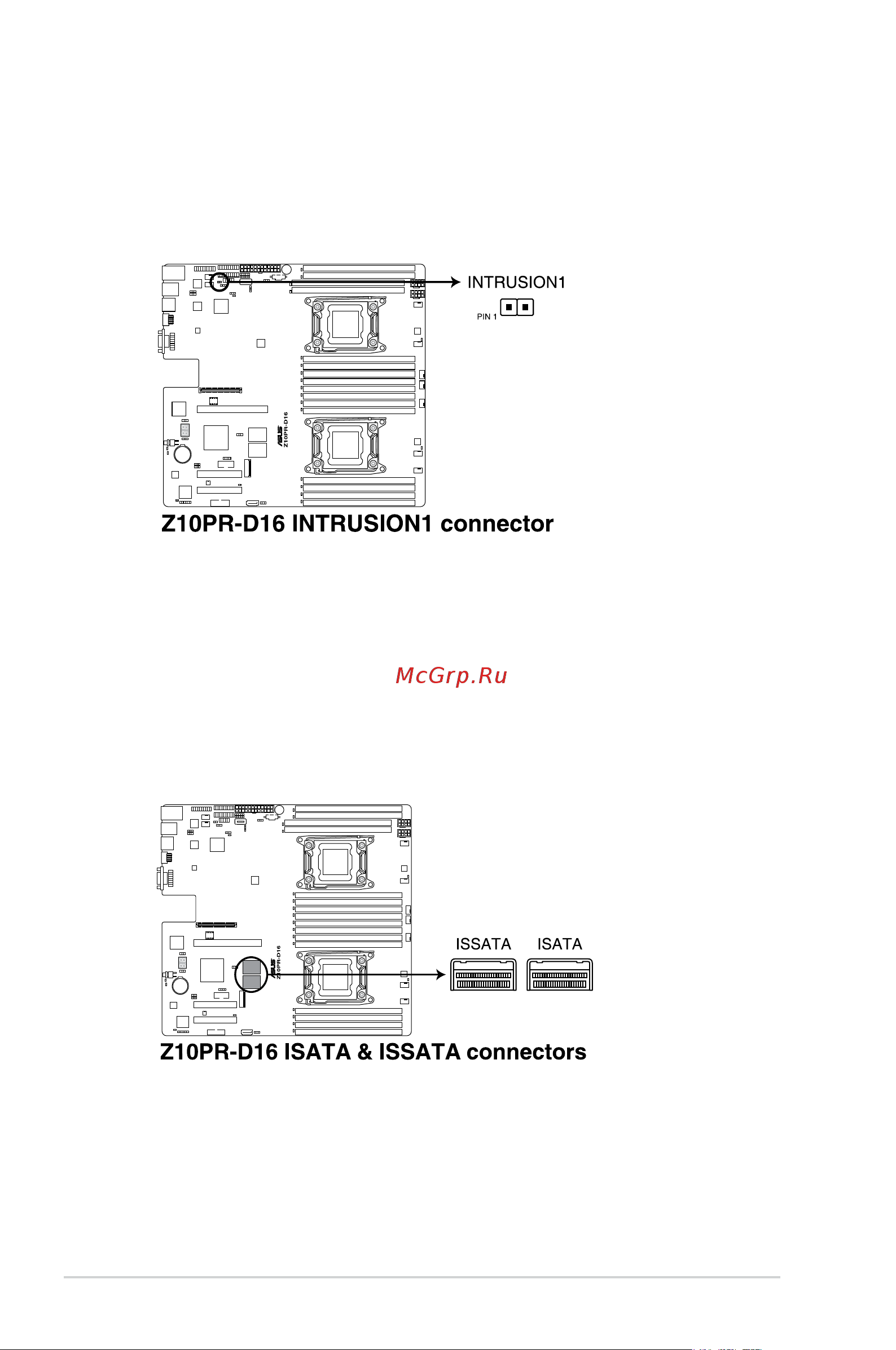

15. ISATA & ISSATA connectors (ISATA; ISSATA)
TheISATAconnector(AHCI)supports4SATA6Gb/sportsandIntelRAID/LSI
MegaRAID.
TheISSATAconnector(AHCI)supports4SATA6Gb/sportsandIntelRAID.
14. Chassis Intrusion (2-pin INTRUSION1)
Theseleadsarefortheintrusiondetectionfeatureforchassiswithintrusionsensoror
microswitch.Whenyouremoveanychassiscomponent,thesensortriggersandsends
ahighlevelsignaltotheseleadstorecordachassisintrusionevent.Thedefaultsetting
isshortCASEOPENandGNDpinbyjumpercaptodisablethefunction.
