ASUS RS540-E8-RS36-ECP
4-21

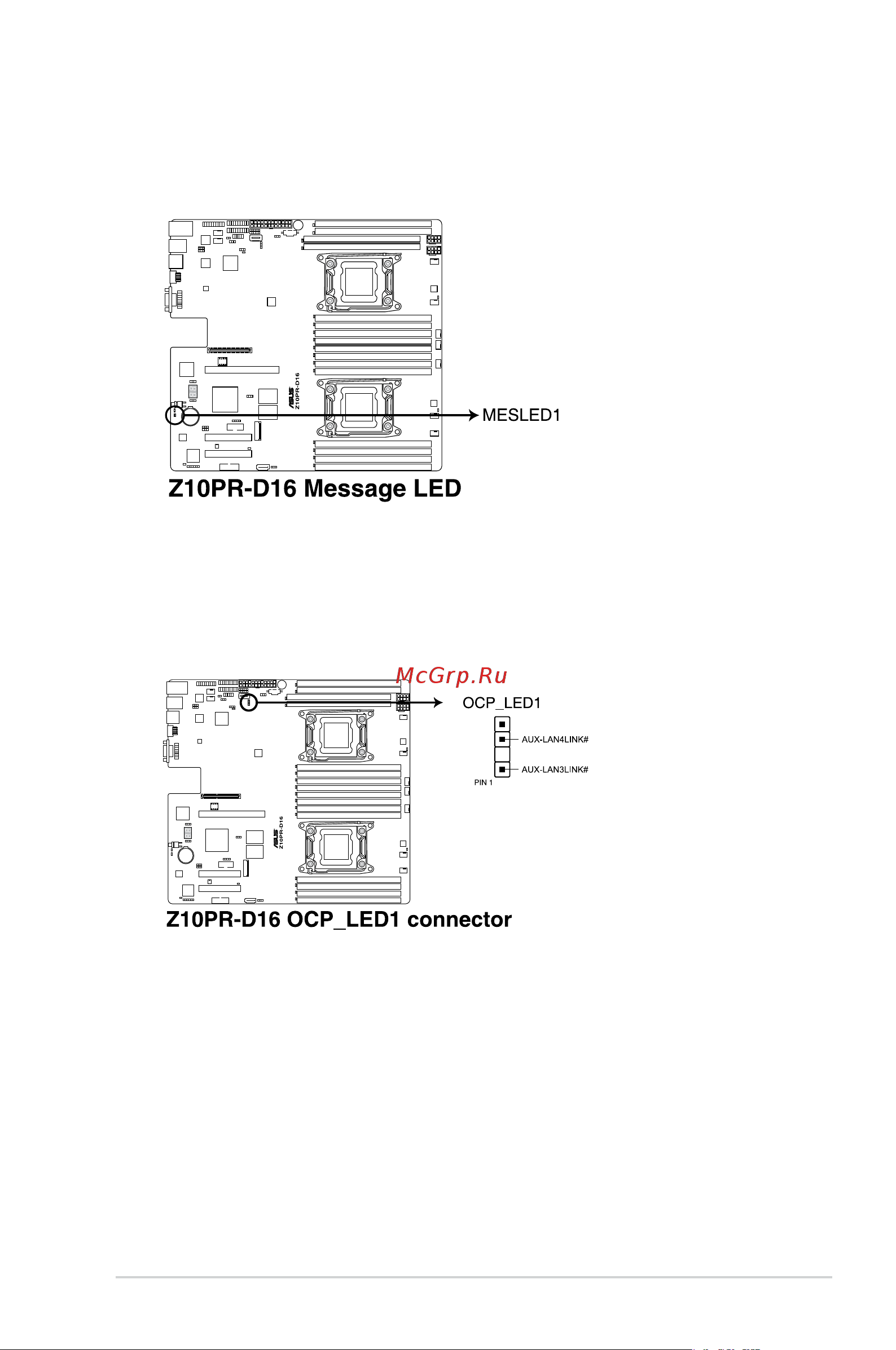

7. Message LED (MESLED1)
ThisonboardLEDlightsuptoredwhenthereistemperaturewarningoraBMCevent
log is generated.
8. OCPLAN Activity LED connector (4-pin OCP_LED1)
OCPLANLEDconnectorsupportsASUSMCB-10G-2SOCPcardActiveLED.
