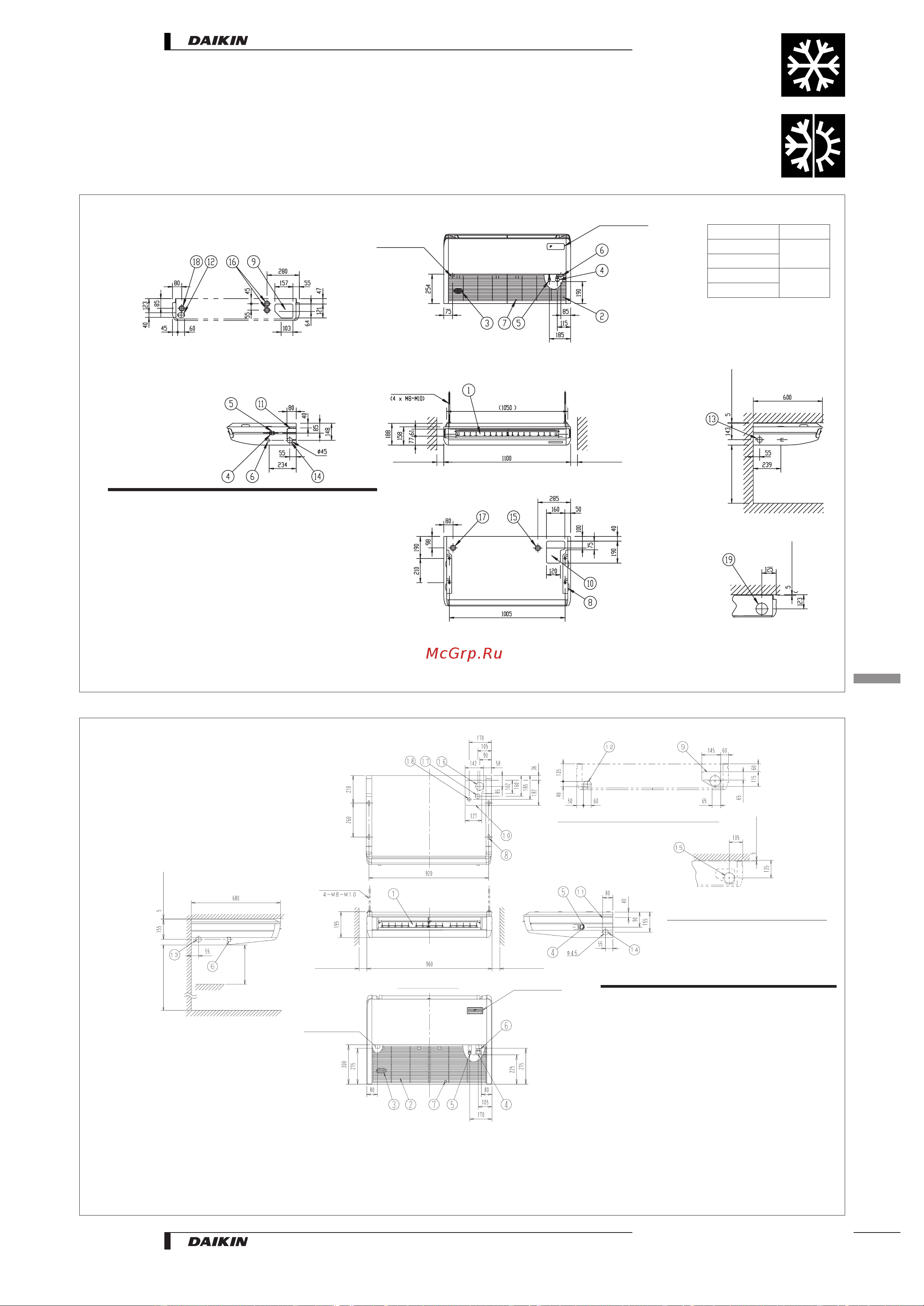

Daikin FH35BZV1 [11/26] Dimensional drawings
![Daikin FH35BZV1 [11/26] Dimensional drawings](/views2/1779625/page11/bgb.png)
3
Dimensional drawings
Model A
FH35GZ
12.70
FHY35GZ
FH45GZ
15.90
FHY45GZ
1 Air discharge grille
2 Air suction grille
3 Air filter
4 Gas pipe connection φA Flare connection
5 Liquid pipe connection J6.35 Flare connection
6 Drain pipe connection V.P.20
7 Grounding terminal M4
8 Suspension bracket
9 Rear piping connection hole - slit hole
10 Upper refrigerant piping connection hole - slit hole
11 Right side piping connection hole - slit hole
12 Rear left side drain piping connection hole - slit hole
13 Left side drain piping connection hole - slit hole
14 Right side drain piping connection hole - slit hole
15 Power supply / control wiring connection (upper)
16 Power supply / control wiring connection (rear)
17 Remote control code connection (upper)
18 Remote control code connection (rear)
19 Rear piping connection hole - slit hole J100
Notes:
1. Name plate: sticked on the bottom part of fan housing in suction grille
2. When using a remote controller, this position will be a signal receiver. Refer to the detailed
drawing of the remote controller
3. The standard length of remote control cord is approximately 3m.
(0.5mm x 2 cores x J5.4 0.D.)
(Suspension
position)
500 mm or
more
(Installation space)
(Installation space)
Suspension bolt
Service space
60 mm or more
unit (mm)
FHY35∼45GZ7V1
Slit hole position for rear piping connection
(from the front)
Drain outlet V.P.20
(for left piping)
DAIKIN name plate
(See note 2)
60 mm or more
Service space
(Installation space)
Wall hole position for rear
piping connection
(from the front)
3TW20524-1A
(Suspension position)
FH35BZV1
FHYP35∼45BV1
View from the front
780 From the floor side 2500 or more
(Required space)
Note:
1. Location of unit’s name plate: bottom of fan housing inside the
suction grille.
2. In case of using infrared remote control, this position will be a signal
receiver. Refer to the drawing of infrared remote control in detail.
3. The remote control code is the standard (about 3m outside the
machine) attached.
(0.5 mm
2
x 2 Wicks x O.D. J5.4)
(It is not attached in VRV.)
1 Air discharge grille
2 Air suction grille
3 Air filter
4 Gas pipe connection J12.7 flare
5 Liquid pipe connection J6.4 flare
6 Drain pipe connection VP20
7 Earth terminal (inside the electric components box) M4
8 Suspension bracket
9 Backward piping and wiring connection opening lid
10 Upward piping and wiring connection opening lid
11 Right side pipe connection - slit hole
12 Left back drain pipe connection - slit hole
13 Right side drain pipe connection - slit hole
14 Right side drain piping connection hole- slit hole
15 Hole of wall for taking out in piping back J100
16 Upward drain pipe connection J60
17 Upward gas pipe connection J36
18 Upward liquid pipe connection J26
Position: hole of wall for taking out in piping back
For height installation
Floor side
300or more
Brand name plate
(For left piping)
30 or more
30 or more
(Service space)
(View from the front)
(Hanging position)
Hanging bolt
Position slit hole for taking out in piping back
3D027536A
Drain pipe connection
VP20
Obstacle
(Service space)
(View from the front)
(Hanging position)
(Required space)
(Required space)
(Note 2)
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B
10
3
9
• Split - Sky Air • Indoor Units
