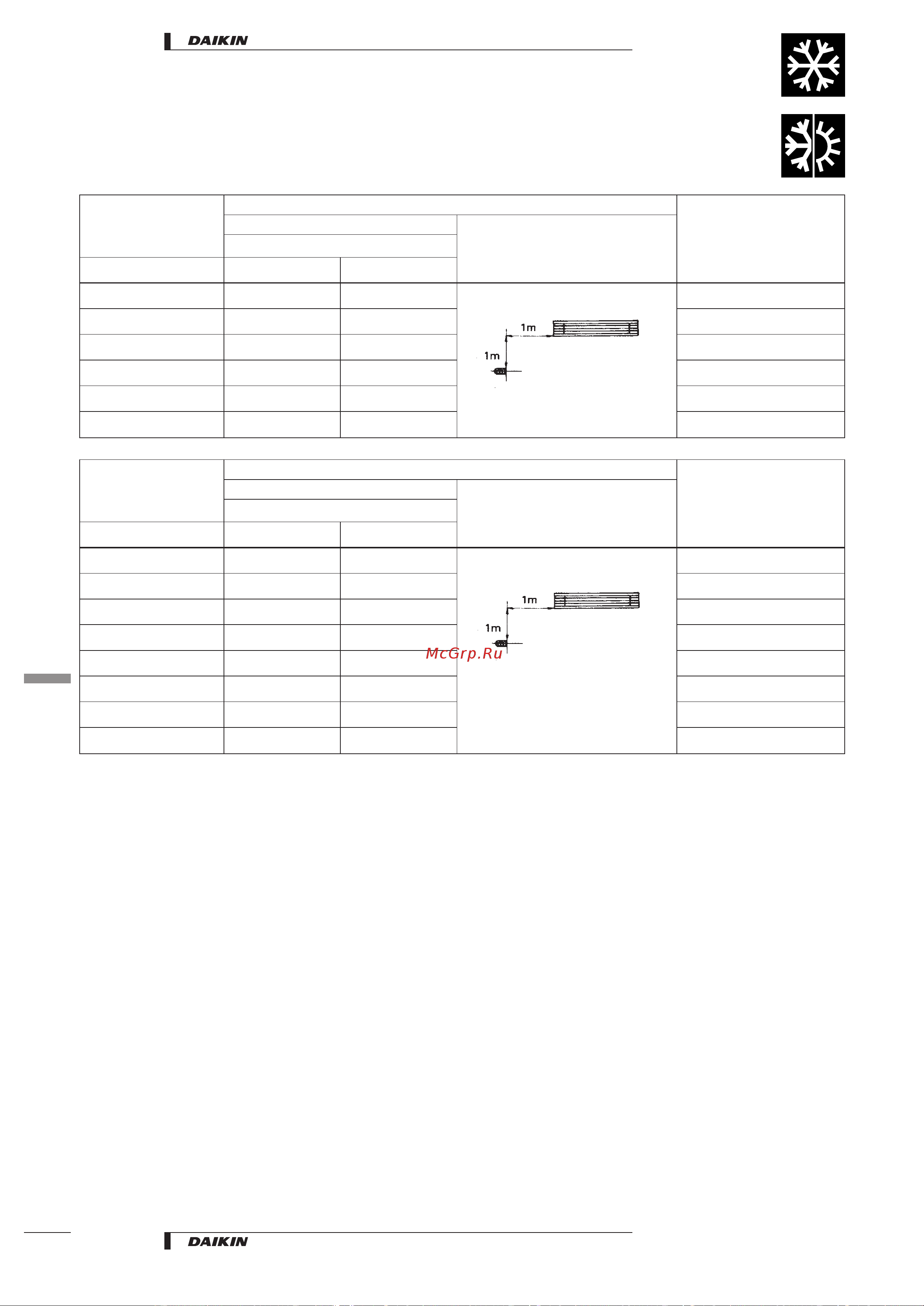

Daikin FH35BZV1 [18/26] Sound level
![Daikin FH35BZV1 [18/26] Sound level](/views2/1779625/page18/bg12.png)
6
Sound level
6-1
Sound level data
Model
Sound pressure level
Sound power level (H)
(cooling)
230V
Measuring location
50Hz
Cooling only H L
FH35BZ 37 32 53
FH45BZ 38 33 54
FH60BZ 38 33 54
FHYP71B 39 35 55
FHYP100B 42 37 58
FHYP125B 44 39 60
Model
Sound pressure level
Sound power level (H)
(cooling/heating)
230V
Measuring location
50Hz
Heat pump H (cooling/heating) L (cooling/heating)
FHY35GZ7 38/38 33/33 54/54
FHY45GZ7 39/39 34/34 55/55
FHYP35B 37/37 32/32 53/53
FHYP45B 38/38 33/33 54/54
FHYP60B 38/38 33/33 54/54
FHYP71B 39/39 35/35 55/55
FHYP100B 42/42 37/37 58/58
FHYP125B 44/44 39/39 60/60
Microphone
Microphone
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B
10
6
6-1
16
• Split - Sky Air • Indoor Units
