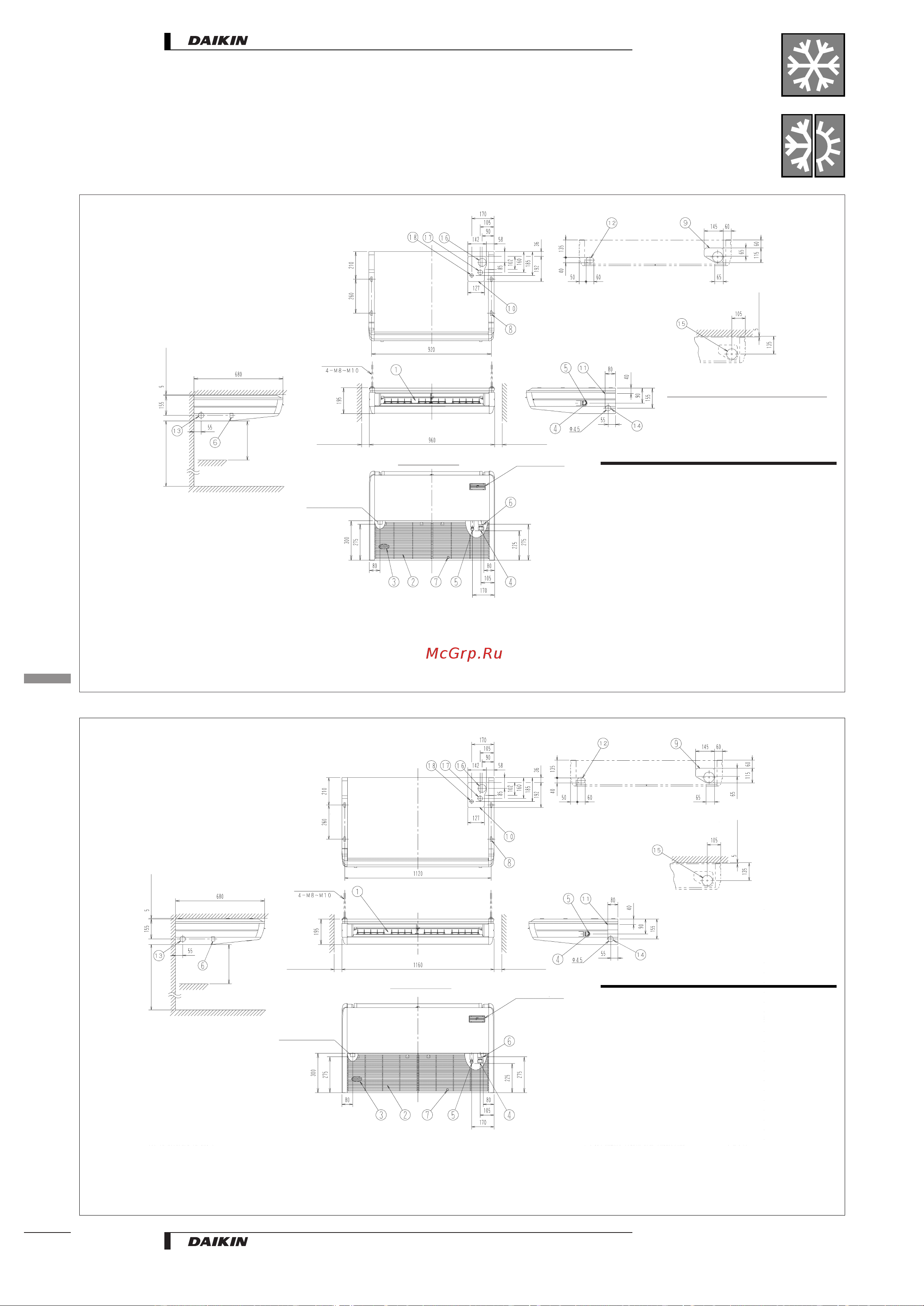

Daikin FH35BZV1 [12/26] Dimensional drawings
![Daikin FH35BZV1 [12/26] Dimensional drawings](/views2/1779625/page12/bgc.png)
FH45BZV1
View from the front
780 From the floor side 2500 or more
(Required space)
Note:
1. Location of unit’s name plate: bottom of fan housing inside the
suction grille.
2. In case of using infrared remote control, this position will be a signal
receiver. Refer to the drawing of infrared remote control in detail.
3. The remote control code is the standard (about 3m outside the
machine) attached.
(0.5 mm
2
x 2 Wicks x O.D. J5.4)
(It is not attached in VRV.)
1 Air discharge grille
2 Air suction grille
3 Air filter
4 Gas pipe connection J15.9 flare
5 Liquid pipe connection J6.4 flare
6 Drain pipe connection VP20
7 Earth terminal (inside the electric components box) M4
8 Suspension bracket
9 Backward piping and wiring connection opening lid
10 Upward piping and wiring connection opening lid
11 Right side pipe connection - slit hole
12 Left back drain pipe connection - slit hole
13 Right side drain pipe connection - slit hole
14 Right side drain piping connection hole- slit hole
15 Hole of wall for taking out in piping back J100
16 Upward drain pipe connection J60
17 Upward gas pipe connection J36
18 Upward liquid pipe connection J26
Position: hole of wall for taking out in piping back
For height installation
Floor side
300or more
Brand name plate
(For left piping)
30 or more
30 or more
(Service space)
(View from the front)
(Hanging position)
Hanging bolt
Position slit hole for taking out in piping back
3D028600
Drain pipe connection
VP20
Obstacle
(Service space)
(View from the front)
(Hanging position)
(Required space)
(Required space)
(Note 2)
FH60BZV1
View from the front
780 From the floor side 2500 or more
(Required space)
Note:
1. Location of unit’s name plate: bottom of fan housing inside the
suction grille.
2. In case of using infrared remote control, this position will be a signal
receiver. Refer to the drawing of infrared remote control in detail.
3. The remote control code is the standard (about 3m outside the
machine) attached.
(0.5 mm
2
x 2 Wicks x O.D. J5.4)
(It is not attached in VRV.)
1 Air discharge grille
2 Air suction grille
3 Air filter
4 Gas pipe connection J15.9 flare
5 Liquid pipe connection J6.4 flare
6 Drain pipe connection VP20
7 Earth terminal (inside the electric components box) M4
8 Suspension bracket
9 Backward piping and wiring connection opening lid
10 Upward piping and wiring connection opening lid
11 Right side pipe connection - slit hole
12 Left back drain pipe connection - slit hole
13 Right side drain pipe connection - slit hole
14 Right side drain piping connection hole- slit hole
15 Hole of wall for taking out in piping back J100
16 Upward drain pipe connection J60
17 Upward gas pipe connection J36
18 Upward liquid pipe connection J26
Position: hole of wall for taking out in piping
back
For height installation
Floor side
300or more
Brand name plate
(For left piping)
30 or more
30 or more
(Service space)
(View from the front)
(Hanging position)
Hanging bolt
Position slit hole for taking out in piping back
3D027537
Drain pipe connection
VP20
Obstacle
(Service space)
(View from the front)
(Hanging position)
(Required space)
(Required space)
(Note 2)
