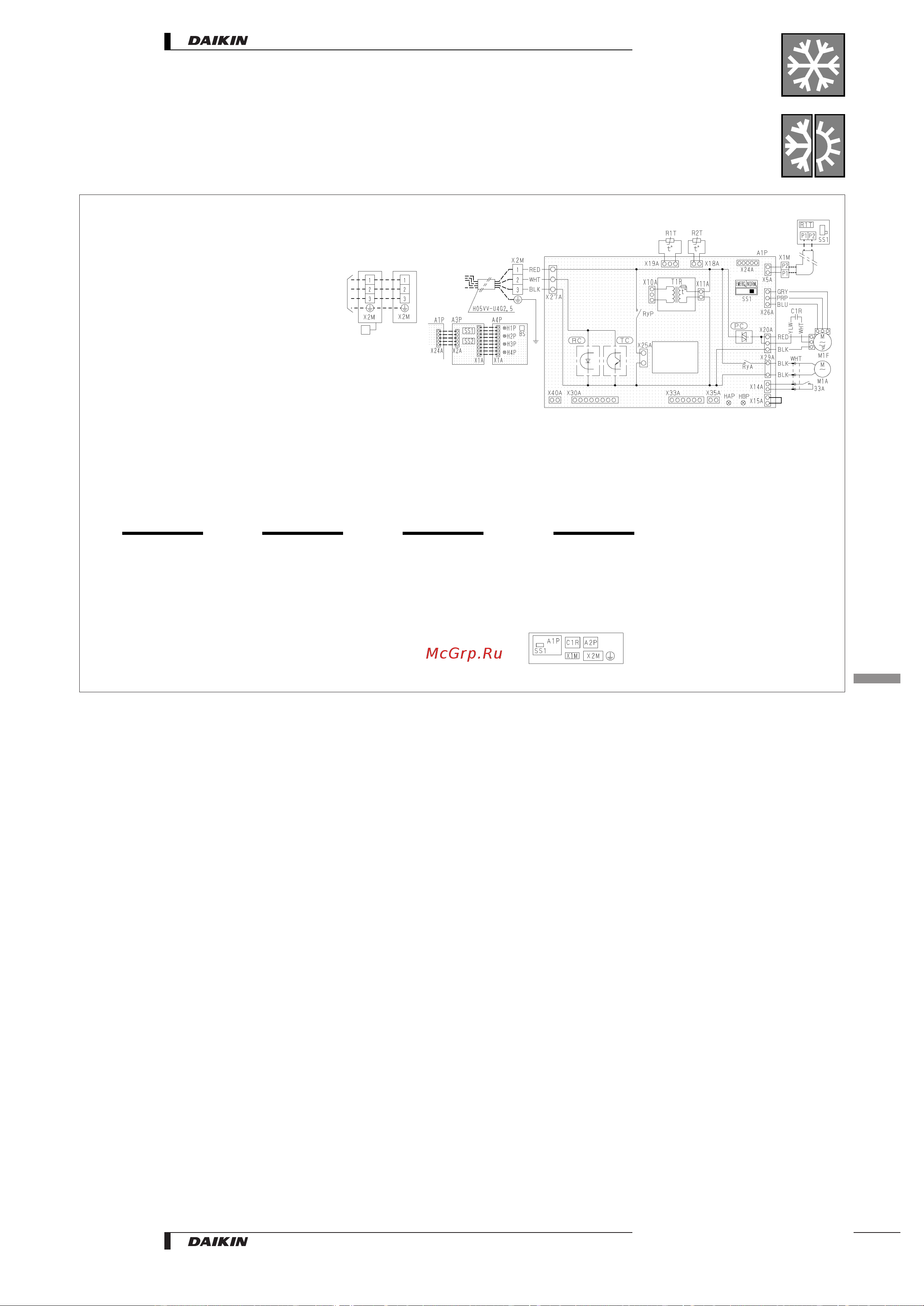

Daikin FH35BZV1 [17/26] Indoor unit master indoor unit slave

Daikin FH35BZV1 [17/26] Indoor unit master indoor unit slave
3D027503-1
FHYP35125BV1
1-RED, 2-WHITE, 3-BLACK
33A Limit switch (swing flap)
A1P Printed circuit board
C1R Capacitor (M1F)
HAP Light emitting diode (service monitor green)
HBP Light emitting diode (service monitor green)
M1A Motor (swing flap)
M1F Motor (indoor fan)
Q1F Thermo switch (M1F embedded)
R1T Thermistor (air)
R2T Thermistor (coil)
RyA Magnetic relay (M1A)
RyP Magnetic relay (M1P)
SS1 Selector switch (emergency)
T1R Transformer
X1M Terminal strip
X2M Terminal strip
? Signal receiver circuit
. Signal transmission circuit
= Phase control circuit
Wired remote control
R1T Thermistor (air)
SS1 Selector switch (main/sub)
Infrared remote control
Receiver / display unit
A3P Printed circuit board
A4P Printed circuit board
BS Push button (on/off)
H1P Light emitting diode (service monitor red)
H2P Light emitting diode (service monitor green)
H3P Light emitting diode (service monitor red)
H4P Light emitting diode (service monitor orange)
SS1 Selector switch (main/sub)
SS2 Selector switch (wireless address set)
Connector for optional parts
X15A Connector (float switch)
X25A Connector (drain pump)
X30A Connector (interface adaptor for sky air series)
X33A Connector (adaptor for wiring)
X35A Connector (group control adaptor)
X40A Connector
ON/OFF input from outside
Switch box
To outdoor
unit
Note) 4
Wired remote
control
In case of simultaneous
operation system.
To outdoor unit
Notes
1. D : Terminal F, H: Connector
b: Protective earth (screw)
2. B: Field wiring
3. In case using central remote controller, connect it to the
unit in accordance with the attached instruction manual.
4. X24A is connected when the remote controller kit is
being used.
5. Remote controller model varies according to the
combination system, confirm technical materials and
catalogs, etc. before connecting.
6. Symbols show as follows Red:red, Blk:black, Ylw:yellow,
Org:orange, Gry:gray, Prp:purple, Blu:blue
7. Confirm the method of setting the selector switch (SS1,
SS2) by installation manual and engeneering materials,
etc.
Receiver / display unit
Indoor unit
(master)
Indoor unit
(slave)
Remote
controller
Note) 6
Note) 6
Note) 4
