Daikin FH35BZV1 [15/26] Piping diagrams
![Daikin FH35BZV1 [15/26] Piping diagrams](/views2/1779625/page15/bgf.png)
4

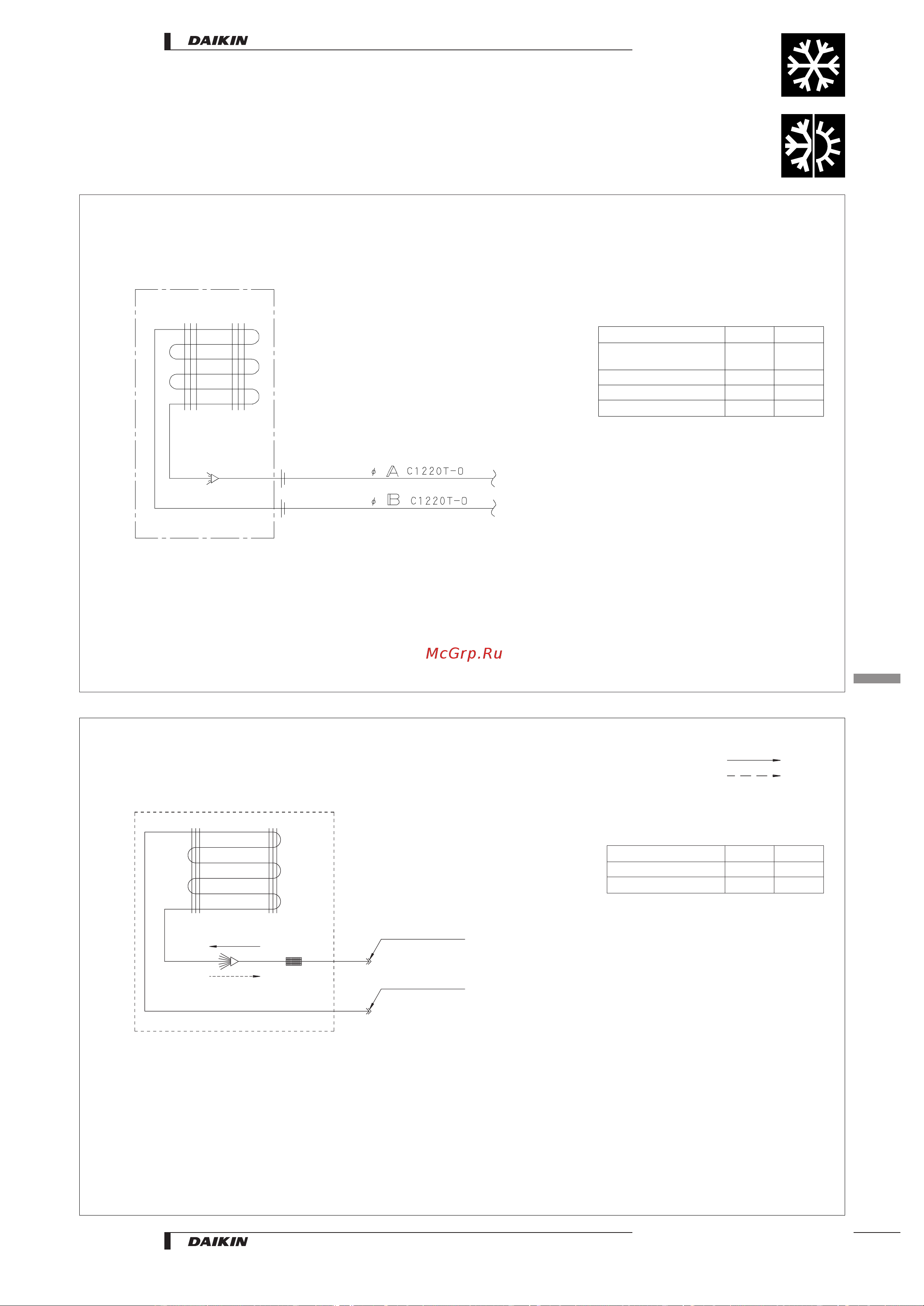

Piping diagrams
O Check valve L Flare connection M Screw connection N Flange connection Z Pinched pipe P Spinned pipe
Indoor heat exchanger
Field piping
4D024085A
FH35∼60BZ
FHYP35∼125B
Field piping
Refrigerant pipe connection port diameters
Model A B
FHYP35-45BV1
FH35BZV1
6.4 12.7
FH45-60BZV1 6.4 15.9
FHYP60-71BV1 9.5 15.9
FHYP100-125BV1 9.5 19.1
To outdoor unit
Indoor unit
O Check valve L Flare connection M Screw connection N Flange connection Z Pinched pipe P Spinned pipe
Heat exchanger
Refrigerant flow
Cooling
Heating
Liquid pipe connection port
3TW20435-1E
FHY35∼45GZ
Gas pipe connection port
Filter
Refrigerant pipe connection port diameters
Model Gas Liquid
FHY35GZ J12.70 J6.35
FHY45GZ J15.90 J6.35
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B
10
4
13
• Split - Sky Air • Indoor Units
