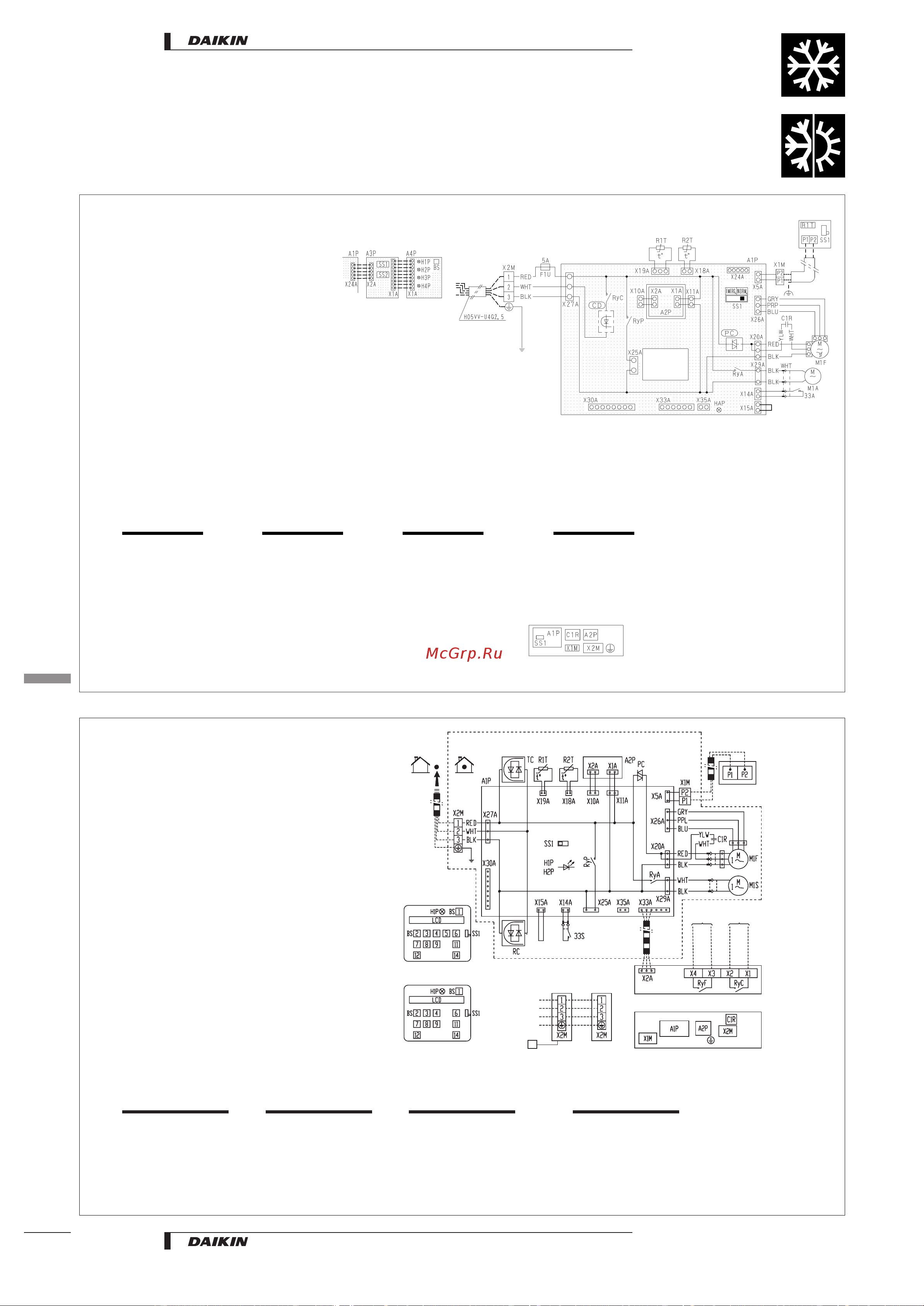

Daikin FH35BZV1 [16/26] Wiring diagrams
![Daikin FH35BZV1 [16/26] Wiring diagrams](/views2/1779625/page16/bg10.png)
5
Wiring diagrams
3D027501-1
FH35∼60BZ
1-RED, 2-WHITE, 3-BLACK
33A Limit switch (swing flap)
A1P Printed circuit board
A2P Printed circuit board
(Transformer 220-240V/16V)
C1R Capacitor (M1F)
F1U Fuse (250V,5A)
HAP Light emitting diode (service monitor green)
M1A Motor (swing flap)
M1F Motor (indoor fan)
Q1F Thermo switch (M1F embedded)
R1T Thermistor (air)
R2T Thermistor (coil)
RyA Magnetic relay (M1A)
RyC Magnetic relay (outdoor unit compressor)
RyP Magnetic relay (M1P)
SS1 Selector switch (emergency)
X1M Terminal strip
X2M Terminal strip
+ Current detect circuit
= Phase control circuit
Wired remote control
R1T Thermistor (air)
SS1 Selector switch (main/sub)
Infrared remote control
Receiver / display unit
A3P Printed circuit board
A4P Printed circuit board
BS Push button (on/off)
H1P Light emitting diode (service monitor red)
H2P Light emitting diode (service monitor green)
H3P Light emitting diode (service monitor red)
H4P Light emitting diode (service monitor orange)
SS1 Selector switch (main/sub)
SS2 Selector switch (wireless address set)
Connector for optional parts
X15A Connector (float switch)
X25A Connector (drain pump)
X30A Connector (interface adaptor for sky air series)
X33A Connector (adaptor for wiring)
X35A Connector (group control adaptor)
Switch box
To outdoor
unit
Note) 4
Wired remote
control
Note) 4
Notes
1. D : Terminal F, H: Connector
b: Protective earth (screw)
2. B: Field wiring
3. In case using central remote controller, connect it to the
unit in accordance with the attached instruction manual.
4. X24A is connected when the remote controller kit is
being used.
5. Remote controller model varies according to the
combination system, confirm technical materials and
catalogs, etc. before connecting.
6. In case installing the drain pump, remove the jumper
connector of X15A and execute the additional wiring for
float switch and drain pump.
7. Ground the shield of the remote controller cord to the
indoor unit of the FH-BVE type.
8. Symbols show as follows Red:red, Blk:black, Ylw:yellow,
Org:orange, Gry:gray, Prp:purple, Blu:blue
9. Confirm the method of setting the selector switch (SS1,
SS2) by installation manual and engeneering materials,
etc.
Receiver / display unit
Note) 6
Note) 6
Note) 7
2TW21006-1C
FHY35∼45GZ7V1
33S Limit switch (swing flap)
A1P Printed circuit board
A2P Printed circuit board (transformer 220-240V/16V)
C1R Capacitor (fan)
H1P,H2P Light emitting diode
M1F Motor
M1S Motor
Q1F Thermo switch (M1F embedded)
R1T Thermistor (air)
R2T Thermistor (coil)
RyA Magnetic relay (swing flap)
RyP Magnetic relay (drain pump)
SS1 Selector switch (emergency)
X1M,X2M Terminal strip
PC Phase control circuit
RC Signal receiver
TC Signal transmission circuit
Connector for optional parts
X15A Connector (float switch)
X25A Connector (drain pump)
X30A Connector (interface adaptor for sky air series)
X33A Connector (adaptor for wiring)
X35A Connector (group control adaptor)
Infrared remote control
BS1 On/Off button
BS2 Timer mode start/stop button
BS3,BS8 Programming time button
BS4,BS9 Temperature setting button
BS5 Air flow direction adjust button
BS6 Operation mode selector button
BS7 Timer on/off button
BS11 Fan speed control button
BS12 Inspection/test operation button
BS14 Filter sign reset button
H1P Light emitting diode (service monitor red)
LCD Liquid crystal display (LCD)
SS1 Selector switch (main/sub)
Adaptor for wiring
RyC,RyF Magnetic relay
Outdoor
Wired remote
control
Terminals for operation
indicator
Fan operation
compressor operation
Notes
1. Use copper conductors only.
2. When using the central remote control, see
manual for connection to the unit.
3. The remote controller model varies according to
the combination system.
4. When installing the drain pump, remove the
jumper wire of X15A and make the additional
wiring for the float switch and the drain pump.
5. M1S and 33S are only attached to the indoor unit
of the heat pump type
g Field wiring D Terminal
a : Connector
c : Wire clamp
b : Protective earth (screw)
Colours
BLK: Black/ PPL: purple/ BLU: Blue/
WHT: White/ RED: Red/ GRN: green/
GRY: grey/ YLW:Yellow
Indoor
Note 4
Note 5
Details of wired remote control
(optional accessory)
(for heat pump type)
(for cooling only
type)
Adaptor for wiring
Switch box
Simultaneous operation system
Outdoor unit
Remote control
(master)
(slave)
• Ceiling Suspended Unit • R-407C • FH(Y)-GZ/BZ/FHYP-B
10
5
14
• Split - Sky Air • Indoor Units
