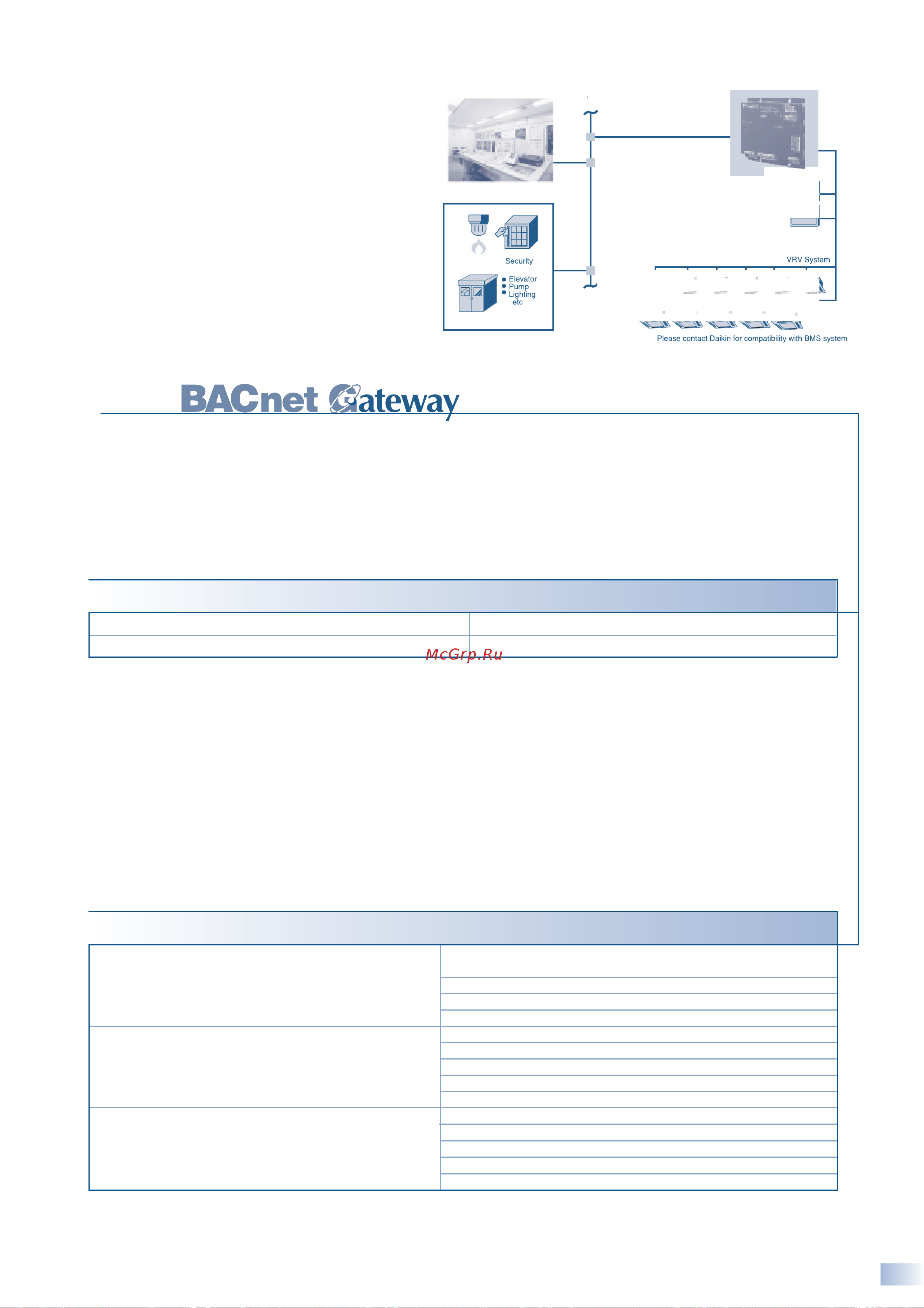

FEATURES
• Interface for BMS system
• Communication via BACnet protocol
(connection via Ethernet or RS232C)
• 256 units connectable per BACnet gateway
• Unlimited site size
• Easy and fast installation
B
A
Cnet
A
C
A
over ethernet
Local
Controller
BMS
Power supply facility
Fire alarm
...
12
BACKGROUND
Bacnet Gateway is an integrated control system that connects a VRV system to a BMS system
Note :
If exceeding the stated number of outdoor units, DIII-NET expander adapter (DTA109A51) allows easy system connection as long as restrictions are observed.
FUNCTIONS
Monitoring Air conditioning status monitoring : 64 groups of indoor units and 10 outdoor units
(Max. 256 groups of indoor units and 40 outdoor units, when optional DIII board is added) (cf. note)
Indoor unit error monitoring
Indoor (air inlet) temperature monitoring
Filter sign monitoring
Control, operation and setting Start/Stop control
Temperature adjustment mode setting
Remote control setting
Temperature setting
Filter sign reset
Display Air conditioner operation setting and status
Set temperature
Indoor unit error
Indoor (air inlet) temperature
Filter sign
MODEL RANGE
BACnet Gateway DMS502A51
DIII board DAM411A1
