43
13 EUW5-72HZW1

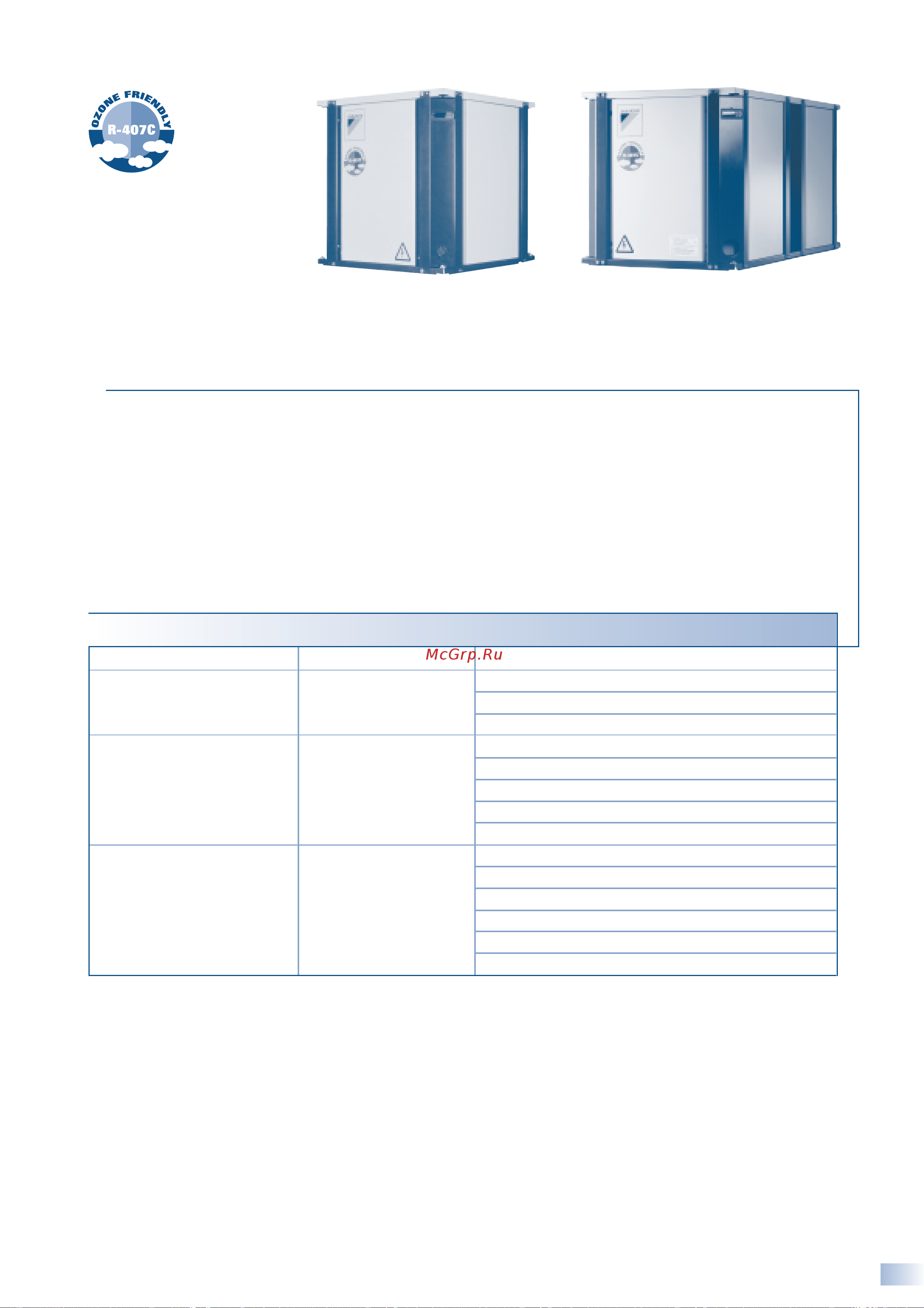

Water-cooled chillers using R-407C
BACKGROUND
In order to offer even more possibilities, we are pleased to introduce our new range of small
watercooled chillers, the EUW5-72HZ. These chillers do not only replace the old EUW5-20F range,
but also allow Daikin to enter a new market not covered until now.
EUW5-8-10-12HZ Basic model
EUW16-20-24HZ
Single module
EUW16HZ = 1 x EUWN16HZ + ECB1MUW
EUW20HZ = 1 x EUWN20HZ + ECB1MUW
EUW24HZ = 1 x EUWN24HZ + ECB1MUW
EUW32-36-40-44-48HZ Double module
EUW32HZ = 2 x EUWN16HZ + ECB2MUW
EUW36HZ = 1 x EUWN16HZ + 1 x EUWN20HZ + ECB2MUW
EUW40HZ = 2 x EUWN20HZ + ECB2MUW
EUW44HZ = 1 x EUWN20HZ + 1 x EUWN24HZ + ECB2MUW
EUW48HZ = 2 x EUWN24HZ + ECB2MUW
EUW52-56-60-64-68-72HZ Triple module
EUW52HZ = 2 x EUWN16HZ + 1 x EUWN20HZ + ECB3MUW
EUW56HZ = 2 x EUWN20HZ + 1 x EUWN16HZ + ECB3MUW
EUW60HZ = 3 x EUWN20HZ + ECB3MUW
EUW64HZ = 2 x EUWN20HZ + 1 x EUWN24HZ + ECB3MUW
EUW68HZ = 2 x EUWN24HZ + 1 x EUWN20HZ + ECB3MUW
EUW72HZ = 3 x EUWN24HZ + ECB3MUW
MODEL RANGE
FEATURES
• Daikin scroll compressor
• Optimised design for use with R-407C refrigerant
• Low operating sound level
• Electronic DDC controller
• Low energy consumption
• Compact dimensions and low refrigerant volume
• Easy installation and maintenance
• Stainless steel plate heat exchanger
• Remote cooling or heating selection
• Water/water heat pump, with water reversibility
• Compatible with hydraulic module
EUW16-24HZW1
EUW5-12HZW1
00225•New products•01-12 09-11-2001 11:18 Pagina 44
