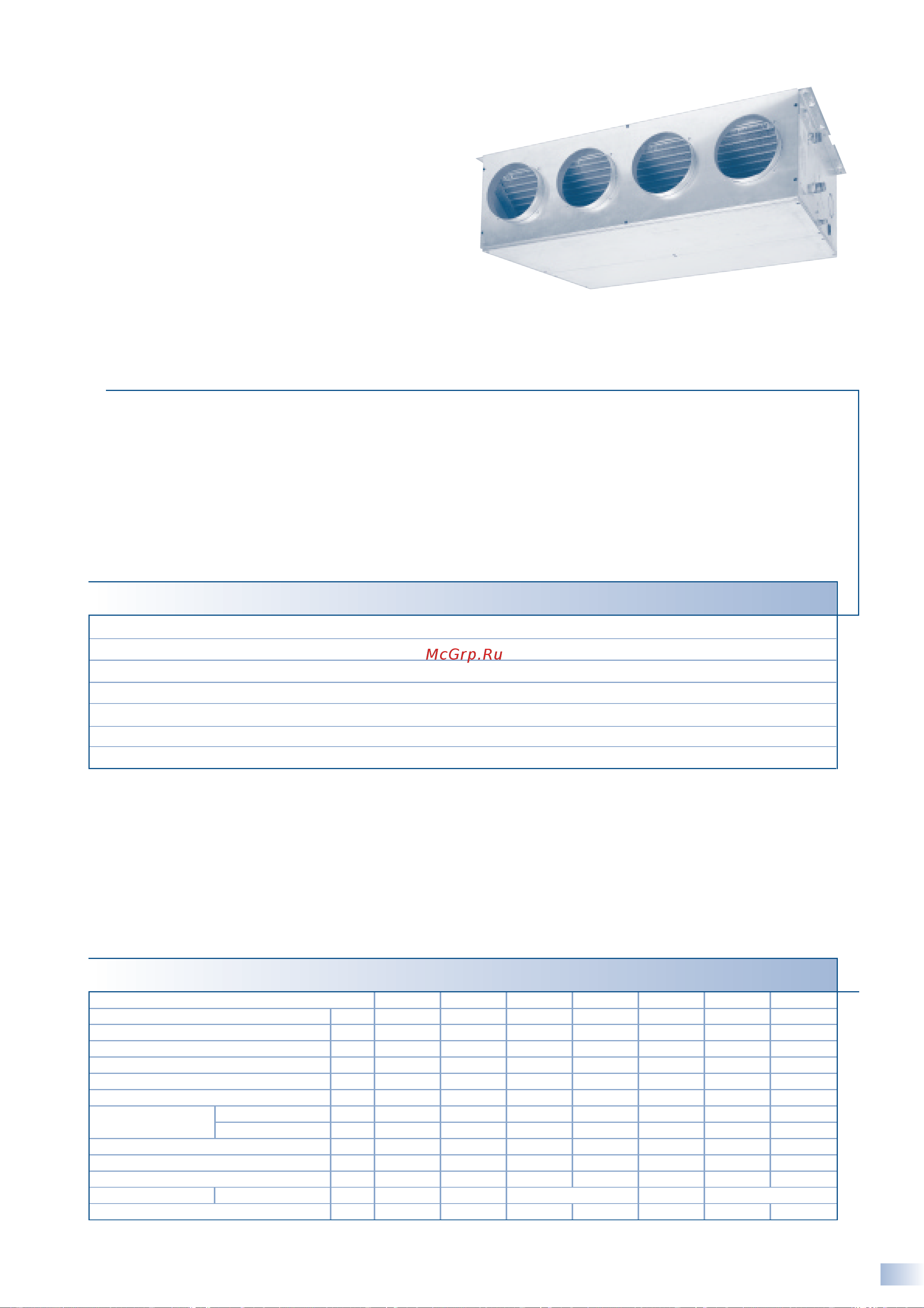

55
19 FWD4-18A(F)6V1
BACKGROUND
Next spring, to expand the range of existing duct units (FWM), Daikin will introduce a range of
high ESP fan coil units.
FWD4A(F)6V1
FWD6A(F)6V1
FWD8A(F)6V1
FWD10A(F)6V1
FWD12A(F)6V1
FWD16A(F)6V1
FWD18A(F)6V1
MODEL RANGE
FEATURES
• extension of the range up to 18.3 kW cooling capacity
• external static pressure from 90 Pa (FWD4) to 185 Pa (FWD18)
• standard filter
• low height
• small dimensions
• low noise levels
FWD12A(F)6
Concealed ceiling unit
SPECIFICATIONS
FWD-A(F)6V1
Total cooling capacity kW
Sensible capacity kW
Heating capacity (2-pipe) kW
Heating capacity (4-pipe) kW
Maximum power input W
Available static pressure Pa
Water flow rate (2-pipe) cooling l/h
heating l/h
Water flow rate (4-pipe) l/h
Air flow rate m
3
/h
Sound power level dBA
Dimensions HxWxD mm
Weight kg
4 6 8 10 12 16 18
3.9 6.2 7.8 8.82 11.9 16.4 18.3
3.08 4.65 6.52 7.36 9.36 12.8 14.3
10.1 16.1 19.6 22.4 30.0 40.9 45.0
5.63 8.24 11.5 11.5 19.7 26.2 26.2
250 410 500 500 700 1,100 1,100
90 88 100 95 130 205 185
674 1,071 1,469 1,659 2,056 2,833 3,162
872 1,391 1,840 2,116 2,592 3,533 3,887
968 1,417 1,978 1,978 3,388 4,490 4,490
800 1,250 1,600 1,600 2,200 3,000 3,000
66 69 72 72 74 78 78
280x754x559 280x964x559 280x1,174x559 352x1,174x718 352x1,384x718
32.5 40.6 47.3 48.7 65.3 77 79.5
