SiENBE28-901 Troubleshooting
Air Cooled Refrigeration Condensing Unit 129

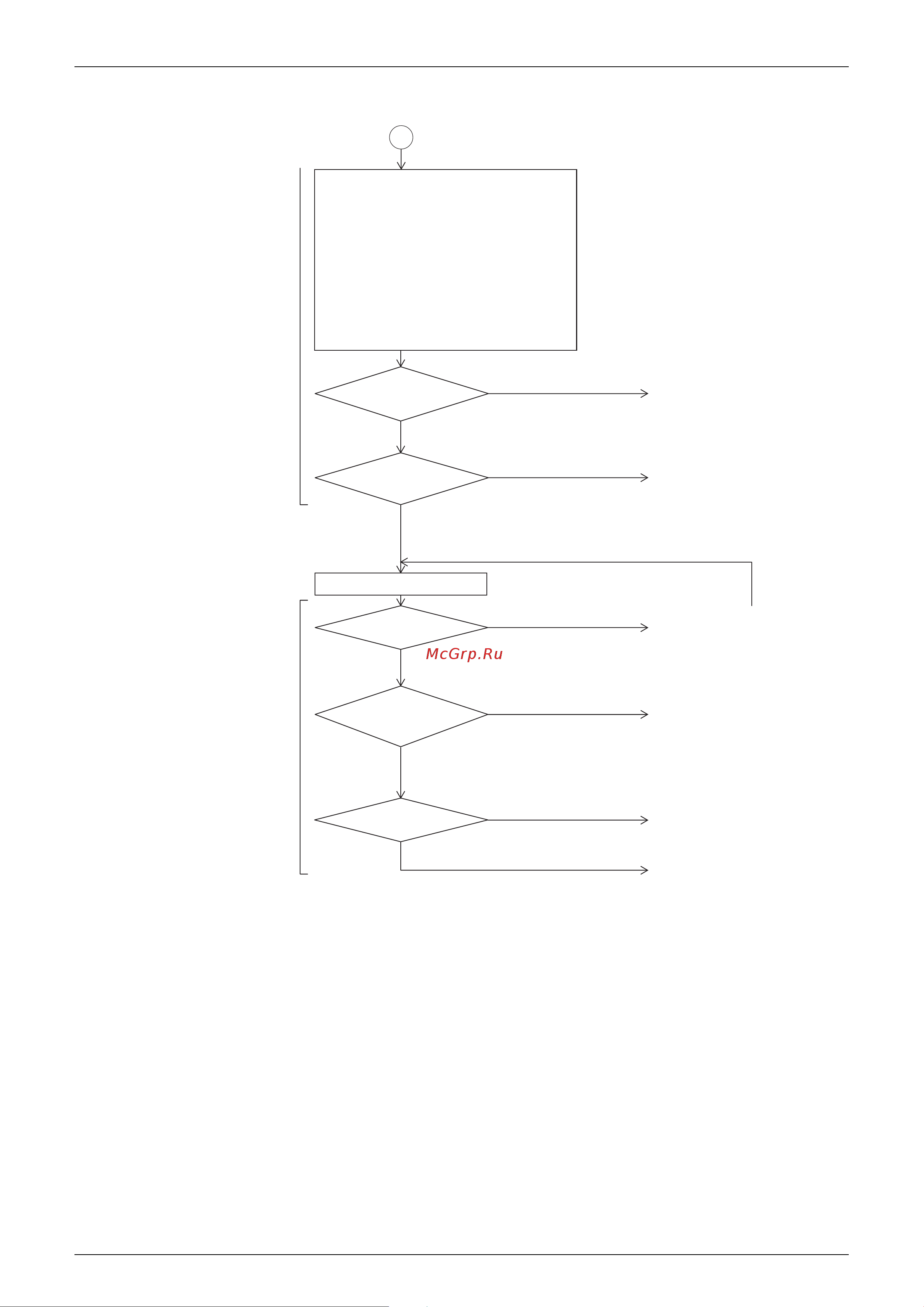

Check for connector connections: Remove and
insert the connectors shown below.
Furthermore, check the connectors for terminal
conditions and continuity.
RXQPAY1:
• X1M power receiving terminal ⇔ X400A A2P
• A2P X401A ⇔ X10A A3P
• A1P X28A ⇔ X6A A3P
• A3P X61A ⇔ X402A A2P
• A3P X1A ⇔ X403A A2P
• A3P P1, P2 ⇔ Reactor terminal L1R
• A3P P3, N3 ⇔ P1, N1 A4P
• A4P P2, N2 ⇔ P1, N1 A8P
A
NO
If any wiring has damage, replace
the harness.
Power OFF
Power ON
Has the inverter PCB
caused damage?
Has the fan driver
caused damage?
Turn ON the power supply.
Stop (standby) before the
fan rotates.
Stop (standby) when
the compressor starts
up.
The
“
U2
”
malfunction
recurs.
NO
NO
NO
NO
YES
YES
YES
YES
YES
A3P: Replace the inverter PCB.
∗ If the PCB replaced is badly
damaged, the compressor is
likely to get faulty. To make sure,
recheck the compressor.
A4P/A8P: Replace the fan driver
PCB.
∗ If the PCB replaced is badly
damaged, the fan motor is likely
to get faulty. To make sure,
recheck the compressor.
Recheck for the power supply. If
there is no problem with the power
supply, replace the A2P noise filter
PCB.
If the malfunction recurs, replace
the inverter PCB.
Recheck for the power supply. If
there is no problem with the power
supply, replace the A3P inverter
PCB.
∗ If the PCB replaced is badly
damaged, compressor is likely to
get faulty. To make sure, recheck
the compressor.
Check the harness, and then
replace it if necessary.
End of measures:
I The malfunction may temporarily
result from onsite causes.
Causes: Instantaneous power
failure (open phase), noises, or
else.
