Standard Specification SiENBE28-901
18 Air Cooled Refrigeration Condensing Unit

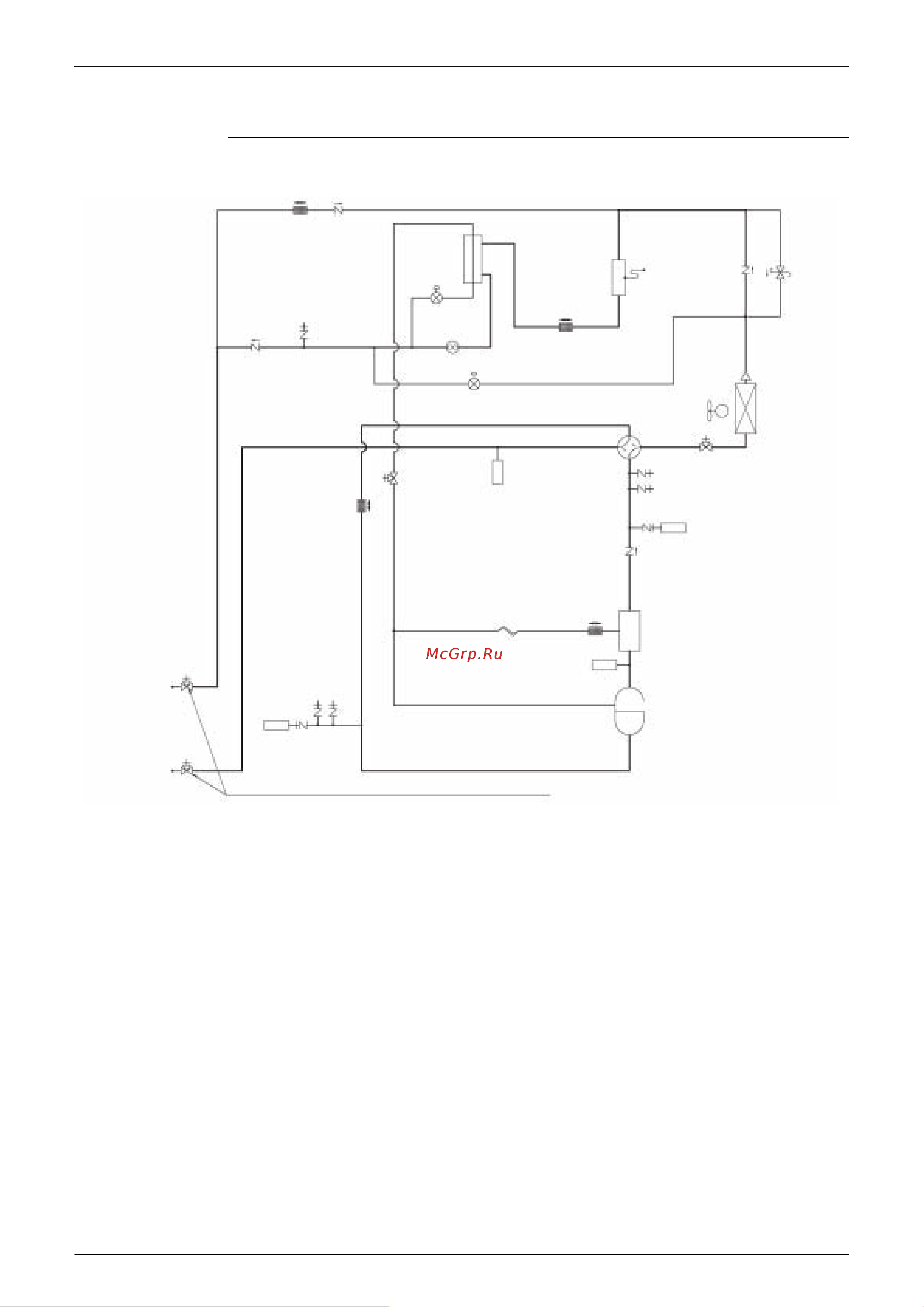

2.5 Piping Diagram
LRLEQ5A, 6AY1(E)
LRMEQ5A, 6AY1(E)
FILTER CHECK VALVE
DOUBLE PIPE
HEAT EXCHANGER
SERVICE PORT
CHECK VALVE
ELECTRONIC
EXPANSION
VALVE
SIGHT GLASS
ELECTRONIC
EXPANSION
VALVE
FILTER
RECEIVER
FUSIBLE
PLUG
CHECK VALVE
PRESSURE
REGULATING
VALVE
FAN
M
HEAT EXCHANGER
FILTER
STOP VALVE
HIGH PRESSURE
SWITCH
(DEFROST)
FOUR WAY VALVE
STOP VALVE
SERVICE PORT
GAUGE PORT
HIGH PRESSURE SENSOR
SENPH
HPS
CHECK VALVE
FILTER
CAPILLARY
TUBE
OIL
SEPARATOR
HIGH PRESSURE
SWITCH
HPS
COMPRESSOR
INV
LOW PRESSURE
SENSOR
SENPL
GAUGE PORT
SERVICE PORT
LIQUID PIPE
φ9.5 C1220T
GAS PIPE
φ19.1 C1220T
STOP VALVE (WITH SERVICE PORT φ7.9mm FLARE CONNECTION)
3D064606A
CHECK VALVE
