Description of Functions and Operation SiENBE28-901
44 Air Cooled Refrigeration Condensing Unit

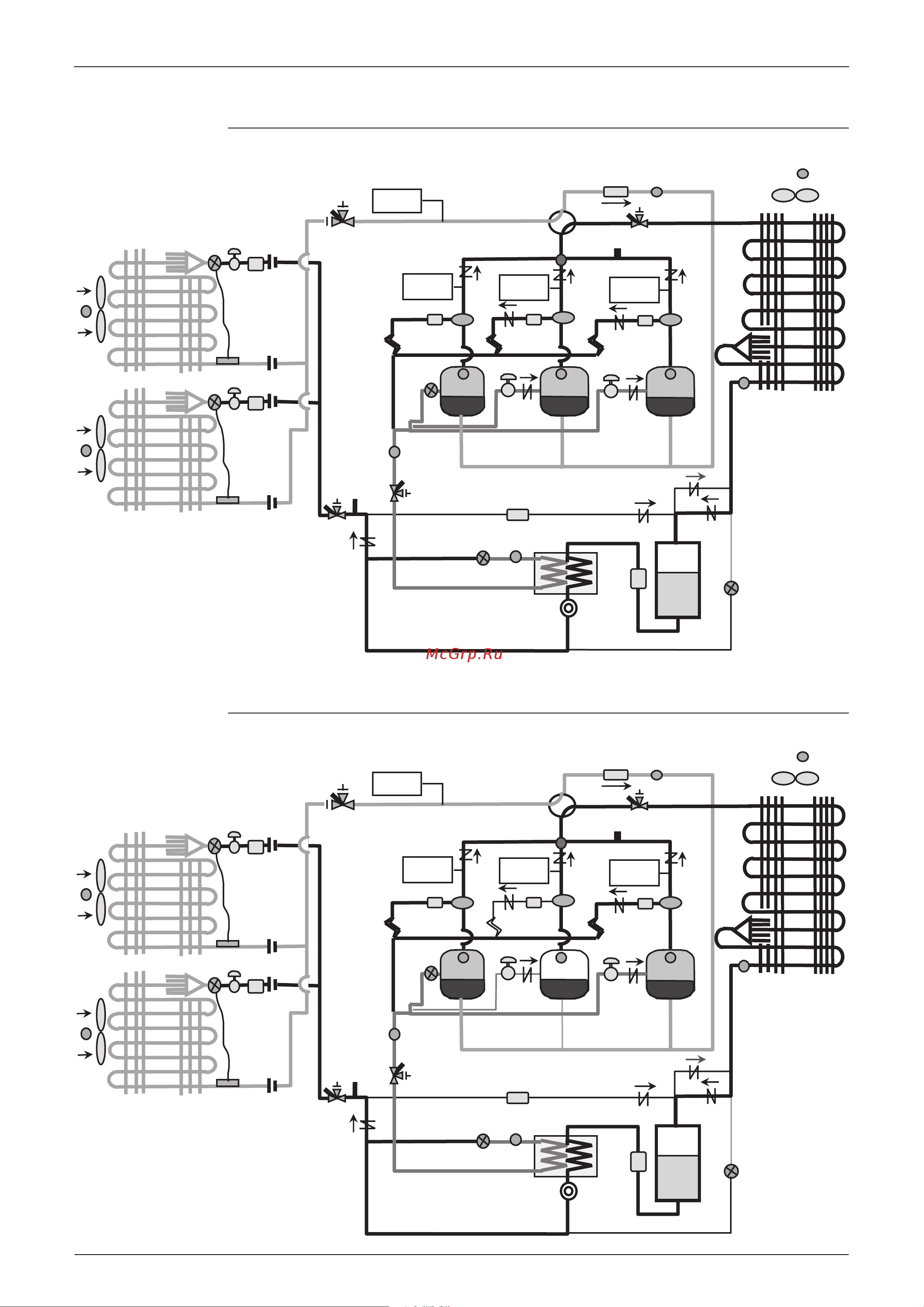

3) Operation Mode 3
<In case of 3 compressors>
4) Operation Mode 4
<In case of 3 compressors>
HPSL
HPS1 HPS2
HP
Td1 Td2
EV3
SV2
INV STD1
Tg
EV2
TL
EV1
Tce
Ta
HPS3
Td3
SV3
STD2
Ti
HPSL
HPS1 HPS2
HP
Td1 Td2
EV3
SV2
INV STD1
Tg
EV2
TL
EV1
Tce
Ta
HPS3
Td3
SV3
STD2
Ti
